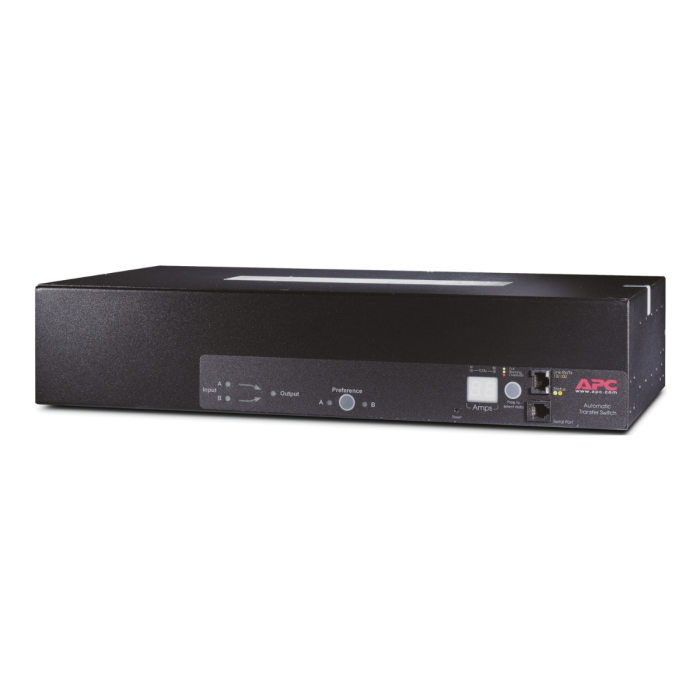

APC AP7732 Rack Automatic Transfer Switch 2U 30A 208V, Output:(16)C13, (2)C19 - Refurb

Manufacturer: APC
Model: AP7732
Model Description: APC Rack Automatic Transfer Switch (ATS), 2U, 30A, 200V/208V, Dual L6-30P Input, (16) C13 + (2) C19
Condition: Refurbished
Part Number: AP7732
Input Voltage: 200V / 208V / 230V AC
Input Connections: (2) NEMA L6-30P
Output Voltage: 200V / 208V AC
Output Connections: (16) IEC 60320 C13, (2) IEC 60320 C19
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Description: The APC AP7732 is a 2U rackmount Automatic Transfer Switch (ATS) designed to provide redundant power for single-corded servers, networking equipment, and other critical IT devices. It uses two AC input power sources and automatically transfers the connected load between sources to maintain power availability. The AP7732 supports 200V, 208V and 230V input, features dual NEMA L6-30P input power cords, and provides (16) IEC C13 and (2) IEC C19 output receptacles. It supports a maximum line current of 30A and a rated input current of 24A.

APC AP7732 Rack Automatic Transfer Switch, 2U, 30A, 208V - User's Manual

AP7732 - APC Rack Automatic Transfer Switch  Specifications:

Main
Manufacturer	APC
Model	AP7732
Product Type	Rack Automatic Transfer Switch (ATS)
Product Family	APC Rack ATS
Form Factor	Rackmount
Rack Height	2U
Main Input Voltage	200V / 208V / 230V
Main Output Voltage	200V / 208V
Input Connection Type	NEMA L6-30P
Number of Input Power Cords	2
Output Connections	(16) IEC 60320 C13, (2) IEC 60320 C19
Network Frequency	50/60 Hz
Rated Input Current	24A
Maximum Line Current	30A
Maximum Current Draw	30A
Protection Type	Without Circuit Breaker
Condition	Refurbished
Warranty	1 Year Full Replacement Warranty
Additional Warranty	Available
Input
Nominal Input Voltage	200V / 208V / 230V AC
Input Configuration	Dual Input
Number of AC Inputs	2
Input Connection Type	NEMA L6-30P
Input Connections	(2) NEMA L6-30P
Input Frequency	50/60 Hz
Rated Input Current	24A
Maximum Line Current	30A
Input Current Limit	30A
Number of Power Cords	2
Power Cord Length	8 ft (2.4 m) Each
Dual Power Source Support	Yes
Output
Nominal Output Voltage	200V / 208V AC
Maximum Total Current Draw	30A
Total Output Receptacles	18
IEC 60320 C19 Outlets	(2)
IEC 60320 C13 Outlets	(16)
Overload Protection	No
Integrated Circuit Breaker	No
Protection Type	Without Circuit Breaker
Automatic Transfer Switch
Transfer Switch Type	Automatic Transfer Switch (ATS)
Number of Input Sources	2
Dual Power Source Operation	Yes
Source Redundancy	Yes
Automatic Source Transfer	Yes
Preferred Power Source	Supported
Alternate Power Source	Supported
Automatic Failover	Supported
Redundant Power for Single-Corded Equipment	Supported
Application	Servers, Networking & Critical IT Equipment
Communications & Management
ATS Configuration	Supported
Power Source Monitoring	Supported
Preferred Source Configuration	Supported
Alternate Source Monitoring	Supported
Automatic Transfer Monitoring	Supported
Local Configuration	Supported
Serial Configuration	Supported
RS-232 Configuration Interface	Supported
Network Management	Supported
Remote Monitoring	Supported
Web-Based Management	Supported
SNMP Management	Supported
Event Monitoring	Supported
Alarm Monitoring	Supported
User Interface, Alerts & Controls
Local Status Indicators	LED Indicators
Input Source Status	Monitored
Preferred Source Status	Monitored
Alternate Source Status	Monitored
Output Power Status	Monitored
Transfer Status	Monitored
Alarm Indication	Supported
Source Selection	Configurable
ATS Status Monitoring	Supported
Local Configuration Controls	Supported
Physical
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Location	Front / Rear
Mounting Preference	No Preference
Height	3.5 in (8.8 cm)
Width	17.008 in (43.2 cm)
Depth	9.3 in (23.6 cm)
Net Weight	14.3 lb (6.5 kg)
Environmental
Operating Temperature	23–113°F (-5–45°C)
Operating Relative Humidity	5–95%
Operating Altitude	0–10,000 ft (0–3048 m)
Storage Temperature	-13–149°F (-25–65°C)
Storage Relative Humidity	5–95%
Storage Altitude	0–50,000 ft (0–15,240 m)
Conformance
PSE	Certified
TÜV-C	Certified
TÜV-NURTL	Certified
EN 55022	Class A
FCC Compliance	FCC Part 15 Class A
EU RoHS Directive	Compliant by Exemption
WEEE	Applicable
Packaging
Package Type	PCE
Units per Package	1
Package Height	7.2 in (18.4 cm)
Package Width	14.02 in (35.6 cm)
Package Length	24.1 in (61.3 cm)
Package Weight	19.8 lb (9 kg)
