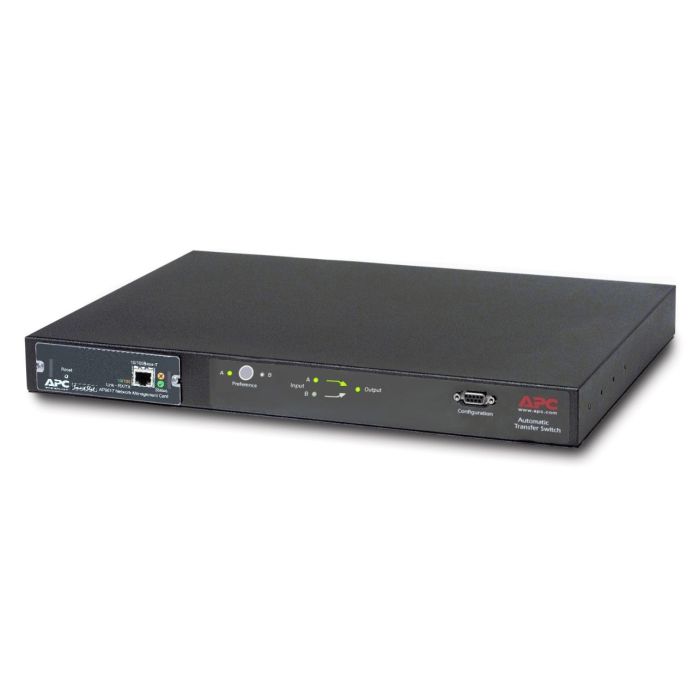

APC AP7750 Automatic Transfer Switch Rack PDU 100-120V 15A, 1U, Output:(8)5-15R - Refurb

Manufacturer: APC by Schneider Electric
Model: APC Rack Automatic Transfer Switch (ATS), 1U, 15A, 100/120V
Condition: Refurbished
Part Number: AP7750
Product Type: Rack Automatic Transfer Switch (ATS)
Input: (2) NEMA 5-15P, 100/120V, 15A
Output: (8) NEMA 5-15R
Output Voltage: 100/120V
Load Capacity: 1440VA
Rated Current: 12A
Maximum Current: 15A
Input Frequency: 50/60 Hz
Power Cords: (2) 7.97 ft (2.43 m)
Form Factor: Horizontal Rackmount, 1U
Power Redundancy: Dual AC Input Sources with Automatic Transfer
Application: Provides redundant power protection for single-corded servers, networking and other critical IT equipment
Warranty: 1 Year Full Replacement Warranty Included

Description: The APC AP7750 is a 1U Rack Automatic Transfer Switch (ATS) designed to provide redundant power for single-corded servers, networking equipment, and other critical IT devices. It features dual AC power inputs and eight NEMA 5-15R outlets, providing a compact 100/120V power distribution solution for data centers, server rooms, and network environments.

APC AP7750 ATS Rack PDU, 1U, 15A, 100V-120V - User Manual

AP7750 - APC ATS Rack PDU Specifications:

General
Manufacturer	APC by Schneider Electric
Model	AP7750
Product Type	Rack Automatic Transfer Switch (ATS)
Application	Redundant Power Distribution for Single-Corded IT Equipment
Form Factor	Rackmount
Rack Height	1U
Nominal Voltage	100V / 120V AC
Load Capacity	1440VA
Color	Black
Automatic Transfer Switch (ATS)
ATS Function	Automatic Transfer Between Two Independent AC Power Sources
Number of Input Sources	2
Primary Power Source	Source A
Secondary Power Source	Source B
Source Redundancy	Dual Input Power Sources
Automatic Source Transfer	Yes
Preferred Source Selection	Supported
Source Monitoring	Monitors Both Input Power Sources
Failover Operation	Transfers Load to Alternate Source if Preferred Source Becomes Unavailable
Typical Application	Provides Power Redundancy to Single-Corded Servers, Network & IT Equipment
Input
Nominal Input Voltage	100V / 120V AC
Permissible Input Voltage	100–125V AC
Number of Inputs	2
Input Connections	(2) NEMA 5-15P
Input Frequency	50/60 Hz
Maximum Input Current	15A
Rated Input Current	12A
Regulatory Derated Input Current	12A
Number of Power Cords	2
Cord Length	7.97 ft (2.43 m) Each
Output
Nominal Output Voltage	100V / 120V AC
Output Connections	(8) NEMA 5-15R
Number of Outlets	8
Maximum Total Current Draw	15A
Load Capacity	1440VA
Communications & Management
Network Management	Integrated
Remote Monitoring	Supported
Web-Based Management	Supported
SNMP Management	Supported
Telnet Management	Supported
Input Source Monitoring	Source A & Source B
ATS Status Monitoring	Supported
Remote Management	Supported
Event & Alarm Monitoring	Supported
Network Configuration	Configurable
Firmware Management	Supported
User Interface & Controls
Front Panel Status Display	Yes
Input Source Status	Source A / Source B
Preferred Source Selection	Supported
ATS Operating Status	Front-Panel Indication
Source Availability Monitoring	Yes
Alarm Indicators	Supported
Manual Source Control	Supported
Physical
Form Factor	Horizontal Rackmount
Rack Height	1U
Height	1.7 in (44 mm)
Width	17.01 in (432 mm)
Depth	9.02 in (229 mm)
Net Weight	9.77 lb (4.43 kg)
Mounting Mode	Rack-Mounted
Mounting Location	Front or Rear
Mounting Preference	No Preference
Color	Black
Environmental
Operating Temperature	23°F to 113°F (-5°C to 45°C)
Storage Temperature	-13°F to 149°F (-25°C to 65°C)
Operating Relative Humidity	0–95%
Storage Relative Humidity	0–95%
Operating Altitude	0–10,000 ft (0–3,048 m)
Storage Altitude	0–50,000 ft (0–15,240 m)
Certifications & Compliance
Product Certifications	cUL Listed, UL Listed, VCCI
Standards	FCC Part 15 Class A
EU RoHS	Compliant by Exemption
Take-Back Program	Yes
Warranty / Condition
Condition	Refurbished
Warranty	1 Year Full Replacement Warranty
