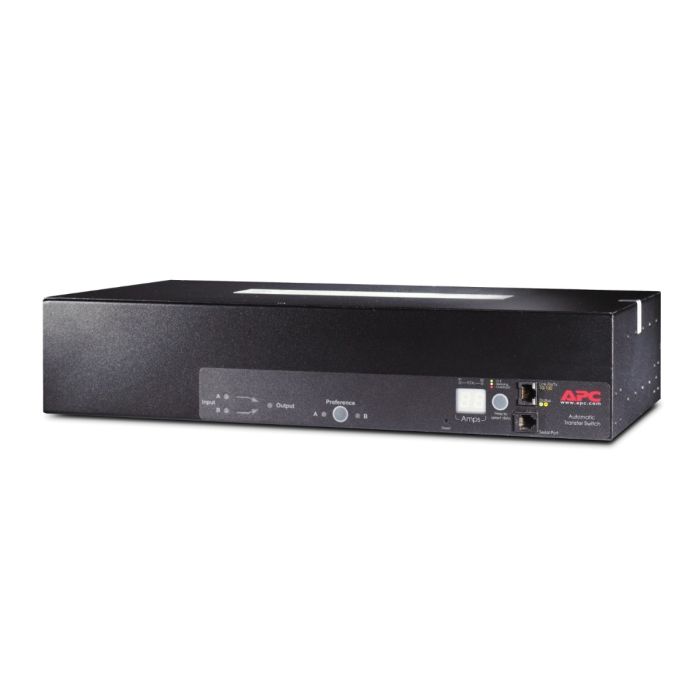

APC AP7753 Rack PDU ATS 2U 30A, 120V, L5-30P Input, (16) 5-20R Output - Refurbished

APC AP7753 Rack PDU Automatic Transfer Switch, 2U, 120V, 30A

Model: AP7753
Input: L5-30P - 30A 120V
Output: (16) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + $60.00

3 Year + $105.00

Back Order

Quantity

Manufacturer: APC
Model: AP7753
Description: APC AP7753 Automatic Transfer Switch, RM 2U, 30A, 120V
Input: NEMA L5-30P - 30A 120V
Output: (16) NEMA 5-20R
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

APC AP7753 Automatic Transfer Switch, RM 2U, 30A, 120V User's Manual

AP7753 - Specifications:

Main:

Main Input Voltage

100V
120V

Main Output Voltage

120V

Input Connection Type

NEMA L5-30P

Number of Rack Unit

Cable Length

8ft (2.44m)

Number of Cables

Physical:

Color	Black
Height	3.46 in (8.8cm)
Width	17.01 in (43.2cm)
Depth	9.29 in (23.6cm)
Net Weight	13.98 lb (US) (6.34 kg)
Mounting Location	Front Rear
Mounting Preference	No preference
Mounting Mode	Rack-mounted

Input:

Input Frequency	50/60 Hz
Line Rated Current	24A
Max Line Current	30A
Input Current Limits	30A

Output:

Maximum Total Current Draw per Phase

30A

Number of Power Socket Outlets

(16) NEMA 5-20R

Protection Type

Circuit Breaker

Environmental:

Ambient Air Temperature for Operation	23 - 113°F (-5 - 45°C)
Relative Humidity	5 - 95%
Operating Altitude	0 - 10000ft
Ambient Air Temperature for Storage	-13 - 149°F (-25 - 65°C)
Storage Relative Humidity	5 - 95%
Storage Altitude	0 - 50000 ft (0.00 - 15240.00 m)
