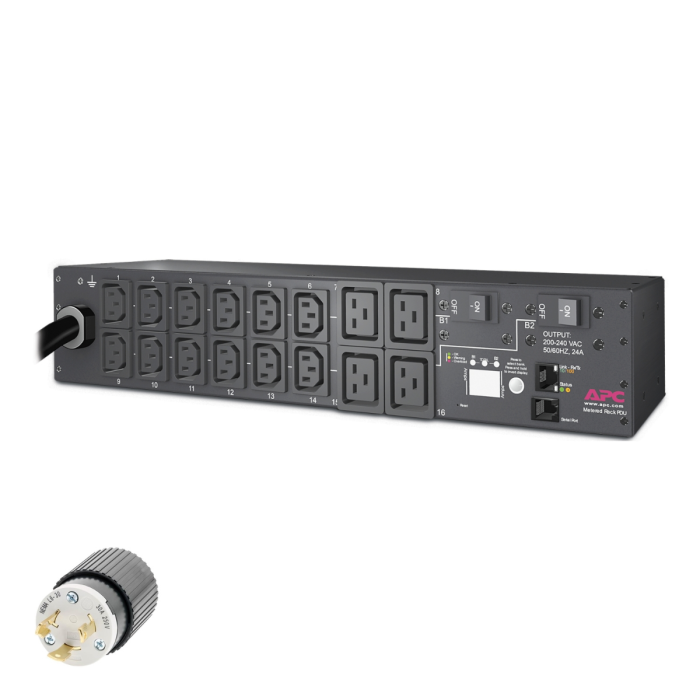

APC AP7811B Rack PDU 2G, Metered, 2U, 30A, 208V
Model: AP7811B
Input: 200V, 208V, 230V
Input Connections: NEMA L6-30P
Cord Length: 12.01ft (3.7meters)
Output: 208V
Output Connections: (12) IEC 60320 C13, (4) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty
In stock
Manufacturer: APC
Model Description: APC Metered Rack PDU, 2U, 30A 208V, (12) C13 & (4) C19
Condition: Refurbished
Part Number: AP7811B
Output Voltage: 208V
Input Voltage: 200V-208V 30A
Warranty: 1 Year Full Replacement Warranty
AP7811B Specifications:
Key Features:
Rack Height |
2U |
||||
Output Connections |
|
||||
Nominal Output Voltage |
208V |
||||
Nominal Input Voltage |
200V, 208V, 230V |
||||
Input Connections |
NEMA L6-30P |
||||
Cord Length |
12.01ft (3.7meters) |
Output:
Overload Protection |
Yes |
Maximum Total Current Draw |
24 |
Input:
Input frequency |
50/60 Hz |
Load Capacity |
4992VA |
Number of Power Cords |
1 |
Maximum Input Current |
30A |
Regulatory Derated Input Current (North America) |
24A |
Physical:
Maximum Height |
3.46 inches (88mm, 8.8cm) |
Maximum Width |
17.48 inches (444mm, 44.4cm) |
Maximum Depth |
4.41 inches (112mm, 11.2cm) |
Net Weight |
7.41 lbs. (3.36kg) |
Shipping Weight |
11.95 lbs. (5.42kg) |
Shipping Height |
5.51 inches (140mm, 14.0cm) |
Shipping Width |
20.0 inches (508mm, 50.8cm) |
Shipping Depth |
14.49 inches (368mm, 36.8cm) |
Color |
Black |
Environmental:
Operating Temperature |
23 - 113°F (-5 - 45°C) |
Operating Relative Humidity |
5 - 95% |
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
Storage Temperature |
-25 - 65°C |
Storage Relative Humidity |
5 - 95% |
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
