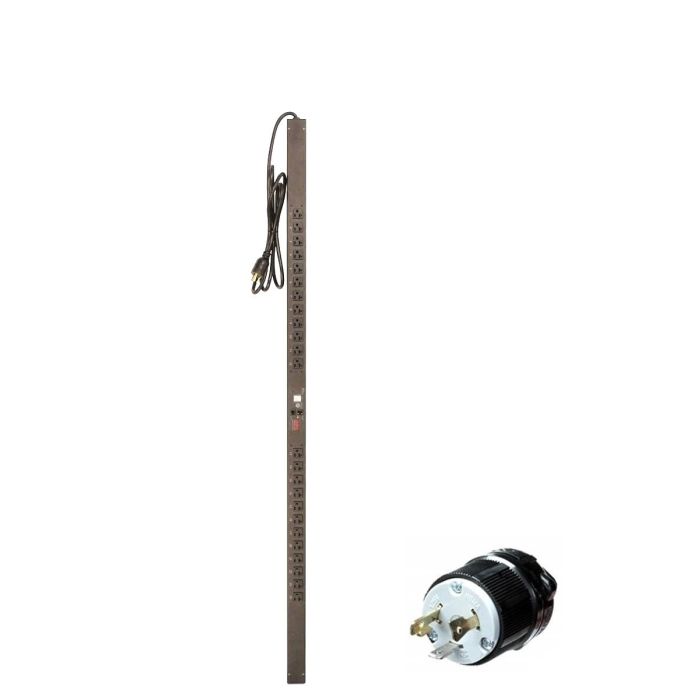

APC AP7830 Rack PDU, Metered, 0U, 20A, 1920VA, 120V, Output: (24) 5-20R - Refurbished

APC AP7830 Rack PDU, Metered, Zero U, 20A, 120V
Model: AP7830
Input: 100V, 120V
Input Connections: NEMA L5-20P
Output: 120V
Output Connections: (24) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + $60.00

3 Year + $105.00

In stock

Quantity

Manufacturer: APC
Model Description: APC Metered Rack PDU, Zero U, 20A, 120V, (24) 5-20R
Condition: Refurbished
Part Number: AP7830
Output Voltage: 120V
Input Voltage: 100V, 120V
Warranty: 1 Year Full Replacement Warranty

The APC AP7830 is a metered, Zero U rack PDU designed for IT cabinets. It supports 120 V power with a 20 A input (NEMA L5-20P) and provides 24 NEMA 5-20R outlets for connecting servers and network gear. This unit is refurbished and comes with a 1-year replacement warranty.

APC AP7830 Rack PDU, Metered, Zero U - User Manual

AP7830 - APC Metered Rack PDU, Zero U Specifications:

Key Features:

Output Connections

(24) NEMA 5-20R

Nominal Output Voltage

120V

Nominal Input Voltage

100V, 120V

Input Connections

NEMA L5-20P

Output:

Overload Protection	No
Maximum Total Current Draw	16

Input:

Input frequency	50/60 Hz
Number of Power Cords	1
Load Capacity	1920VA
Maximum Input Current	20A
Regulatory Derated Input Current (North America)	16A

Physical:

Maximum Height	63.74 inches (1619mm, 161.9cm)
Maximum Width	2.2 inches (56mm, 5.6cm)
Maximum Depth	1.73 inches (44mm, 4.4cm)
Net Weight	15.04 lbs. (6.82kg)
Shipping Weight	17.04 lbs. (7.73kg)
Shipping Height	84.02 inches (2134mm, 213.4cm)
Shipping Width	5.98 inches (152mm, 15.2cm)
Shipping Depth	5.0 inches (127mm, 12.7cm)
Color	Black

Environmental:

Operating Temperature	23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0 - 10000ft (0 - 3048 meters)
Storage Temperature	-25 - 65°C
Storage Relative Humidity	0 - 95%
Storage Elevation	0 - 50000ft (0 - 15240 meters)
