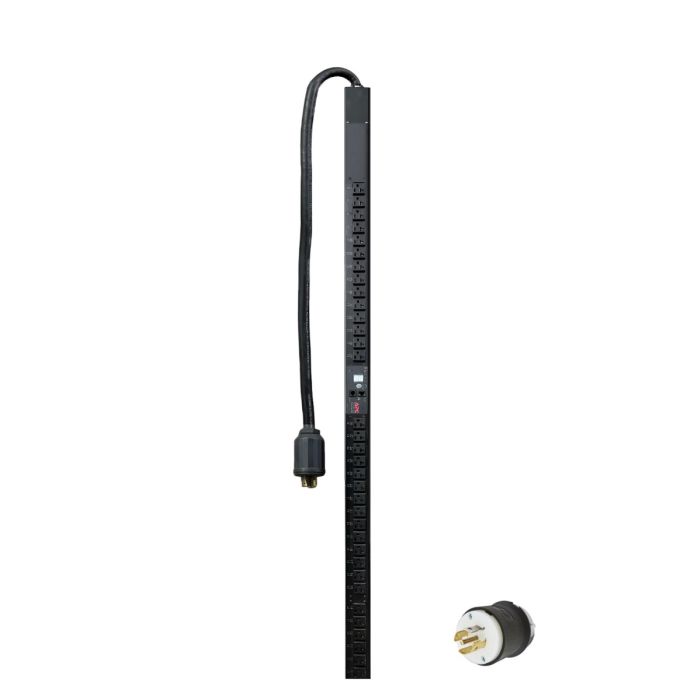

APC AP7862 Metered Rack PDU 0U, 208V 3PH, 5700W 20A, Output:(42)5-20R - Refurbished

Manufacturer: APC
Model: AP7862
Description: Metered Rack PDU, ZeroU, 5.7kVA, 208V 3-Phase Input, 120V Output, (42) NEMA 5-20R
Condition: Refurbished PDU with Verified Functionality
Part Number: AP7862
Input: NEMA L21-20P, 208V 3-Phase, 20A Input Limit
Output: (42) NEMA 5-20R, 120V
Load Capacity: 5700VA
PDU Type: Metered
Form Factor: Vertical ZeroU Rackmount
Warranty: 1 Year Full Replacement Warranty

The APC AP7862 is a metered rack PDU designed for efficient power distribution in high-density IT environments. This 0U vertical unit supports 208V three-phase input with a NEMA L21-20P connection and provides (42) NEMA 5-20R outlets, making it ideal for distributing power to multiple devices within a rack. It features real-time load monitoring and remote management capabilities through an integrated Network Management Card (NMC2), allowing users to track power usage, set alarms, and access data logs via web interface or SNMP. With a 5.7kVA load capacity and reliable performance, the AP7862 is a practical solution for data centers and network installations requiring scalable and monitored power distribution.

APC AP7862 Metered Rack PDU 0U, 208V 3PH - User Manual

AP7862 - APC Metered Rack PDU Specifications:

Main
Manufacturer	APC
Model	AP7862
Product Description	Metered Rack PDU, ZeroU, 5.7kVA, 208V 3-Phase Input, 120V Output, (42) NEMA 5-20R
Product Type	Rack Power Distribution Unit (PDU)
PDU Type	Metered
Load Capacity	5700VA / 5.7kVA
Form Factor	Vertical ZeroU (0U)
Mounting Type	Rack-Mounted
Mounting Position	Vertical
Mounting Location	Side
Color	Black
Input
Main Input Voltage	208V AC
Input Phase	3-Phase
Input Connection	NEMA L21-20P
Network Frequency	50/60Hz
Input Current Limit	20A
Rated Input Current	16A
Regulatory Derated Input Current	16A
Maximum Current Draw	16A
Number of Input Power Cords	1
Input Cord Length	2.99 ft (0.91 m)
Output
Nominal Output Voltage	120V AC
Total Number of Outlets	42
Output Receptacle Type	NEMA 5-20R
Output Connections	(42) NEMA 5-20R
Load Capacity	5700VA / 5.7kVA
Maximum Current Draw	16A
Output Distribution	High-Density 120V Rack Power Distribution
PDU Output Type	Metered – Non-Switched
Individual Outlet Switching	No
Remote Outlet ON/OFF	No
Remote Outlet Reboot	No
Power Sequencing by Outlet	No
Individual Outlet Metering	No
Metered by Outlet	No – Metered at PDU Level
Circuit Breaker	No
Protection Type	Without Circuit Breaker
Metering & Power Monitoring
Power Metering	Yes – Metered PDU
Local Load Monitoring	Yes
Total Rack Load Monitoring	Yes
Current Monitoring	Yes
Real-Time Load Monitoring	Yes
PDU-Level Metering	Yes
Individual Outlet Metering	No
Individual Outlet Energy Monitoring	No
Load Threshold Monitoring	Yes
Overload Monitoring	Yes – Load monitoring helps identify potential overload conditions
Remote Load Monitoring	Yes – Through Embedded Network Management Interface
PDU Classification	Metered – Not Metered by Outlet
Switching Capability	No – Not a Switched PDU
Communications & Management
Network Management	Built-In / Embedded Network Management
Network Management Generation	NMC1 Generation
Network Management Architecture	Embedded Network Management Interface used by AP78XX Series Rack PDUs
Web-Based Management	Yes
Remote Monitoring	Yes – Full Remote PDU and Load Monitoring
Network Interface	Ethernet Network Interface
Web Interface	Yes – Browser-Based Monitoring and Configuration
SNMP Management	Yes
Telnet Access	Yes
Remote Network Configuration	Yes
User Accounts	Supported
Management Interfaces	Network-Based Management Interfaces
Load Monitoring	Real-Time PDU Load Monitoring
Configurable Load Thresholds	Yes
Alarm Management	Yes
Event Monitoring	Yes
Remote Access	Yes
Security Configuration	Supported through Network Management Interface
Firmware / File Management	Supported through Network Management Interface
Individual Outlet Control	No
Remote Outlet Switching	No
Remote Outlet Reboot	No
User Interface, Alerts & Controls
Local Load Display	Yes – Metered Load Display
Local Load Monitoring	Yes
Load Status Monitoring	Yes
Current / Load Indication	Yes
User-Configurable Load Thresholds	Yes
Overload Warning Capability	Yes
Network Alarm Monitoring	Yes
Remote Alarm Management	Yes
Outlet-Level Controls	No
Power Management Features
High-Density Power Distribution	Yes
Three-Phase Input	Yes – 208V 3-Phase
120V Output Distribution	Yes
Centralized Rack Load Monitoring	Yes
PDU-Level Current Metering	Yes
Network-Based Monitoring	Yes
Individual Outlet Control	No
Individual Outlet Metering	No
Remote Power Cycling	No
Outlet Power Sequencing	No
Physical
Rack Units	0U
Form Factor	Vertical ZeroU
Mounting Mode	Rack-Mounted
Mounting Position	Vertical
Mounting Location	Side
Mounting Preference	No Preference
Height	70.0 in (1778 mm / 177.8 cm)
Width	2.2 in (56 mm / 5.6 cm)
Depth	1.7 in (44 mm / 4.4 cm)
Net Weight	12.04 lb (5.46 kg)
Color	Black
Power Cord Length	2.99 ft (0.91 m)
Number of Power Cords	1
Environmental
Operating Temperature	32–113°F (0–45°C)
Operating Relative Humidity	0–95%
Operating Altitude	0–10,000 ft (approx. 0–3,000 m)
Storage Temperature	-13–149°F (-25–65°C)
Storage Relative Humidity	0–95%
Storage Altitude	0–50,000 ft (0–15,240 m)
Conformance
cUL Listed	Yes
cUL Recognized	Yes
UL Listed	Yes
CSA Standard	CSA C22.2 No. 42
CSA Standard	CSA C22.2 No. 60950-1-03
FCC Compliance	FCC Part 15 Class A
UL Standard	UL 60950-1
Packaging
Package Quantity	1
Shipping Height	84.02 in (213.4 cm)
Shipping Width	6.0 in (15.2 cm)
Shipping Depth	5.0 in (12.7 cm)
Shipping Weight	19.491 lb (8.841 kg)
Condition & Warranty
Condition	Refurbished PDU with Verified Functionality
Warranty	1 Year Full Replacement Warranty
Additional Warranty	Available
