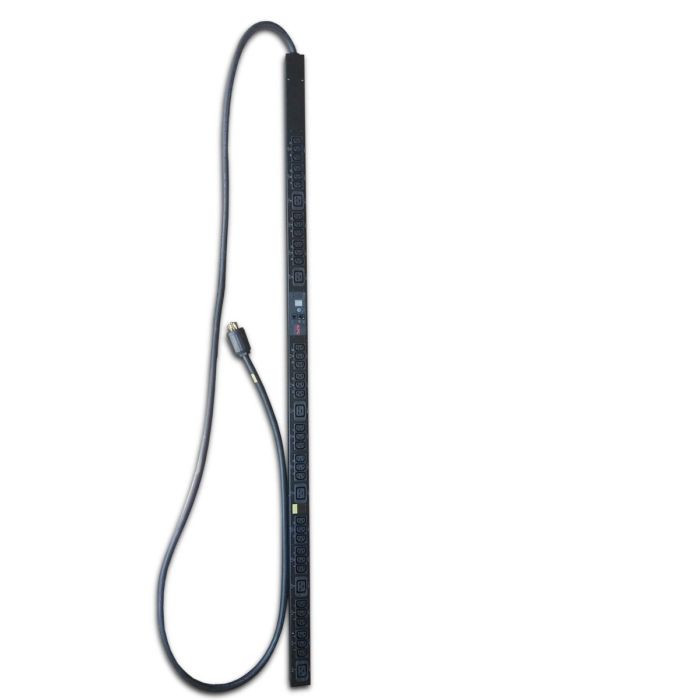

APC AP7894 Rack PDU, Metered, Zero U, 5700W, 20A 208V, (36)C13, (6)C19 - Refurbished
APC AP7894 Rack PDU Metered, ZeroU, 5.7kW, 208V 3-Phase, 20A
Model: AP7894
Input: 208V 3PH
Input Connections: NEMA L21-20P, 20A
Output: 208V
Output Connections: (36) IEC 60320 C13, (6) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty
$299.99
In stock
Manufacturer:Â APC
Model: AP7894
Part Number: AP7894
Input: NEMA L21-20P, 20A, 208V 3PH
Output: (36) IEC 60320 C13, (6) IEC 60320 C19
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description:Â APC AP7894 Rack PDU Metered, ZeroU, 5.7kW, 20A, 208V 3-Phase. Model: AP7894. Input Connection: NEMA L21-20P (20A, 208V 3PH). Output Connections: (36) IEC C13, (6) IEC C19. Provides up to 5700VA capacity with real-time metering for load monitoring and power distribution control. Includes remote monitoring capability via Web, SNMP, and CLI, with event logging and overload alarm configuration. Designed for high-density rack environments with 0U vertical tool-less mounting and integrated cord retention system. Refurbished PDU. 1 Year Full Replacement Warranty Included.
Â
Â
Â
AP7894Â Refurbished APC Metered Rack 3 phase PDU - Product data sheet
AP7894Â Specifications:
Â
Key Features:
| Rack Height | Toolless 0U Mounting |
| PDU Type | Metered |
| Form Factor | Vertical Rackmount (0U) |
| Phase | 3-Phase |
| Remote Monitoring | Yes |
| Locking IEC Support | Yes |
| Environmental Monitoring Port | Yes (AP9335T / AP9335TH compatible) |
Â
Output:
| Output Connections | (36) IEC 60320 C13 |
| Â | (6) IEC 60320 C19 |
| Nominal Output Voltage | 208V |
| Maximum Total Current Draw | 20A |
| Metering | Real-time current, voltage, kW, kWh |
| Overload Protection | Yes |
Input:
| Input Voltage | 208V 3-Phase |
| Input Frequency | 50/60 Hz |
| Input Connection | NEMA L21-20P |
| Number of Power Cords | 1 |
| Maximum Input Current | 20A |
| Load Capacity | 5700VA |
| Regulatory Derated Current | 16A |
Â
Physical:
| Height |
70 in (1778 mm) |
| Width |
2.2 in (56 mm) |
| Depth |
1.7 in (44 mm) |
| Net Weight |
12.04 lb (5.46 kg) |
| Color |
Black |
Â
Â
Communications & Management:
| Network Interface | Built-in Ethernet Port |
| Remote Access | Web UI, SNMP, CLI |
| Supported Protocols | HTTP, HTTPS, SNMP v1/v2c/v3, SSH, Telnet |
| Local Display | LED Display for Current & Load Monitoring |
| User Alarms | Configurable overload alarms |
| Environmental Monitoring | Supported via AP9335T / AP9335TH sensors |
| Data Logging | Historical power and energy logging |
| Firmware Updates | Supported via network interface |
| Security | Password protection, encrypted access |
| Serial Configuration | Included configuration cable |
| Â |
 |
Â
Â
Certifications & Compliance:
| Certifications | UL 60950-1, CSA C22.2 No 60950 |
| Compliance | RoHS |
| Warranty | 1 Year Full Replacement Warranty |
Â
Environmental:
| Operating Temperature | -5 to 45 °C |
| Operating Humidity | 5–95% non-condensing |
| Operating Elevation | 0–3,048 m |
| Storage Temperature | -25 to 65 °C |
| Storage Humidity | 5–95% |
| Storage Elevation | 0–15,240 m |
