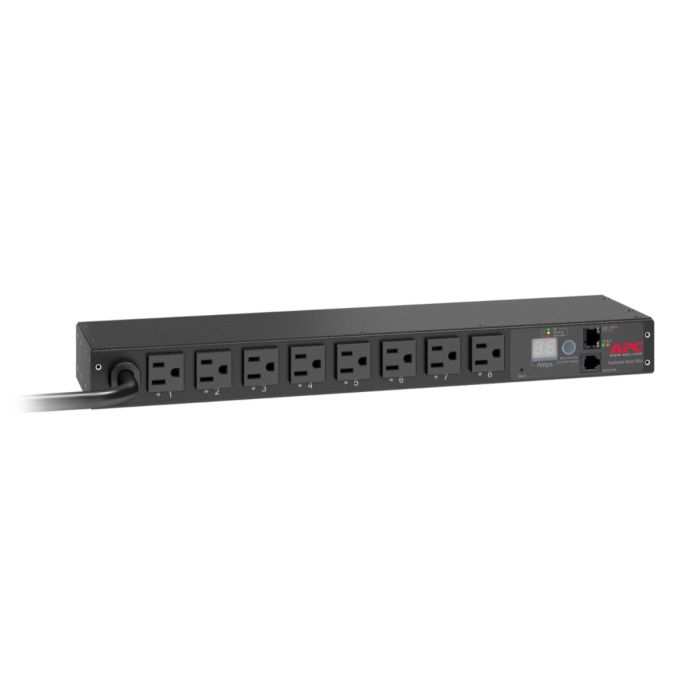

APC AP7901 1U Rack PDU - L5-20P 20A Input, 120V, (8)5-20 - Refurbished Zoom


APC AP7901 Rack PDU, Switched, L5-20P 20A 120V Input, (8)5-20 120V Output - Refurbished

APC AP7901 Switched Rack PDU, 20A 120V Input, (8) 5-20
Model: AP7901
Input: L5-20P - 20A 120V
Output: (8) NEMA 5-20R - 120V 20A
Refurbished PDU
1 Year Warranty

Msrp Price: $299.99


Availability: In stock



Manufacturer: APC
Description: Refurbished PDU - APC AP7901, Rack PDU, Switched, 1U, 20A 120V, (8) 5-20
Input: L5-20P - 20A 120V
Output: (8) 5-20R
Condition: Refurbished
Warranty: 1 Year Warranty, additional warranty available

APC AP7901 Rack PDU

APC's Switched Rack Power Distribution Units (PDUs) are premium solutions to many of the power management problems seen in today's IT environments. Some of the problems are unauthorized use of power outlets, locked-up equipment, in-rush current, overloaded circuits, and the need of remote access to power outlets in the rack. The Switched Rack PDUs address these problems through individual outlet control, power on and off delays, current monitoring, alarm thresholds, and network management. Individual outlet control allows users to turn outlets on, turn outlets off, or recycle power to equipment, which can reboot locked-up equipment and avoid unauthorized use of outlets.


Main Features:

  • 19 inch Rack-Mountable

  • Alarm Thresholds

  • Defineable Outlet Control

  • Flash Upgradeable

  • Multiple User Support

  • Power Sequencing

  • Remote Management Capabilities


Technical Specifications:



Nominal Output Voltage


Maximum Total Current Draw per Phase


Output Connections

(8) NEMA 5-20R







Nominal Input Voltage


Input Frequency

50/60 Hz

Regulatory Derated Input Current (North America)


Input Connections

NEMA 5-15P


Cord Length

3.66 meters

Number of Power Cords


Acceptable Input Voltage

100-120 VAC

Maximum Input Current per phase


Load Capacity

2400 VA



Net Weight

2.27 kg

Maximum Height

44.00 mm

Maxiumum Width

445.00 mm

Maximum Depth

108.00 mm



Operating Environment

0 - 45 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0 - 3000 meters

Storage Temperature

-25 - 65 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0 - 15,000 meters

Additional Info

Additional Info

Manufacturer No
Form Factor No
Waveform in Battery Mode No
Input Voltage No
Output (VA) No
Output Voltage No
PDU Total Outlets 8
