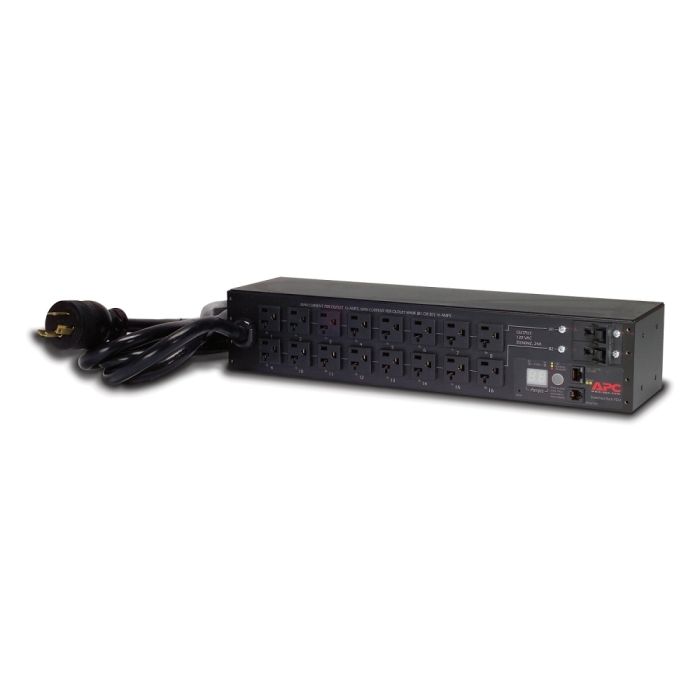

APC AP7902 Rack PDU, Switched, 2U, 30A, 120V, L5-30P input, (16)5-20 output - Refurbished
APC AP7902 Rack PDU, Switched, 2U, 30A, 120V
Model: AP7902
Input: 100V, 120V
Input Connections: NEMA L5-30P
Output: 120V
Output Connections: (16) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
$349.99
In stock
Manufacturer: APC
Model Description:Â APC Switched Rack PDU, 2U, 30A 120V, (16) NEMA 5-20R
Condition: Refurbished
Part Number: AP7902
Output Voltage:Â 120V
Input Voltage:Â 120V 30A
Warranty:Â 1 Year Full Replacement Warranty
Â
APC Switched Rack PDU, 2U, 30A 120V, User Manual
AP7902 Specifications:
Key Features:
|
Rack Height |
2U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
120V |
||
|
Nominal Input Voltage |
100V, 120V |
||
|
Input Connections |
NEMA L5-30P |
Output:
|
Maximum Total Current Draw |
30 |
Input:
|
Input frequency |
50/60 Hz |
|
Acceptable Input Voltage |
100 - 120VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
2880VA |
|
Maximum Input Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
3.5 inches (89mm, 8.9cm) |
|
Maximum Width |
17.52 inches (445mm, 44.5cm) |
|
Maximum Depth |
4.49 inches (114mm, 11.4cm) |
|
Net Weight |
9.92 lbs. (4.5kg) |
|
Shipping Weight |
14.44 lbs. (6.55kg) |
|
Shipping Height |
5.51 inches (140mm, 14.0cm) |
|
Shipping Width |
20.0 inches (508mm, 50.8cm) |
|
Shipping Depth |
14.49 inches (368mm, 36.8cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 113°F (0 - 45°C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
