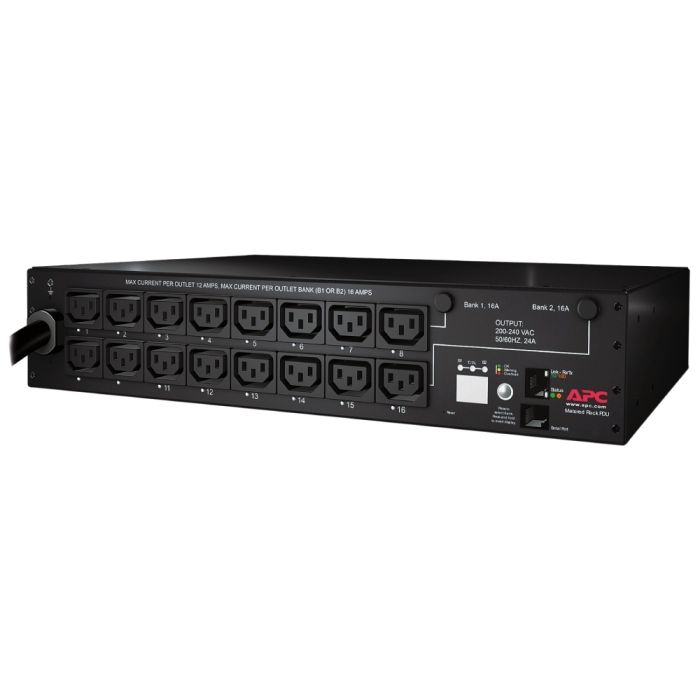

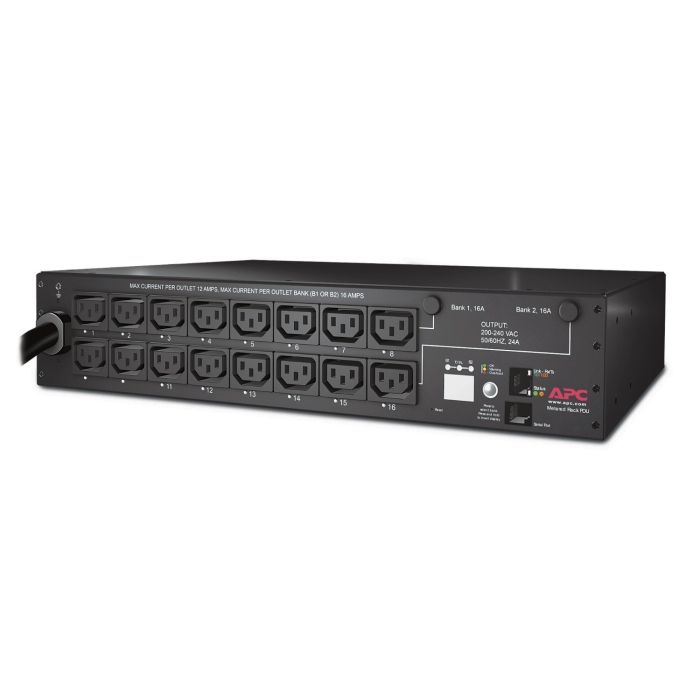

APC AP7911A Rack PDU 2U, 4992W Switched, 2U, 30A, 208V, Output: (16)C13 - Refurbished

Manufacturer: APC
Model Description: APC Switched Rack PDU, 2U, 30A, 200–240V, (16) IEC C13, 4992VA
Condition: Refurbished
Part Number: AP7911A
PDU Type: Switched Rack PDU
Input Voltage: 200V / 208V / 230V, 30A
Input Connection: NEMA L6-30P
Output Voltage: 208V
Output Connections: (16) IEC 60320 C13
Load Capacity: 4992VA
Rated Input Current: 24A
Maximum Input Current: 30A
Form Factor: 2U Rackmount
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP7911A is a 2U switched rack power distribution unit designed for remote power distribution and management of rack-mounted IT equipment. It features a NEMA L6-30P input, (16) IEC C13 outlets, 4992VA load capacity, and a 30A maximum input rating. Its switched PDU architecture provides individually controllable outlets for remote power cycling, equipment rebooting, sequencing, and management. The AP7911A is designed for data centers, server rooms, network racks, and other applications requiring remotely manageable rack power distribution.

APC Switched Rack PDU, 2U, 30A 208V, (16)C13 - User Manual

AP7911A - APC Switched Rack PDU Specifications:

Key Features
Manufacturer	APC
Model	AP7911A
Product Type	Switched Rack Power Distribution Unit
PDU Type	Switched
Form Factor	2U Rackmount
Rack Height	2U
Main Input Voltage	200V / 208V / 230V
Permissible Input Voltage	200–240V
Nominal Output Voltage	208V
Input Connection	NEMA L6-30P
Output Connections	(16) IEC 60320 C13
Total Outlets	16
Load Capacity	4992VA
Rated Input Current	24A
Maximum Input Current	30A
Input Current Limit	30A
Network Frequency	50/60 Hz
Input Cord Length	12 ft (3.7 m)
Mounting Mode	Rack-Mounted
Mounting Position	Horizontal
Color	Black
Input
Main Input Voltage	200V / 208V / 230V
Permissible Input Voltage	200–240V AC
Input Connection Type	NEMA L6-30P
Input Frequency	50/60 Hz
Rated Input Current	24A
Maximum Input Current	30A
Input Current Limit	30A
Number of Power Cords	1
Power Cord Length	12 ft (3.7 m)
Output
Nominal Output Voltage	208V
Number of Outlets	16
Output Connections	(16) IEC 60320 C13
Maximum Current Draw	30A
Outlet Switching	Yes
Individual Outlet Control	Yes
Remote Outlet Switching	Yes
Remote Outlet Reboot	Yes
Power Cycling	Supported
Outlet Sequencing	Supported
Switched PDU Functions
PDU Architecture	Switched
Remote Power Control	Supported
Individual Outlet Switching	Supported
Individual Outlet Reboot	Supported
Remote Equipment Reboot	Supported
Power-On Sequencing	Supported
Outlet Scheduling	Supported
Load Management	Supported
Power Distribution Monitoring	Supported
Communications & Management
Network Management	Integrated
Ethernet Network Management	Supported
Remote Monitoring	Supported
Remote Management	Supported
Web-Based Management	Supported
SNMP Management	Supported
HTTP Management	Supported
HTTPS Management	Supported*
Telnet	Supported*
SSH	Supported*
APC PowerNet MIB	Supported
Outlet Management	Individual Outlet Control
Remote Outlet Switching	Supported
Remote Reboot	Supported
Power Cycling	Supported
Outlet Sequencing	Supported
Scheduled Outlet Control	Supported
Current / Load Monitoring	Supported
Load Threshold Configuration	Supported
Alarm Notifications	Supported
Event Logging	Supported
Network Configuration	Supported
Firmware Upgrade	Supported
User Authentication	Supported
Network Management Generation	Legacy APC Embedded Network Management
External Network Management Card Required	No
SmartSlot / Replaceable NMC Slot	No
User Interface, Alerts & Controls
Local Status Display	Current / Load Display
Outlet Control	Individual Remote Outlet Control
Remote Power Management	Supported
Remote Reboot Capability	Supported
Load Monitoring	Supported
Load Threshold Alarms	Supported
Network Status Indication	Supported
User-Configurable Alerts	Supported
Local Configuration	Supported
Remote Configuration	Supported
Physical
Color	Black
Rack Height	2U
Mounting Mode	Rack-Mounted
Mounting Position	Horizontal
Mounting Location	Front / Rear
Mounting Preference	No Preference
Height	3.5 in (8.9 cm)
Width	17.5 in (44.4 cm)
Depth	10.0 in (25.4 cm)
Net Weight	13.93 lb (6.32 kg)
Environmental
Operating Temperature	32–113°F (0–45°C)
Operating Relative Humidity	0–95%
Operating Altitude	0–10,000 ft (0–3048 m)
Storage Temperature	-13–149°F (-25–65°C)
Storage Relative Humidity	0–95%
Storage Altitude	0–50,000 ft (0–15,240 m)
Certifications & Standards
cUL Listed	Yes
CSA	Yes
Industry Canada	Yes
PSE	Yes
UL Listed	Yes
FCC Compliance	FCC Part 15 Class A
Canadian EMC	ICES-003
Safety Standard	UL 60950
Packaging
Package Quantity	1
Package Height	5.7 in (14.6 cm)
Package Width	20.2 in (51.4 cm)
Package Length	20.2 in (51.4 cm)
Package Weight	18.43 lb (8.36 kg)
