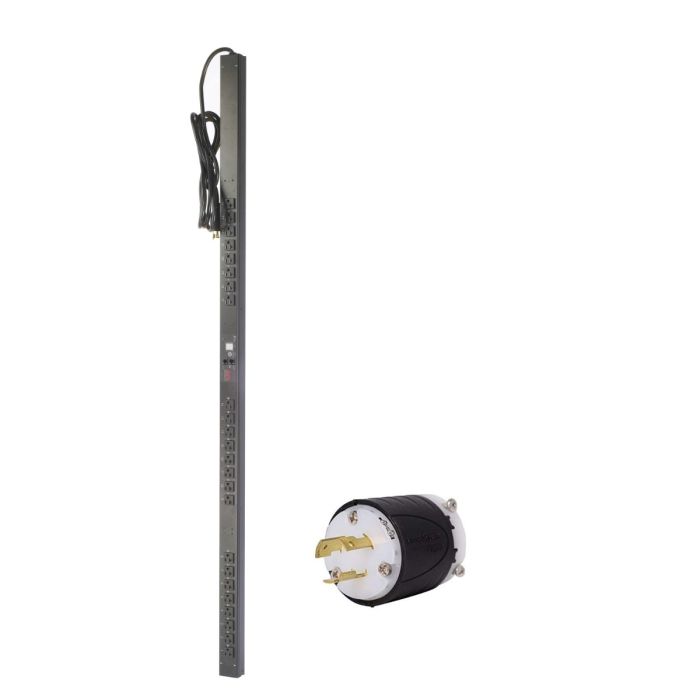

APC AP7930 Switched Rack PDU, 0U, 1920VA, 100-120V, 20A, Output:(24) 5-20R - Refurbished
APC AP7930 Switched Rack PDU, Zero U, 100V-120V 20A L5-20P, (24) 5-20R
Model:Â AP7930
Input: NEMA L5-20P (100-120V, 20A)
Output: (24) NEMA 5-20R
Switched Network Managed PDU
Individual Outlet-Level Switching & Reboot
Refurbished PDU
1 Year Full Replacement Warranty Included
$399.99
In stock
Manufacturer:Â APC
Model:Â AP7930
Description:Â Switched Rack PDU, Zero U, 20A, L5-20P, 100-120V, (24) 5-20R - Refurbished
Input:Â NEMA L5-20P - 100V-120V
Output: (24) NEMA 5-20R
Condition:Â Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: The APC AP7930 is a switched rack PDU designed to provide advanced remote power management and reliable power distribution for servers, network equipment, telecommunications systems, and other critical loads. Operating at 100-120V with a NEMA L5-20P input connection, the AP7930 provides (24) NEMA 5-20R outlets with individual outlet-level switching, remote reboot capability, power sequencing, and network-based management through Web, SNMP, and Telnet interfaces. The zero-U vertical form factor conserves valuable rack space while delivering up to 1920VA of power distribution capacity. Refurbished and backed by a 1 Year Full Replacement Warranty.
Â
Â
APC AP7930 Switched Rack PDU, 0U, 1920VA, 100-120V, 20A - User ManualÂ
Â
Â
AP7930 - APCÂ Switched Rack PDU Specifications:Â
Â
| Main | Â |
| PDU Type | Switched |
| Form Factor | Zero U Vertical Rackmount |
| Load Capacity | 1920VA |
| Nominal Input Voltage | 100V / 120V |
| Nominal Output Voltage | 120V |
| Input Connection Type | NEMA L5-20P |
| Output Connections | (24) NEMA 5-20R |
| Remote Outlet Control | Yes |
| Individual Outlet Switching | Yes |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 100V / 120V |
| Acceptable Input Voltage | 100-120 VAC |
| Input Frequency | 50/60 Hz |
| Input Connection Type | NEMA L5-20P |
| Cord Length | 10 ft (3.05 m) |
| Number of Power Cords | 1 |
| Maximum Input Current | 20A |
| Regulatory Derated Current | 16A |
| Load Capacity | 1920VA |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 120V |
| Maximum Output Current | 16A |
| Total Output Receptacles | 24 |
| Output Connections | (24) NEMA 5-20R |
| Outlet Control | Individual Outlet Switching |
| Power Sequencing | Yes |
| Remote Reboot Capability | Yes |
| Outlet-Level Management | Yes |
| Overload Protection | No |
| Â | Â |
| Communications & Management | Â |
| Network Management | Yes |
| Web Interface | Yes |
| SNMP Support | Yes |
| Telnet Support | Yes |
| Command Line Interface (CLI) | Yes |
| Remote Outlet Control | Yes |
| Remote Outlet Reboot | Yes |
| User Authentication | Yes |
| Event Logging | Yes |
| Alarm Notifications | Yes |
| Firmware Upgradeable | Yes |
| Management Port | RJ-45 Ethernet |
| Serial Configuration Port | Yes |
| Â | Â |
| Physical | Â |
| Color | Black |
| Height | 63.75 in (1619 mm) |
| Width | 2.19 in (56 mm) |
| Depth | 1.73 in (44 mm) |
| Weight | 13.0 lbs (5.91 kg) |
| Mounting Position | Vertical |
| Rack Space Required | 0U |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Operating Humidity | 5% to 95% |
| Operating Elevation | 0 to 3000 m |
| Storage Temperature | -25°C to 65°C |
| Storage Humidity | 5% to 95% |
| Storage Elevation | 0 to 15000 m |
| Â | Â |
| Conformance | Â |
| Condition | Refurbished PDU |
| Warranty | 1 Year Full Replacement Warranty Included |
