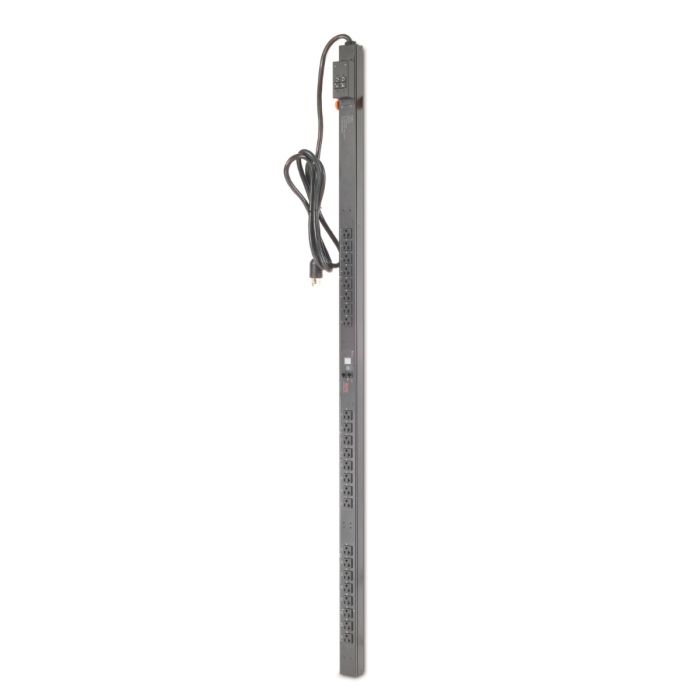

APC AP7932 Switched Rack PDU, 0U 120V 30A L5-30P Input, (24)5-20R Output - Refurbished

Manufacturer: APC
Model: APC AP7932 Switched Rack PDU, Zero U, 30A, 100–120V
Condition: Refurbished
Part Number: AP7932
Load Capacity: 2880VA
Input: NEMA L5-30P, 100–120V, 30A
Output: (24) NEMA 5-20R
PDU Type: Switched
Form Factor: Vertical Zero U
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP7932 is a switched Zero U rack PDU designed for remote power distribution and outlet-level control in server racks, network closets, and data center environments. It operates at 100–120V with a NEMA L5-30P input and provides (24) NEMA 5-20R output receptacles. The PDU has a 2880VA load capacity, 24A rated input current, 30A input current limit, and integrated circuit-breaker protection. Its switched design allows connected equipment to be remotely managed and power-cycled, making it useful for remote reboot and power-management applications. The AP7932 installs vertically in a rack as a Zero U PDU and measures 70 × 2.2 × 1.7 inches. Refurbished and backed by a 1 Year Full Replacement Warranty.

APC AP7932 Switched Rack PDU - User Manual

AP7932 - APC Switched Rack PDU Specifications:

Main
Manufacturer	APC
Product Family	Rack PDU
Model	AP7932
Product Type	Rack Power Distribution Unit (PDU)
PDU Type	Switched
Main Input Voltage	100V / 120V AC
Output Voltage	120V AC
Load Capacity	2880VA
Input Connection	NEMA L5-30P
Output Receptacles	(24) NEMA 5-20R
Form Factor	Vertical Zero U
Rack Units	0U
Mounting	Rack-Mounted
Status	Discontinued June 14, 2022
Input
Nominal Input Voltage	100V / 120V AC
Permissible Input Voltage	100–120V AC
Input Frequency	50/60Hz
Input Connection Type	NEMA L5-30P
Number of Power Cords	(1)
Power Cord Length	9.8 ft (3 m)
Rated Input Current	24A
Regulatory Derated Input Current	24A
Input Current Limit	30A
Maximum Input Current	30A
Load Capacity	2880VA
Output
Nominal Output Voltage	120V AC
Total Output Receptacles	(24)
Receptacle Type	NEMA 5-20R
NEMA 5-20R Receptacles	(24)
Maximum Total Current Draw	30A
PDU Switching Type	Switched
Outlet Switching	Yes
Individual Outlet Control	Yes
Remote Outlet On / Off Control	Yes
Remote Outlet Reboot	Yes
Outlet Power Cycling	Yes
Power Sequencing	Yes
Delayed Outlet Startup	Supported
Delayed Outlet Shutdown	Supported
Overload Protection	Yes
Protection Type	Circuit Breaker
Official Electrical Rating	24A rated input, 30A input current limit,  2880VA load capacity, (24) NEMA 5-20R outlets
Switched Outlet Management
Switched PDU	Yes
Outlet-Level Switching	Yes
Individual Outlet On / Off	Yes
Individual Outlet Reboot	Yes
Remote Power Cycling	Yes
Outlet Sequencing	Yes
Delayed Power-On	Supported
Delayed Power-Off	Supported
Prevent Simultaneous Startup	Supported through Outlet Sequencing
Remote Equipment Reboot	Yes
Unresponsive Equipment Recovery	Supported through Remote Power Cycling
Outlet Naming	Supported
Outlet Control Permissions	Supported through Network Management
Metering & Power Monitoring
Local Current Monitoring	Yes
Aggregate PDU Load Monitoring	Yes
Current Monitoring	Yes
Overload Monitoring	Yes
Load Threshold Monitoring	Supported
Alarm Thresholds	Configurable
Remote Load Monitoring	Yes
Individual Outlet Metering	No
Metering Scope	Aggregate PDU Load
Communications & Management
Network Management	Yes
Network Management Interface	Integrated
Remote PDU Management	Yes
Remote Outlet Management	Yes
Remote Monitoring	Yes
Web-Based Management	Yes
SNMP Management	Yes
Telnet Management	Yes
Network Configuration	Supported
Remote Outlet On / Off	Yes
Remote Outlet Reboot	Yes
Remote Outlet Sequencing	Yes
Event Notifications	Supported
Alarm Notifications	Supported
User Access Control	Supported
Environmental Monitoring Support	Supported with Compatible APC Environmental Accessories
User Interface, Alerts & Controls
Local Display	Current / Load Status Display
Local Load Monitoring	Yes
Status Indicators	Yes
Audible / Visual Alarm Functions	Supported
Overload Warning	Yes
Configurable Load Thresholds	Yes
Network-Based Control	Yes
Outlet Status Monitoring	Yes
Outlet Control	Individual On / Off / Reboot
Power Management Features
Remote Power Control	Yes
Individual Outlet Switching	Yes
Remote Reboot	Yes
Power Cycling	Yes
Power Sequencing	Yes
Delayed Startup	Yes
Delayed Shutdown	Yes
Load Management	Yes
Overload Protection	Circuit Breaker
Maximum Load Capacity	2880VA
Rated Continuous Input Current	24A
Input Current Limit	30A
Physical
Color	Black
Form Factor	Vertical Zero U
Rack Height	0U
Mounting Location	Side
Mounting Preference	No Preference
Mounting Mode	Rack-Mounted
Mounting Position	Vertical
Height	70 in (1778 mm)
Width	2.2 in (56 mm)
Depth	1.7 in (44 mm)
Net Weight	16.29 lb (7.39 kg)
Official Physical Configuration	Vertical rack-mounted Zero U design, 70 × 2.2 × 1.7 in and 16.29 lb
Environmental
Operating Temperature	23°F to 113°F (-5°C to 45°C)
Operating Relative Humidity	5–95%
Operating Altitude	0–15,000 ft (0–4,500 m)
Storage Temperature	-13°F to 149°F (-25°C to 65°C)
Storage Relative Humidity	5–95%
Storage Altitude	0–50,000 ft (0–15,240 m)
Environmental Ratings Verification	-5°C to 45°C operating temperature, 5–95% RH and up to 15,000 ft operating altitude
Conformance
cUL Listed	Yes
CSA	Yes
Industry Canada	Yes
UL Listed	Yes
FCC Standard	FCC Part 15 Class A
ICES Standard	ICES-003
Safety Standard	UL 60950
EU RoHS	Compliant by Exemption
Product Certifications	cUL Listed, CSA, Industry Canada and UL Listed
Packaging
Package Type	PCE
Units per Package	(1)
Shipping Height	84.02 in (213.4 cm)
Shipping Width	6.0 in (15.2 cm)
Shipping Depth / Length	6.0 in (15.2 cm)
Shipping Weight	18.261 lb (8.283 kg)
General
Application	Rack Power Distribution and Remote Equipment Power Control
Rack Installation	Vertical Zero U
Number of Outlets	(24)
Outlet Type	NEMA 5-20R
Input Plug	NEMA L5-30P
Input Voltage	100–120V AC
Output Voltage	120V AC
Input Circuit Rating	30A
Rated Continuous Current	24A
Load Capacity	2880VA
Protection	Circuit Breaker
Product Status	Discontinued
Discontinued Date	June 14, 2022
Condition & Warranty
Condition	Refurbished
Warranty	1 Year Full Replacement Warranty
Additional Warranty	Available
