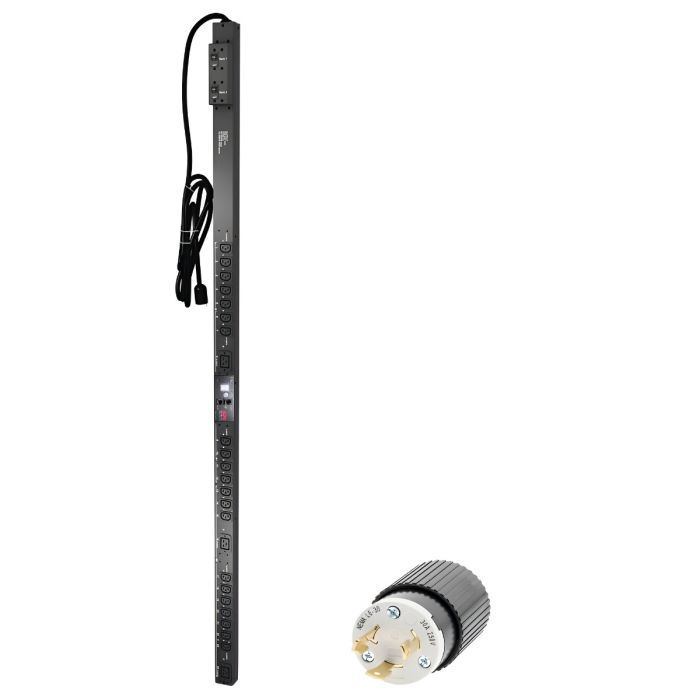

APC AP7941 Switched Rack PDU, 4992VA, 208V, 30A, Output: (3)C19 & (21)C13 - Refurbished

APC Switched Rack PDU, Zero U, 200V/208V/230V 30A L6-30P

Model: AP7941

Input: 200V / 208V / 230V
Input: NEMA L6-30P - 30A 200-240V

Output Voltage: 200V / 208V / 230V / 240V
Output: (3) IEC 60320 C19 & (21) IEC 60320 C13
Refurbished PDU
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $70.00

3 Year + $122.50

In stock

Quantity

Manufacturer: APC
Model: AP7941
Description: Rack PDU, Switched, ZeroU, 30A, 200-240V, (21) C13 & (3) C19
Input: NEMA L6-30P - 200V, 208V, 230V - 30A
Output: (3) IEC 60320 C19 & (21) IEC 60320 C13
Condition: Refurbished
Warranty: 1 Year Full Replacement Warranty, additional warranty available

Description: APC AP7941 Switched Rack PDU, ZeroU, 30A, 200-240V. Features a NEMA L6-30P input connection with (21) IEC C13 and (3) IEC C19 outlets for high-density rack power distribution. Provides remote individual outlet control and reboot capability through built-in network management via Web, SNMP, SSH, Telnet, and CLI interfaces. Supports real-time load monitoring, user-configurable alarms, and remote power management for servers, switches, and network equipment. Vertical 0U rackmount design saves valuable rack space while delivering up to 4992VA capacity. Professional refurbished unit backed by a 1-Year Full Replacement Warranty.

APC AP7941 Switched Rack PDU, Zero U - User Manual

AP7941 - APC Rack PDU, Switched Specifications:

Key Features

Rack Height	Toolless 0U Vertical Mounting
PDU Type	Switched
Input Phase	Single-Phase
Load Capacity	4992VA
Remote Outlet Control	Yes
Remote Reboot Capability	Yes
Network Management	Web, SNMP, SSH, Telnet, CLI
Circuit Breaker Protection	Yes
Mounting Position	Vertical Rackmount

Output

Nominal Output Voltage	200V, 208V, 230V, 240V
Overload Protection	Yes
Maximum Total Current Draw	30A
Output Connections	(3) IEC 320 C19 (21) IEC 320 C13

Input

Nominal Input Voltage	200V, 208V, 230V
Input frequency	50/60 Hz
Input Connections	NEMA L6-30P
Cord Length	9.8 ft (3 m)
Acceptable Input Voltage	200-240VAC
Number of Power Cords	1
Load Capacity	4992VA
Maximum Input Current	30A
Regulatory Derated Input Current (North America)	24A

Communications & Management:

Network Interface	Built-in Ethernet Port
Remote Access	Web UI, SNMP, SSH, Telnet, CLI
Outlet Management	Individual Outlet Switching & Reboot
Load Monitoring	Real-time Current Monitoring
User Alarms	Configurable Overload Notifications
Security Features	Password Protection & Secure Remote Access
Firmware Updates	Supported via Network Interface
Local Display	LED Load Status Indicators

Physical

Maximum Height	70 in (1778 mm)
Maximum Width	2.2 in (56 mm)
Maximum Depth	1.7 in (44 mm)
Net Weight	16.25 lbs. (7.39 kg)
Color	Black
Mounting Location	Rear

Environmental

Operating Temperature	23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity	5 - 95 %
Operating Elevation	0-15000ft (0-4500meters)
Storage Temperature	-13–149°F (-25–65°C)
Storage Relative Humidity	5 - 95 %
Storage Elevation	0-50000ft (0-15000meters)

Certifications & Compliance

Certifications	UL Listed, CSA, cUL, VCCI, PSE
Standards	UL 60950, FCC Part 15 Class A, ICES-003
