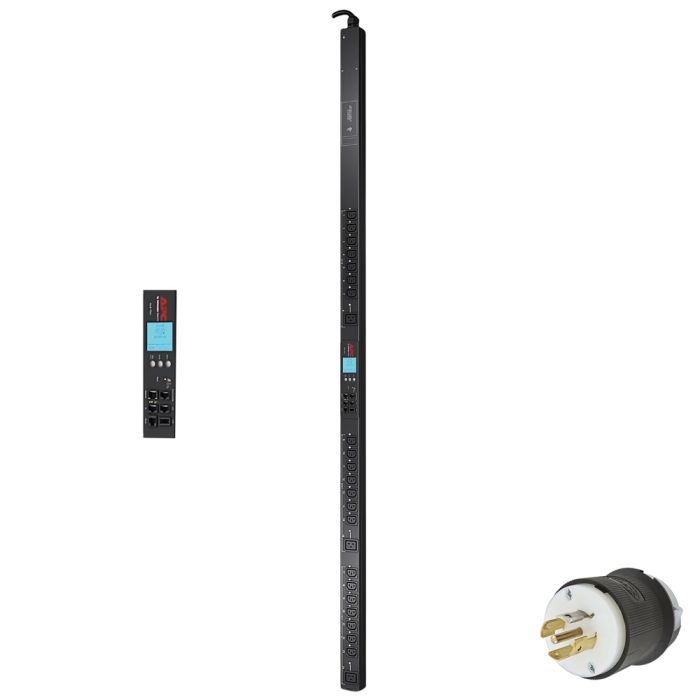

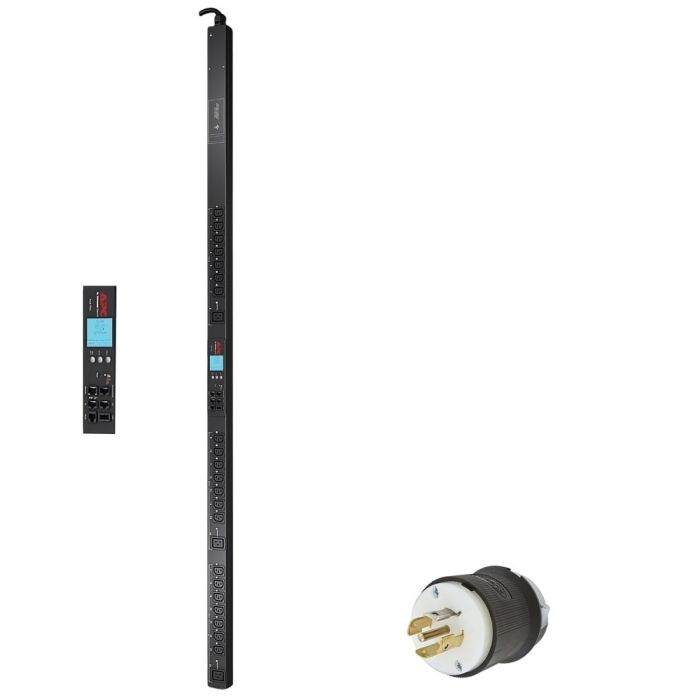

APC AP7991 Rack PDU Switched 0U, 5700W 20A 208V, Output:(21)C13 & (3)C19 - Refurbished

APC AP7991 Rack PDU,5700VA, 5700W, Switched, 20A, 208V 20A
Model: AP7991
Input: 208V 3-Phase
Input Connections: NEMA L21-20P – 20A 208V
Output: 208V
Output Connections: (21) IEC 60320 C13, (3) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty

Extended Warranty

1 Year Included

2 Year + $80.00

3 Year + $140.00

In stock

Quantity

Manufacturer: APC
Model Description: APC 5.7kW Switched Rack PDU, Zero U, 20A 208V, (21)C13 & (3)C19
Condition: Refurbished
Part Number: AP7991
Output Voltage: 208V
Input Voltage: 208V 20A
Warranty: 1 Year Full Replacement Warranty

Description: APC AP7991 Switched Rack PDU, Zero U, designed for high-density data center power distribution. Provides 208V 3-phase input via NEMA L21-20P and delivers switched power control to (21) C13 and (3) C19 outlets. Supports remote outlet switching for power cycling and load control, helping improve uptime and reduce downtime during maintenance. Includes real-time monitoring capabilities, overload protection, and secure remote management options via network interface (Web, SNMP, SSH, Telnet). Toolless 0U vertical mounting design for efficient rack space usage. Professional refurbished unit with 1-year full replacement warranty.

APC AP7991, 5.7kW Switched Rack PDU, Zero U - User Manual

AP7991 - APC 5.7kW Switched Rack PDU Specifications:

Key Features:

Rack Height	Toolless 0U Mounting
PDU Type	Switched
Form Factor	Vertical Rackmount (0U)
Phase	3-Phase
Load Capacity	5700 VA
Remote Monitoring	Yes
Remote Outlet Control	Yes (Switched PDU)
Locking IEC Support	Yes
Mounting Position	Vertical

Physical:

Color	Black
Height	63.74 in (161.9 cm)
Width	2.20 in (5.6 cm)
Depth	1.73 in (4.4 cm)
Net Weight	13.03 lb (US) (5.91 kg)
Mounting Preference	No preference
Mounting Mode	Rack-mounted

Input:

Nominal Input Voltage	208V 3-Phase
Input Connection	NEMA L21-20P
Input Frequency	50/60 Hz
Cable Length	9.8 ft (3 m)
Number of Power Cords	1
Maximum Input Current	20A
Line Rated Current	16A
Load Capacity	5700 VA
Regulatory Derated Current	16A

Output:

Nominal Output Voltage	208V
Output Connections	(21) IEC 60320 C13
	(3) IEC 60320 C19
Maximum Total Current Draw	16A
Overload Protection	Yes

Communications & Management:

Network Interface	Built-in Ethernet Port
Remote Access	Web UI, SNMP, CLI, Telnet
Supported Protocols	HTTP, HTTPS, SNMP v1/v2c/v3, SSH
Monitoring	Real-time current and load tracking
Outlet Control	Individual outlet switching (Switched PDU)
User Alarms	Configurable overload alarms
Data Logging	Event and power history logging
Firmware Updates	Supported via network interface
Security	Password protection & encrypted access

Environmental:

Ambient Air Temperature for Operation	32 - 113 °F (0 - 45 °C)
Relative Humidity	5 - 95%
Operating Altitude	0 - 10000ft
Ambient Air Temperature for Storage	-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity	5 - 95%
Storage Altitude	0 - 50000ft (0 - 15240 meters)

Certifications & Compliance:

Certifications	UL Listed, CSA, cUL
Standards	FCC Part 15 Class A, ICES-003, UL 60950
Compliance	RoHS
