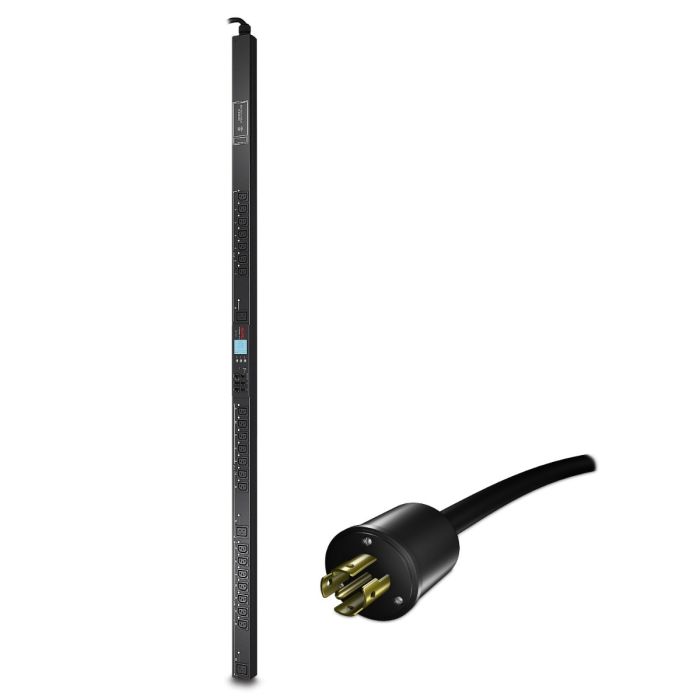

APC AP8661 Rack PDU 2G,MTD by Outlet w/ Switching, 5700W 208V Out:(21)C13,(3)C19 - Refurb
APC AP8661 Rack PDU 2G, Metered by Outlet with Switching, 5.7kW, 0U, 16A, 208V
Model: AP8661
Input: 208V
Input Connections: NEMA L21-20P - 20A 208V 3-Phase
Output Connections: (21) C13, (3) C19
Refurbished PDU
1 Year Replacement Warranty
$1,699.99
In stock
Manufacturer: APC
Model: AP8661
Description: AP8661 Rack PDU 2G, Metered by Outlet with Switching, 0U, 5.7kW, 208V
Input: NEMA L21-20P - 20A 208V 3-Phase
Output: (21) IEC C13, (3) IEC C19
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty availableÂ
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Â
APC AP8661 Rack PDU 2G, Metered by Outlet with Switching, 0U, 5.7kW, 208V User's Manual
Â
Â
AP8661 - APC Metered by Outlet Rack PDU 2G Specifications:
Key Features:
|
 |
 |
|
Rack Height |
0U |
|
Output Connections |
(21) IEC C13, (3) IEC C19 |
|
Nominal Output Voltage |
208V |
|
Nominal Input Voltage |
208V (3-phase) |
|
Input Connections |
NEMA L21-20P |
|
Cord Length |
5.9 ft (1.8 m) |
|
 |
 |
|
 |
 |
|
Output: |
 |
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
20A |
|
 |
 |
|
 |
 |
|
Input: |
 |
|
Input Frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
5700 VA |
|
Maximum Input Current |
20A |
|
Maximum Line Current |
20A |
|
Regulatory Derated Input Current (North America) |
16A |
|
 |
 |
|
 |
 |
|
Physical: |
 |
|
Maximum Height |
72.0 inches (1829 mm) |
|
Maximum Width |
2.2 inches (56 mm) |
|
Maximum Depth |
2.0 inches (51 mm) |
|
Net Weight |
15.74 lbs (7.14 kg) |
|
Color |
Black |
|
Units per Pallet |
48 |
|
 |
 |
|
 |
 |
|
Environmental: |
 |
|
Operating Temperature |
-5 to 60 °C (23 to 140 °F) |
|
Operating Relative Humidity |
5 – 95% |
|
Operating Elevation |
0 – 10000 ft (0 – 3048 m) |
|
Storage Temperature |
-25 to 65 °C |
|
Storage Relative Humidity |
5 – 95% |
|
Storage Elevation |
0 – 50000 ft (0 – 15240 m) |
|
 |
 |
|
 |
 |
|
Communications & Management: |
 |
|
Network Interface |
Web, SNMP, Telnet |
|
Remote Outlet Control |
Yes |
|
Outlet Level Metering |
Yes |
|
User Interface |
Web Interface (HTTP/HTTPS) |
|
Alarm Notifications |
Yes (user-defined alarms) |
|
Sensor Port |
Yes (Temperature/Humidity) |
|
Serial Port |
Yes (Configuration) |
|
Management Platform Support |
InfraStruxure Central, Capacity Manager, Change Manager |
