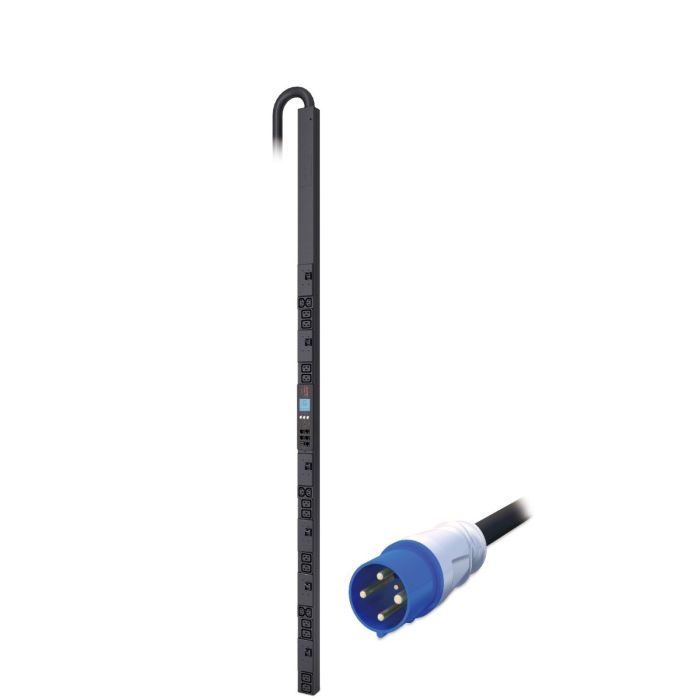

APC AP8866 Rack PDU 17200W 2G Metered 0U, 208V 3PH, Output:(6)C13 & (12)C19 - Refurbished
APC AP8866 Rack PDU, 2G, Metered, 0U, 208V 3PH
Model: AP8866
Input: 208V 3PH
Input Connections: IEC 60309 60 A 3P + PE
Cord Length: 6ft. (1.8 meters)
Output:Â 208V
Output Connections: (6) C13, (12) C19
Refurbished PDU
1 Year Replacement Warranty
$1,299.99
Back Order
Manufacturer: APC
Model Description:Â APC 17.2kw Metered Rack PDU, 2G, ZeroU, 208V 3PH, (6) C13 & (12) C19
Condition: Refurbished
Part Number: AP8866
Output Voltage:Â 208V
Input Voltage:Â 208V 3PH
Warranty:Â 1 Year Full Replacement Warranty
Metered APC PDU offers real time remote monitoring of connected load
Vertical 0U Metered PDU to power servers, switches, and network devices , Input: IEC 60309 60 A 3P + PE
Outlets: (6) IEC 60320 C13, (12) IEC 60320 C19
Â
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface.
This Metered PDU from APC provides (6) IEC 60320 C13, (12) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management.
Â
APC Rack PDU, 2G, metered, 0U, 17.2kW, 208V - User Manual
AP8866 Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
208V |
||||
|
Nominal Input Voltage |
208V 3PH |
||||
|
Input Connections |
IEC 60309 60 A 3P + PE |
||||
|
Cord Length |
6ft (1.8 meters) |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
48 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
17300VA |
|
Maximum Input Current |
60A |
|
Maximum Line Current |
48A |
|
Regulatory Derated Input Current (North America) |
48A |
Physical:
|
Maximum Height |
72.01 inches (1829mm, 182.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
2.01 inches (51mm, 5.1cm) |
|
Net Weight |
20.94 lbs. (9.5kg) |
|
Shipping Weight |
29.87 lbs. (13.55kg) |
|
Shipping Height |
84.61 inches (2149mm, 214.9cm) |
|
Shipping Width |
8.7 inches (221mm, 22.1cm) |
|
Shipping Depth |
4.41 inches (112mm, 11.2cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
23 - 140 °F (-5 - 60 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
