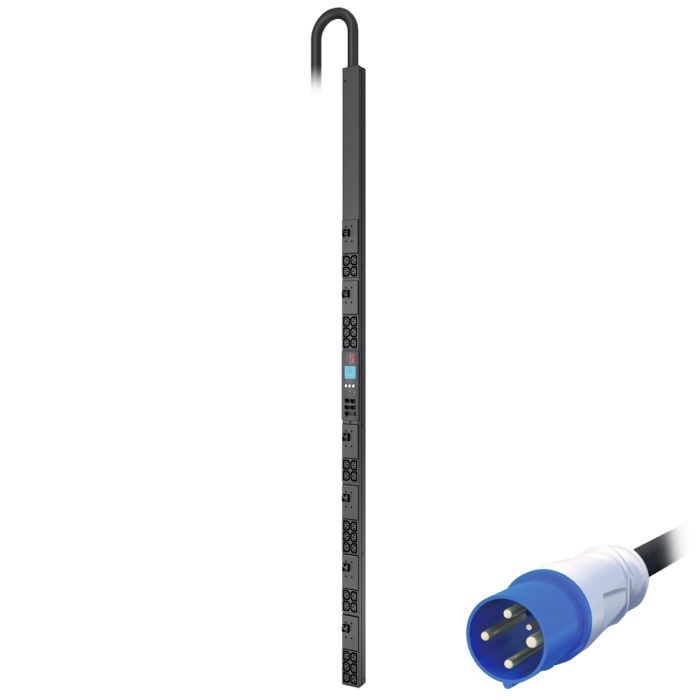

APC AP8867 NetShelter Metered Rack PDU 2G 60A 17300W, 208V 3Ph, Output:(30)C13 - Refurbished
APC AP8867 Metered Rack PDU, 2G, 0U, 17.3kW, 208V
Model: AP8867
Input Connections: IEC 60309, 3P + PE, 208V, 60A
Output Connections: (30) C13
Refurbished PDU
1 Year Replacement Warranty
$1,399.99
In stock
Manufacturer:Â APC
Model:Â AP8867
Description: AP8867 Rack PDU, Metered, 0U, 60A, 208V, 3 Phase - Refurbished
Input: IEC 60309, 3P + PE, 208V, 60A
Output:Â (30) C13
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, Additional Warranty Available
APC AP8867 17.3kW Metered Rack PDU - User's Manual
AP8867 - APC Metered Rack PDU Specifications:
Key Features:
|
Output Connections |
|
|||
|
Nominal Output Voltage |
208V |
|||
|
Nominal Input Voltage |
208V 3PH |
|||
|
Input Connections |
|
|||
|
Cord Length |
6ft (1.8meters) |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
48 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
17300VA |
|
Maximum Input Current |
60A |
|
Maximum Line Current |
48A |
|
Regulatory Derated Input Current (North America) |
48A |
Physical:
|
Maximum Height |
72.01 inches (1829mm, 182.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
2.01 inches (51mm, 5.1cm) |
|
Net Weight |
22.49 lbs. (10.2kg) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
23 - 140 °F (-5 - 60 °C) |
|
Operating Relative Humidity |
5 - 95 % |
|
Operating Elevation |
0 - 10000ft (0 - 3048meters) |
|
Storage Temperature |
-25 - 65 °C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240meters) |
|
Product certifications |
cUL listed UL listed VCCI class A |
|
Standards |
EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 FCC part 15 class A |
