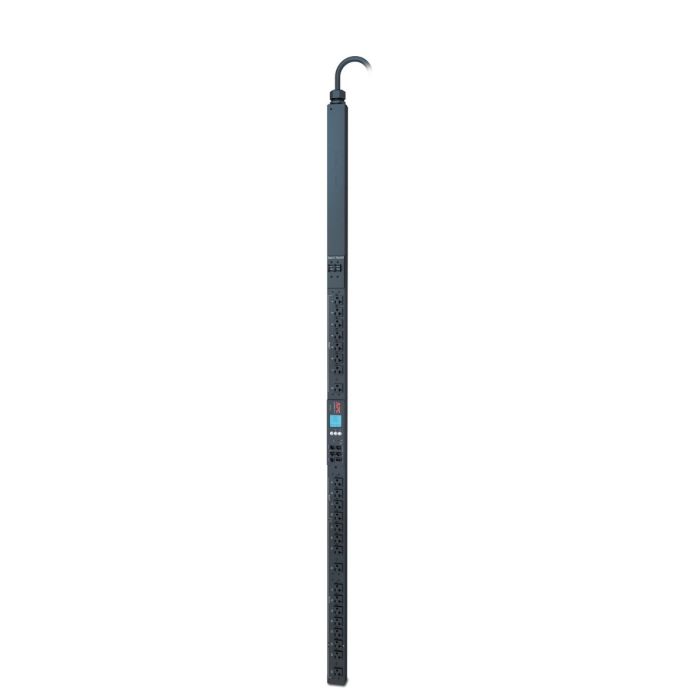

APC AP8932 Rack PDU 2G, Switched, 0U, 30A, 100-120V, Output:(24) 5-20R - Refurbished
APC AP8932 Switched Rack PDU 2G, Zero U, 100-120V, 24A
Model: AP8932
Input: NEMA L5-30P
Output: (24) NEMA 5-20R
Condition: Refurbished PDU with verified functionality
Warranty: 1-Year Full Replacement Warranty Included
$1,299.99
In stock
Manufacturer: APC
Model: AP8932
Description: Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R
Input: NEMA L5-30P
Output: (24) NEMA 5-20R
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: APC AP8932 Switched Rack PDU 2G, ZeroU, 30A, 100–120V, (24) NEMA 5-20R. Model: AP8932. Input Connection: NEMA L5-30P (30A, 120V). Output Connections: (24) NEMA 5-20R. Provides up to 2880VA capacity with advanced switched functionality, allowing individual outlet control (remote on/off/reboot) and power sequencing. Features real-time monitoring of current, voltage, power, and energy consumption at both input and outlet level. Includes built-in network management (Ethernet) with support for SNMP, Web (HTTP/HTTPS), Telnet, and SSH, plus configurable alarms, event logging, and email/SNMP notifications. 0U vertical design for high-density rack installation without occupying rack space. Refurbished unit. 1 Year Full Replacement Warranty Included.
APC AP8932 Switched Rack PDU 2G - User Manual
AP8932 - APC Rack PDU 2G, Switched, ZeroU Specifications:
Input
|
Nominal Input Voltage |
100–120V AC |
|
Input Frequency |
50/60 Hz |
|
Input Connections |
NEMA L5-30P |
|
Cord Length |
9.84 ft (3 m) |
|
Acceptable Input Voltage |
100–120 VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
2880 VA |
|
Maximum Input Current |
30 A |
|
Regulatory Derated Input Current (North America) |
24 A |
Output
|
Nominal Output Voltage |
120 V |
|
Output Connections |
(24) NEMA 5-20R |
|
Remote Individual Outlet Control |
Yes |
|
Typical Transfer Time |
8–12 ms |
Environmental
|
Operating Temperature |
23–113 °F (–5–45 °C) |
|
Operating Relative Humidity |
5–95 % |
|
Operating Elevation |
0–3,000 m |
|
Storage Temperature |
–25–65 °C |
|
Storage Relative Humidity |
5–95 % |
|
Storage Elevation |
0–15,000 m |
Physical
|
Height |
70.5 in (1791 mm) |
|
Width |
2.18 in (55 mm) |
|
Depth |
1.82 in (46 mm) |
|
Weight |
14.34 lbs (6.52 kg) |
|
Color |
Black |
|
Rack Units |
0U |
|
Mounting Location |
Side |
|
Form Factor |
0U Horizontal Rackmount |
Communications & Management (APC 2G Switched PDU)
| Network Interface | Built-in Ethernet (10/100Base-T) |
| Management Platform | APC Network Management Card 2 (integrated) |
| Remote Management | Web (HTTP/HTTPS), SNMP v1/v2c/v3, Telnet, SSH |
| User Interface | Web UI + CLI (command line interface) |
| Outlet Control | Individual outlet control (reboot, on/off sequencing) |
| Outlet Sequencing | Yes (power-up/down sequencing delays configurable) |
| Power Monitoring | Real-time current (amps), voltage, power (kW), energy (kWh) |
| Metering Type | Input-level + per-outlet monitoring |
| Alarms | Configurable thresholds (overload, voltage, current) |
| Notifications | Email alerts, SNMP traps, Syslog |
| Logging | Event log + energy usage logging |
| Security | HTTPS (SSL/TLS), SSH, SNMPv3, user authentication, role-based access |
| User Accounts | Multiple roles (Administrator, Device Manager, Read-Only) |
| Firmware Upgrade | Supported via web, FTP, SCP |
| Time Sync | NTP support |
| IP Configuration | DHCP, BOOTP, Static IP |
| Serial Access | RJ-45 serial port for local configuration |
| Integration | Compatible with APC PowerNet MIB, EcoStruxure IT |
| Environmental Monitoring | Supports external temperature/humidity sensors (optional) |
