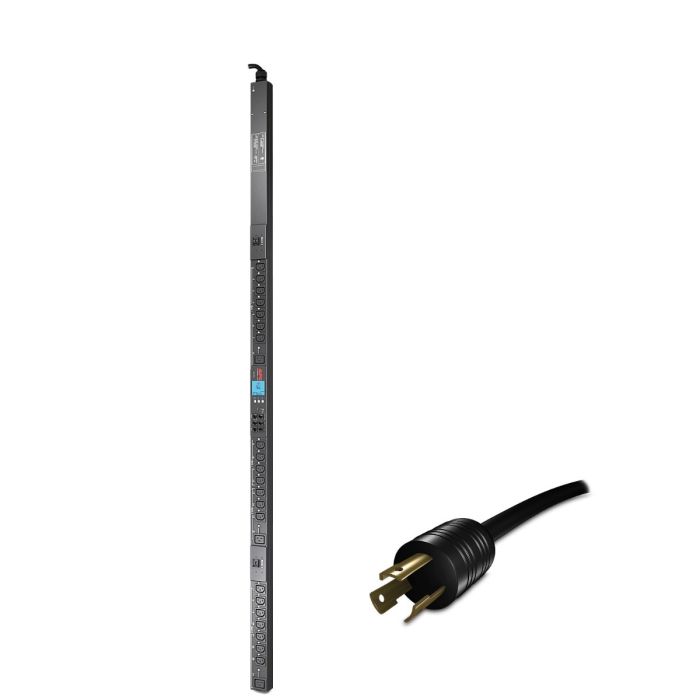

APC AP8941 Rack PDU 2G Switched By Outlet 4992VA 30A 208V Out:(21)C13 &(3)C19 - Refurbished

Manufacturer: APC
Model: APC Rack PDU 2G, Switched, Zero U, 30A, 200/208V
Condition: Refurbished PDU
Part Number: AP8941
Maximum Load Capacity: 4992VA
Input: NEMA L6-30P, 200/208V, 30A
Output: (21) IEC C13, (3) IEC C19
PDU Type: Switched - Individual Outlet Control
Network Management: Integrated Web, SNMP & CLI Management
Environmental Monitoring: Supports AP9335T / AP9335TH Sensors
Form Factor: Vertical Zero U
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP8941 is a switched 0U rack PDU designed to provide advanced remote power management and reliable power distribution for high-density IT environments. Operating at 200/208V with a NEMA L6-30P input, the AP8941 provides (21) IEC C13 and (3) IEC C19 outlets with individual outlet-level switching and monitoring. Built-in network management supports Web, SNMP, and CLI access, allowing remote outlet control, power sequencing, load monitoring, energy metering, and alarm notifications. An environmental monitoring port supports optional APC temperature and humidity sensors. Refurbished and backed by a 1 Year Full Replacement Warranty.

APC AP8941 Rack PDU 2G, Switched, Zero U - User Manual

AP8941 Specifications Rack PDU 2G Switched By Outlet :

Main
Manufacturer	APC
Product Series	Rack PDU 2G
Model / Part Number	AP8941
Product Type	Switched Rack Power Distribution Unit (PDU)
PDU Type	Switched
Form Factor	Vertical Zero U
Main Input Voltage	200V / 208V / 230V
Output Voltage	200V / 208V
Maximum Load Capacity	4992VA
Rated Input Current	24A
Maximum Line Current	30A
Input Connection	NEMA L6-30P
Total Outlets	24
Output Connections	(21) IEC 60320 C13, (3) IEC 60320 C19
Network Management	Integrated
Individual Outlet Switching	Yes
Remote Monitoring	Yes
Environmental Monitoring	Yes - Optional Sensor Required
Rack Space Required	0U
Input
Input Voltage	200V / 208V / 230V
Input Connection Type	NEMA L6-30P
Network Frequency	50/60 Hz
Rated Input Current	24A
Maximum Line Current	30A
Input Current Limit	30A
Number of Power Cords	1
Cord Length	9.8 ft (3 m)
Output
Output Voltage	200V / 208V
Maximum Load Capacity	4992VA
Maximum Current Draw	30A
Total Number of Outlets	24
IEC C13 Outlets	(21) IEC 60320 C13
IEC C19 Outlets	(3) IEC 60320 C19
Outlet Control	Individual Outlet Switching
Remote Outlet On / Off	Yes
Remote Outlet Reboot	Yes
Power-On Sequencing	Supported with Configurable Time Delays
Outlet Grouping	Supported
Multi-PDU Outlet Grouping	Supported
Protection Type	Circuit Breaker
Overload Recovery	Designed for Quick Recovery from Overload Events
Circuit Breaker Design	Ultra-Low-Profile Breakers
Metering & Power Monitoring
Real-Time Monitoring	Yes
Current Monitoring	Yes
Voltage Monitoring	Yes
Real Power Monitoring	Yes - kW
Energy Monitoring	Yes - kWh
Load Monitoring	Yes
Remote Metering	Yes
Historical Metering	Embedded Log Memory
Energy Usage Monitoring	Yes
Overload Monitoring	Yes
User-Defined Load Alarms	Supported
Local Metering Display	Current, Power and Voltage Measurements
Communications & Management
Network Management	Integrated Network Management Interface
Ethernet Network Management	Integrated
Web Management	Supported
SNMP Management	Supported
Command Line Interface	Supported
Remote PDU Management	Supported
Remote Outlet Control	Individual Outlet On / Off Control
Remote Reboot	Supported
Power Sequencing	Supported
Outlet Group Management	Supported
Multi-PDU Outlet Grouping	Supported
Real-Time Remote Monitoring	Supported
User-Defined Alarms	Supported
Event / Data Logging	Embedded Memory Log
Historical Metering Data	Supported
Local Configuration	Supported
Serial Configuration	Supported
Serial Configuration Cable	Included with Original APC Package
Environmental Monitoring Port	Yes
Compatible Temperature Sensor	AP9335T
Compatible Temperature / Humidity Sensor	AP9335TH
Environmental Sensor Requirement	Optional - Sensor Sold Separately
USB Compatibility	No
User Interface, Alerts & Controls
Local Display	Integrated Local Display
Local Monitoring	Displays Current, Power and Voltage Measurements
Local User Access	Supported
Remote User Access	Supported through Network Management Interface
Outlet Control	Individual Remote On / Off
Power Sequencing Control	Configurable Time Delays
Outlet Group Control	Supported
User-Defined Alarms	Supported
Overload Warning	Real-Time Load Monitoring and User-Defined Alarms
Event History	Embedded Memory Log
Energy Data	kW and kWh Monitoring
Power Management Features
Individual Outlet Switching	Yes
Individual Outlet Reboot	Yes
Remote Power Cycling	Yes
Power-On Sequencing	Yes
Configurable Sequencing Delays	Yes
Outlet Grouping	Yes
Outlet Grouping Across Multiple APC PDUs	Yes
Load Management	Advanced Outlet-Level Load Management
Overload Prevention	Real-Time Monitoring and User-Defined Alarm Thresholds
Energy Management	Voltage, Current, Real Power and Energy Monitoring
Network Manageable	Yes - Integrated
Environmental Monitoring	Optional Temperature / Humidity Sensors
Physical
Color	Black
Form Factor	Vertical Zero U
Rack Units	0U
Height	72.008 in (1829 mm)
Width	2.2 in (56 mm)
Depth	1.8 in (46 mm)
Dimensions (H × W × D)	72.008 × 2.2 × 1.8 in
Net Weight	16.84 lb (7.64 kg)
Mounting Position	Vertical
Mounting Location	Side
Mounting Preference	No Preference
APC NetShelter Installation	Toolless Installation Supported in Compatible APC NetShelter Enclosures
Rack Space Consumption	0U
USB Compatible	No
Environmental
Operating Temperature	23–140°F (-5–60°C)
Storage Temperature	-13–149°F (-25–65°C)
Operating Relative Humidity	5–95%
Storage Relative Humidity	5–95%
Operating Altitude	0–10,000 ft
Storage Altitude	0–50,000 ft (0–15,240 m)
Conformance
Product Certifications	cUL Listed, PSE, UL Listed, VCCI Class A
FCC Compliance	FCC Part 15 Class A
ICES Compliance	ICES-003
EU RoHS	Compliant by Exemption
Packaging
Package Type	PCE
Units per Package	1
Package Height	80.3 in (204 cm)
Package Width	4.9 in (12.4 cm)
Package Length	6.5 in (16.5 cm)
Package Weight	22.05 lb (10 kg)
Condition & Warranty
Condition	Refurbished PDU
Warranty	1 Year Full Replacement Warranty
