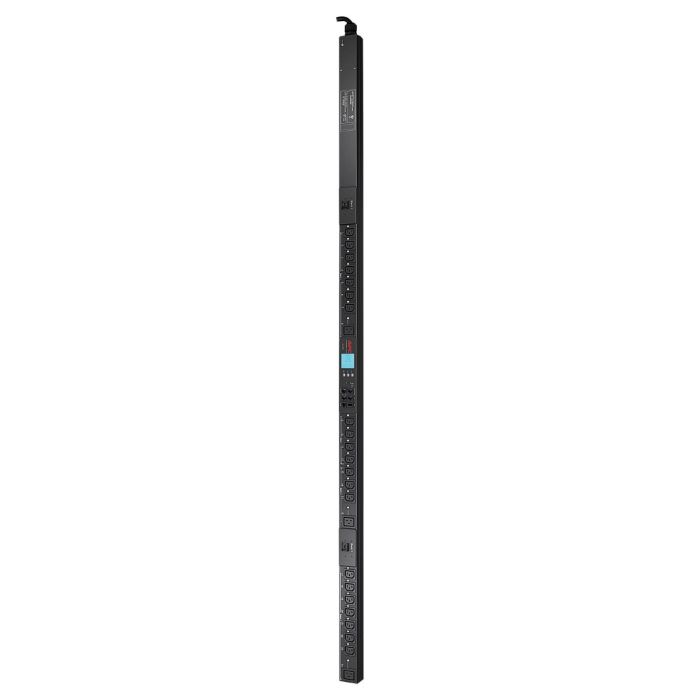

APC AP8941 Switched Rack PDU 2G, 0U, 30A, 208V, Output:(3)C19 & (21)C13 - Refurbished
APC AP8941 Rack PDU 2G, Switched, Zero U, 30A, 208V
Model: AP8941
Input: 200V, 208V, 230V
Input Connections: NEMA L6-30P
Output: 200V, 208V
Output Connections: (21) IEC 60320 C13, (3) IEC 60320 C19
Refurbished PDU
1 Year Replacement Warranty
$399.99
Back Order
Manufacturer: APC
Model Description: APC Switched Rack PDU, 2G, Zero U, 208V, (3) C19 & (21) C13
Condition: Refurbished
Part Number:AP8941
Output Voltage: 200V, 208V
Input Voltage: 200V, 208V, 230V
Warranty: 1 Year Full Replacement Warranty
AP8941 Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
200V, 208V |
||||
|
Nominal Input Voltage |
200V, 208V, 230V |
||||
|
Input Connections |
NEMA L6-30P |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
30 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Maximum Line Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
72.01 inches (1829mm, 182.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
1.81 inches (46mm, 4.6cm) |
|
Net Weight |
16.84 lbs. (7.64kg) |
|
Shipping Weight |
22.05 lbs. (10.0kg) |
|
Shipping Height |
80.31 inches (2040mm, 204.0cm) |
|
Shipping Width |
6.5 inches (165mm, 16.5cm) |
|
Shipping Depth |
4.88 inches (124mm, 12.4cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
23 - 140 °F (-5 - 60 °C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
