FREE

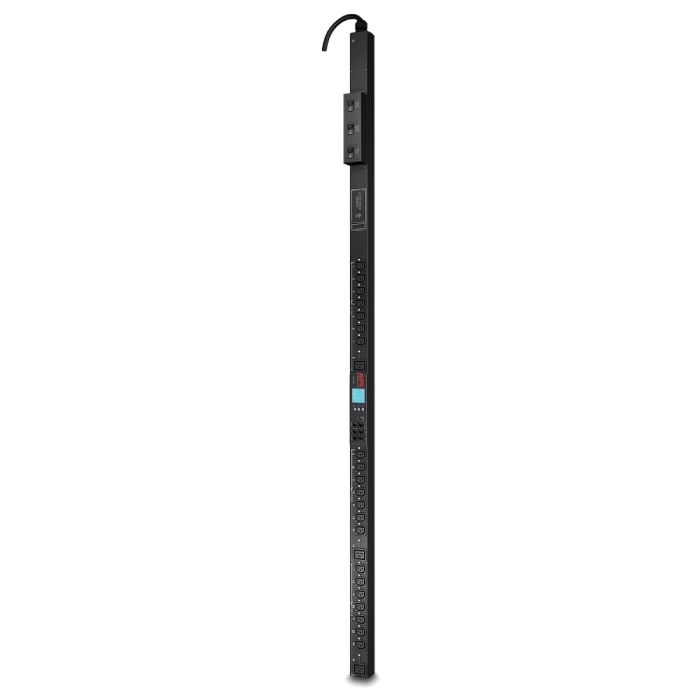

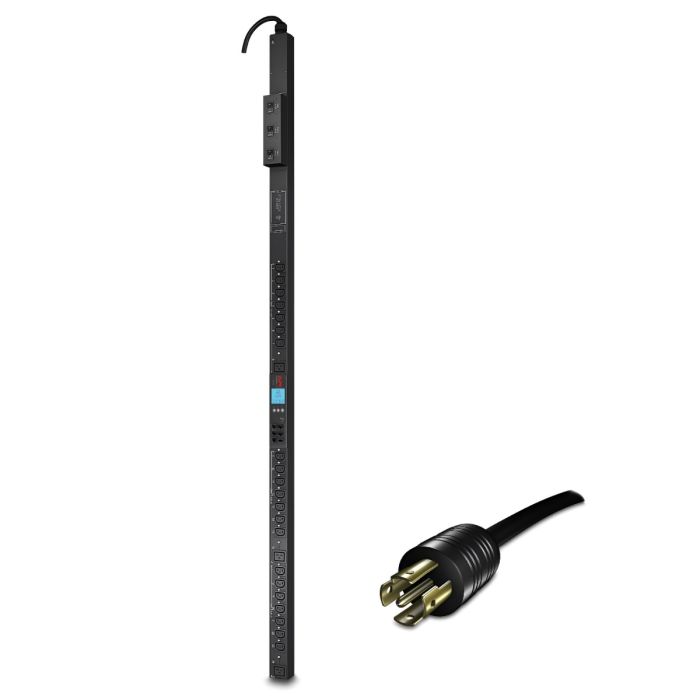

APC AP8965 Rack PDU Switched 8600W 30A 208V 3PH Output:(21)C13 & (3)C19 - Refurb
APC AP8965 Rack PDU, 8600W, Switched, 30A, 208V - 3 Phase
Model: AP8965
Input: 208V 3PH
Input Connections: NEMA L21-30P
Output:Â 208V
Output Connections: (21) C13, (3) C19
Refurbished PDU
1 Year Replacement Warranty
$399.99
Back Order
Manufacturer: APC
Model Description: APC 8.6kW Switched Rack PDU 2G, ZeroU, 3PH, 30A 208V, (16)C13
Condition: Refurbished
Part Number: AP8965
Output Voltage: 208V
Input Voltage: 208V 30A
Warranty: 1 Year Full Replacement Warranty
AP8965 Specifications:
Key Features:
|
Output Connections |
|
||||
|
Nominal Output Voltage |
208V |
||||
|
Nominal Input Voltage |
208V 3PH |
||||
|
Input Connections |
NEMA L21-30P |
||||
|
Cord Length |
6ft (1.8 meters) |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
30 |
Input:
|
Input frequency |
50/60 Hz |
|
Number of Power Cords |
1 |
|
Load Capacity |
8600VA |
|
Maximum Input Current |
30A |
|
Maximum Line Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
72.01 inches (1829mm, 182.9cm) |
|
Maximum Width |
2.2 inches (56mm, 5.6cm) |
|
Maximum Depth |
2.01 inches (51mm, 5.1cm) |
|
Net Weight |
18.03 lbs. (8.18 kg) |
|
Shipping Weight |
22.75 lbs. (10.32 kg) |
|
Shipping Height |
80.31 inches (2040mm, 204.0cm) |
|
Shipping Width |
6.5 inches (165mm, 16.5cm) |
|
Shipping Depth |
4.88 inches (124mm, 12.4cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
23 - 140°F (-5 - 60°C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
