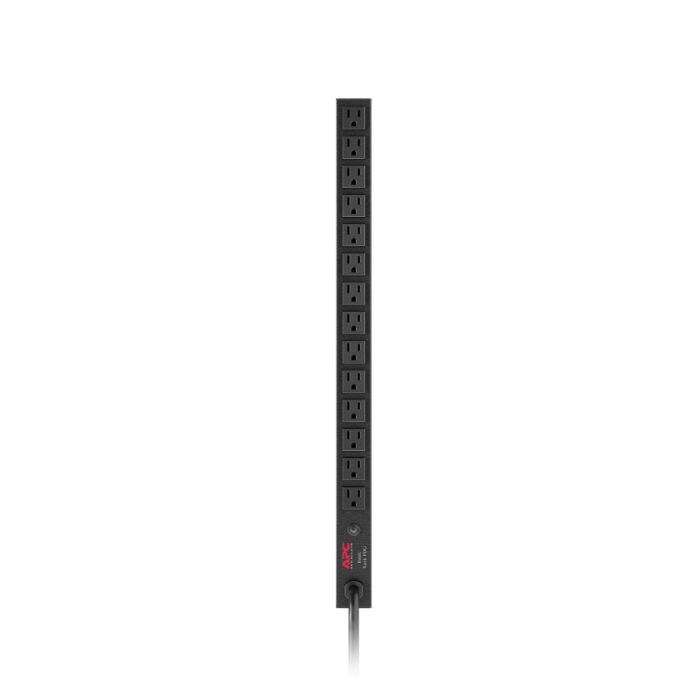

APC AP9551 Rack PDU, Basic 1920VA, Zero U, 20A, 120V, Output: (14)5-15R - Refurbished

Manufacturer: APC
Model Description: APC Basic Rack PDU, 0U Vertical, 20A, 120V, (14) NEMA 5-15R Outlets
Condition: Refurbished
Part Number: AP9551
Input Voltage: 100V / 120V AC
Output Voltage: 120V AC
Input Connection: NEMA L5-20P
Output Connections: (14) NEMA 5-15R
Load Capacity: 1920VA (16A Continuous)
Warranty: 1 Year Full Replacement Warranty Included

Description: The APC AP9551 is a basic 0U vertical rack power distribution unit (PDU) designed to provide reliable 120V power distribution for servers, networking equipment, and other rack-mounted devices. It features a NEMA L5-20P input, (14) NEMA 5-15R output receptacles, a 12 ft (3.65 m) power cord, overload protection, and a space-saving toolless vertical mounting design for standard server racks. This refurbished PDU is backed by a 1-Year Full Replacement Warranty.

APC Basic Rack PDU, Zero U, 20A 120V AP9551 - User Manual

AP9551 -  APC Basic Rack PDU Specifications:

Key Features
PDU Type	Basic Rack PDU
Form Factor	Vertical Rackmount (0U)
Input Voltage	100V / 120V
Output Voltage	120V
Input Connection	NEMA L5-20P
Cord Length	12 ft (3.65 m)
Output Connections	(14) NEMA 5-15R
Total Output Outlets	14
Load Capacity	1920VA
Phase	Single-Phase
Rack Mounting	Toolless Vertical 0U
Outlet Control	No
Application	Servers, network switches, telecom and IT equipment
Included Accessories	Rack Mounting Brackets, Toolless Mounting Kit
Output
Nominal Output Voltage	120V
Output Receptacles	(14) NEMA 5-15R
Maximum Total Current	20A
Continuous Current Rating	16A (UL Derated)
Overload Protection	Yes
Power Distribution	Basic Non-Metered Power Distribution
Outlet Configuration	Vertical
Outlet Compatibility	Standard NEMA 5-15 Plugs
Input
Nominal Input Voltage	100V / 120V
Input Voltage Range	90-132 VAC
Input Frequency	50/60 Hz
Input Connection	NEMA L5-20P
Number of Power Cords	1
Maximum Input Current	20A
Continuous Current Rating	16A
Load Capacity	1920VA
Phase	Single-Phase
Cord Length	12 ft (3.65 m)
Physical
Height	24.02 in (610 mm)
Width	1.65 in (42 mm)
Depth	1.73 in (44 mm)
Net Weight	4.85 lbs (2.2 kg)
Shipping Weight	6.44 lbs (2.92 kg)
Color	Black
Rack Height	0U
Mounting Position	Vertical
Mounting Method	Rack-Mounted
Mounting Location	Side
Housing Material	Metal
Environmental
Operating Temperature	32°F to 113°F (0°C to 45°C)
Storage Temperature	-13°F to 149°F (-25°C to 65°C)
Operating Humidity	0-95% Non-Condensing
Storage Humidity	0-95% Non-Condensing
Operating Altitude	Up to 10,000 ft (3,048 m)
Storage Altitude	Up to 50,000 ft (15,240 m)
Conformance
Certifications	UL Listed, cUL Listed, CSA
Compliance	Designed for Standard 120V Rack Power Distribution
Condition	Refurbished PDU
Warranty	1 Year Full Replacement Warranty Included
