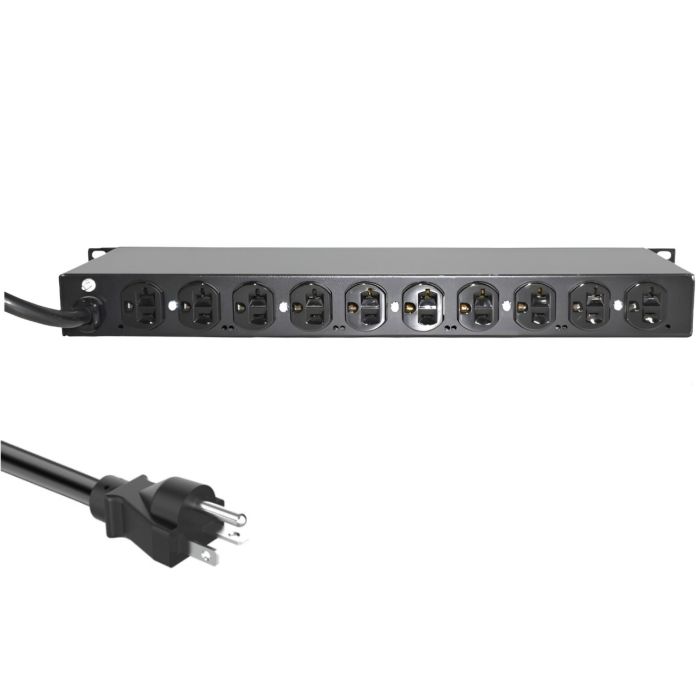

APC AP9556 Rack PDU, Basic, 1U, 20A, 120V, Output:(10)5-20R - Refurbished
APC AP9556 Rack PDU, Basic, 1U, 20A, 120V
Model: AP9556
Input: 120V
Input Connections: NEMA 5-20P
Cord Length: 12.01ft (3.7meters)
Output: 120V
Output Connections: (10) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
$179.99
Back Order
Manufacturer: APC
Model Description:Â APC Basic Rack PDU, 1U, 20A 120V, (10)5-20
Condition: Refurbished
Part Number: AP9556
Output Voltage: 120V
Input Voltage:Â 120V
Warranty:Â 1 Year Full Replacement Warranty
APC Rack PDU, Basic, 1U, 20A, 120V, (10)5-20 - User Manual
AP9556 Specifications:
Key Features:
|
Rack Height |
1U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
120V |
||
|
Nominal Input Voltage |
120V |
||
|
Input Connections |
NEMA 5-20P |
||
|
Cord Length |
12.01ft (3.7meters) |
Output:
|
Always on Outlets |
10 |
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
20 |
Input:
|
Number of Power Cords |
1 |
|
Load Capacity |
2400VA |
|
Maximum Input Current |
20A |
|
Maximum Line Current |
20A |
Physical:
|
Maximum Height |
1.75 inches (45mm, 4.45cm) |
|
Maximum Width |
17.0 inches (432mm, 43.18cm) |
|
Maximum Depth |
4.0 inches (102mm, 10.16cm) |
|
Net Weight |
4.92 lbs. (2.23kg) |
|
Shipping Weight |
6.11 lbs. (2.77kg) |
|
Shipping Height |
2.75 inches (70mm, 6.99cm) |
|
Shipping Width |
19.0 inches (483mm, 48.26cm) |
|
Shipping Depth |
13.5 inches (343mm, 34.3cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 113°F (0 - 45°C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
