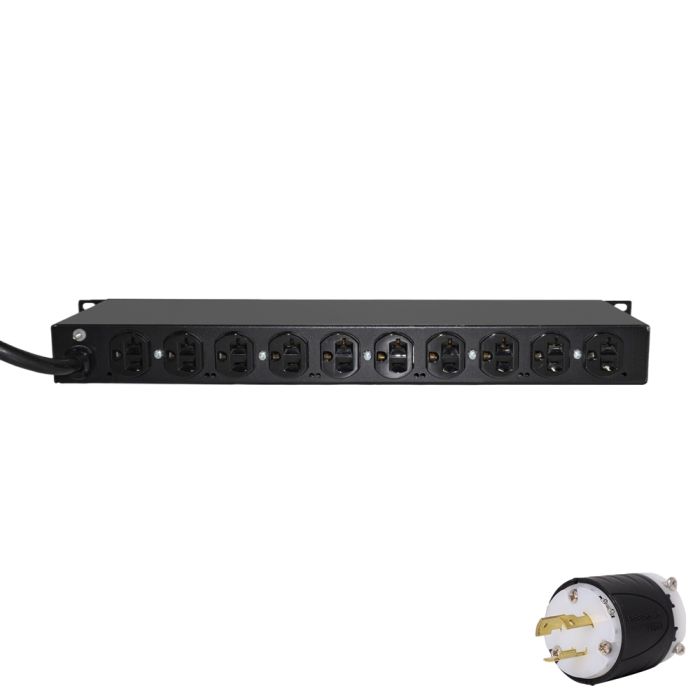

APC AP9557 Basic Rack PDU 1U, 2400VA 20A 120V Input:L5-20P, Output:(10)5-20 - Refurbished

APC Basic Rack PDU 1U, 20A, 120V, L5-20P Input, (10)5-20 Output
Model: AP9557
Input: 120V, 20A, L5-20P
Output: (10) 5-20R
Refurbished PDU
1 Year Warranty

Extended Warranty

1 Year Included

2 Year + $26.00

3 Year + $45.50

In stock

Quantity

Manufacturer: APC
Model: AP9557 APC Basic Rack PDU 1U, 20A, 120V, (10)5-20; L5-20P
Condition: Refurbished
Part Number: AP9557
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The AP9557 is refurbished with a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

AP9557 APC Basic Rack PDU 1U, 20A - User Manual

AP9557 Specifications:

Output:

Nominal Output Voltage

120V

Maximum Total Current Draw per Phase

20A

Output Connections

(10) NEMA 5-20R

Always on Outlets

Overload Protection

Yes

Input:

Nominal Input Voltage

120V

Input Frequency

50/60 Hz

Input Connections

NEMA L5-20P

Cord Length

3.66 meters

Number of Power Cords

Maximum Line Current per phase

20A

Maximum Input Current per phase

20A

Load Capacity

2400 VA

Physical:

Net Weight	2.24 KG
Maximum Height	43.00 mm
Maximum Width	432.00 mm
Maximum Depth	102.00 mm
Shipping Weight	2.78 KG
Shipping Height	70.00 mm
Shipping Width	483.00 mm
Shipping Depth	343.00 mm
Color	Black
Units per Pallet	100.00

Environmental:

Operating Environment	0 - 45 °C
Operating Relative Humidity	0 - 95%
Operating Elevation	0-3000 meters
Storage Temperature	-25 - 65 °C
Storage Relative Humidity	0 - 95%
Storage Elevation	0-15000 meters
