FREE

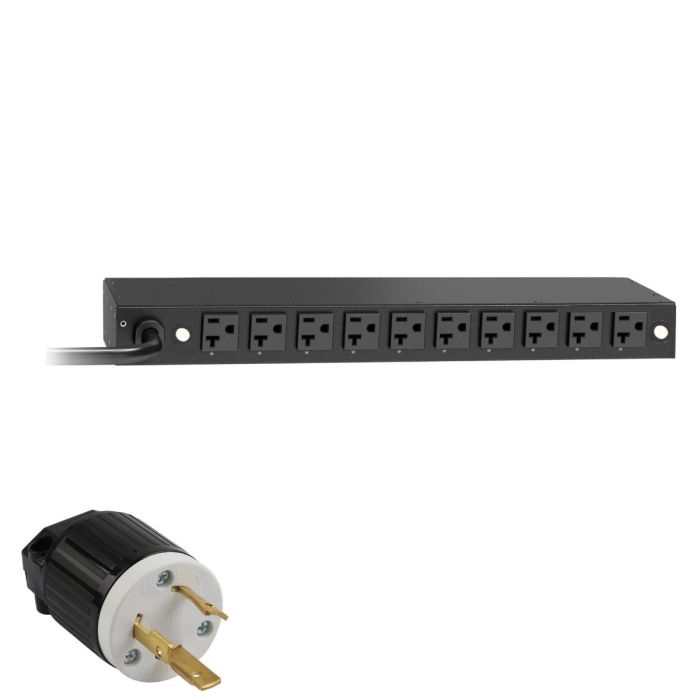

APC AP9560 Basic Rack PDU 1U 2880VA 120V 30A, L5-30P, Output:(10)5-20R - Refurbished
APC AP9560 Rack PDU, Basic, 1U, 30A, 120V
Model: AP9560
Input: 100V, 120V
Input Connections: NEMA L5-30P
Cord Length: 12.01ft (3.7meters)
Output: 120V
Output Connections: (10) NEMA 5-20R
Refurbished PDU
1 Year Replacement Warranty
$189.99
Back Order
Manufacturer: APC
Model Description:Â APC Basic Rack PDU, 1U, 30A 120V, (10)5-20
Condition: Refurbished
Part Number: AP9560
Output Voltage: 120V
Input Voltage:Â 100V, 120V 30A
Warranty:Â 1 Year Full Replacement Warranty
AP9560 Specifications:
Key Features:
|
Rack Height |
1U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
120V |
||
|
Nominal Input Voltage |
100V, 120V |
||
|
Input Connections |
NEMA L5-30P |
||
|
Cord Length |
12.01ft (3.7meters) |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
24 |
Input:
|
Input frequency |
50/60 Hz |
|
Acceptable Input Voltage |
90 - 132VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
2880VA |
|
Maximum Input Current |
30A |
|
Maximum Line Current |
24A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
1.73 inches (44mm, 4.4cm) |
|
Maximum Width |
17.6 inches (447mm, 44.7cm) |
|
Maximum Depth |
2.24inches (57mm, 5.7cm) |
|
Net Weight |
5.51 lbs. (2.5kg) |
|
Shipping Weight |
8.02 lbs. (3.64kg) |
|
Shipping Height |
5.98 inches (152mm, 15.2cm) |
|
Shipping Width |
19.13 inches (486mm, 48.6cm) |
|
Shipping Depth |
6.97 inches (177mm, 17.7cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
5 - 113°F (-15 - 45°C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
