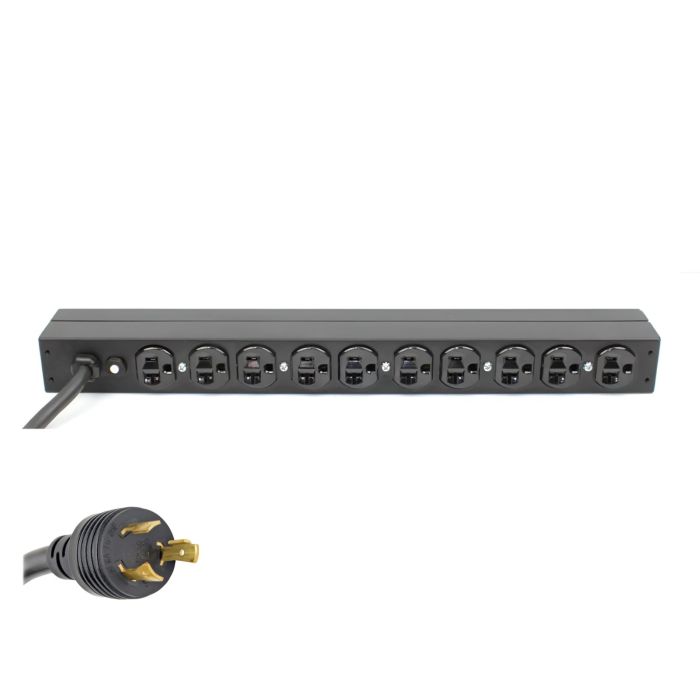

APC AP9564 Rack PDU Basic, 1U, 120V 20A Input:L5-20P, Output:(10)5-20R - Refurbished
APC Basic Rack PDU 1U 20A 120V (10) NEMA 5-20R
Model: AP9564
Input: NEMA L5-20P (100–120V - 20A)
Output: (10) NEMA 5-20R
1920VA Load Capacity - 16A Rated Current
Basic PDU - No Network Management
Horizontal 1U Rackmount Design
Refurbished PDU
1 Year Warranty Included
$129.99
In stock
Manufacturer: APC
Model: APC Basic Rack PDU, 1U, 20A, 120V, (10) NEMA 5-20R
Condition: Refurbished PDU
Part Number: AP9564
Load Capacity: 1920VA
Input: NEMA L5-20P, 100–120V, 20A Maximum
Output: (10) NEMA 5-20R, 120V
PDU Type: Basic
Rated Current: 16A
Maximum Input Current: 20A
Form Factor: Rackmount 1U
Warranty: 1 Year Full Replacement Warranty
Â
Â
APC AP9564 Basic Rack PDU, 1U, 120V 20A - User ManualÂ
Â
AP9564 - APC Basic Rack PDU Specifications:
| Main | Â | Â |
| Manufacturer | APC / Schneider Electric | Â |
| Model / Part Number | AP9564 | Â |
| Product Type | Rack Power Distribution Unit (PDU) | Â |
| PDU Type | Basic | Â |
| Form Factor | Horizontal Rackmount | Â |
| Rack Height | 1U | Â |
| Load Capacity | 1920VA | Â |
| Main Input Voltage | 100V / 120V | Â |
| Main Output Voltage | 120V | Â |
| Rated Current | 16A | Â |
| Maximum Current Draw | 20A | Â |
| Network Management | None | Â |
| Remote Outlet Switching | No | Â |
| Load Monitoring | No | Â |
| Â | Â | Â |
| Input | Â | Â |
| Nominal Input Voltage | 100V / 120V | Â |
| Input Voltage Range | 100–120V AC |  |
| Input Frequency | 50/60 Hz | Â |
| PDU Input |
NEMA L5-20P |
 |
| Input Current Limit | 20A | Â |
| Rated Current | 16A | Â |
| Maximum Current Draw | 20A | Â |
| Number of Power Cords | 1 | Â |
| Power Cord Length | 11.98 ft (3.65 m) | Â |
| Input Phase | Single-Phase | Â |
| Â | Â | Â |
| Output | Â | Â |
| Nominal Output Voltage | 120V | Â |
| Total Output Receptacles | 10 | Â |
| Output Connections | (10) NEMA 5-20R |  |
| Maximum Total Current | 16A continuous | Â |
| Load Capacity | 1920VA | Â |
| Outlet Switching | No | Â |
| Individual Outlet Control | No | Â |
| Remote Reboot | No | Â |
| Outlet-Level Metering | No | Â |
| Â | Â | Â |
| Communications & Management | Â | Â |
| Network Management | None | Â |
| Network Management Card | Not supported / not required for Basic PDU operation | Â |
| Ethernet Port | No | Â |
| SNMP Management | No | Â |
| Web Interface | No | Â |
| Remote Monitoring | No | Â |
| Remote Outlet Control | No | Â |
| Individual Outlet Switching | No | Â |
| Load Monitoring | No | Â |
| Environmental Monitoring | No | Â |
| Â | Â | Â |
| Physical | Â | Â |
| Color | Black | Â |
| Rack Height | 1U | Â |
| Mounting Mode | Rack-Mounted | Â |
| Mounting Position | Horizontal | Â |
| Mounting Location | Front / Rear | Â |
| Height | 1.7 in (44 mm) | Â |
| Width | 17.6 in (447 mm) | Â |
| Depth | 2.2 in (57 mm) | Â |
| Net Weight | 5.5 lb (2.5 kg) | Â |
| Â | Â | Â |
| Environmental | Â | Â |
| Operating Temperature | 23–113°F (-5–45°C) |  |
| Operating Relative Humidity | 0–95% |  |
| Operating Altitude | 0–10,000 ft |  |
| Storage Temperature | -13–149°F (-25–65°C) |  |
| Storage Relative Humidity | 0–95% |  |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |  |
| Â | Â | Â |
| Conformance | Â | Â |
| Certifications | cUL Listed, UL Listed | Â |
| Â | Â | Â |
| Condition & Warranty | Â | Â |
| Condition | Refurbished PDU | Â |
| Warranty | 1 Year Full Replacement Warranty | Â |
