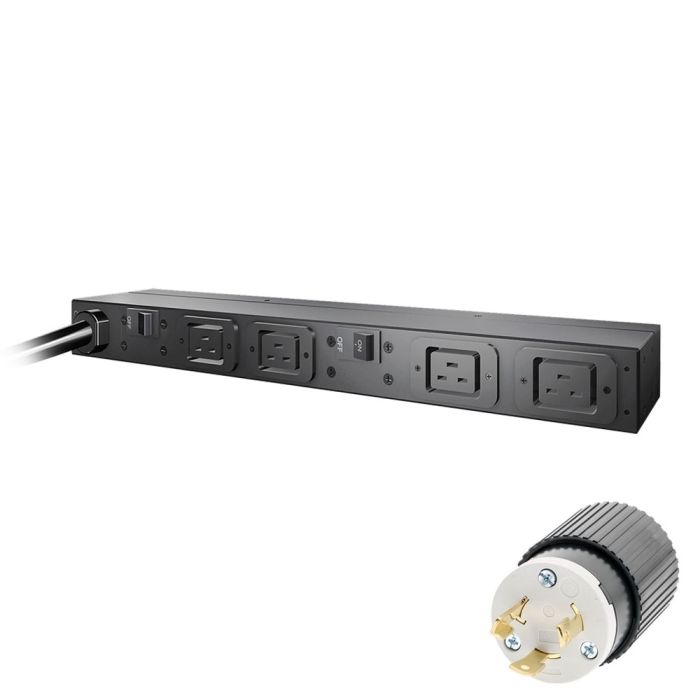

APC AP9570 Rack PDU Basic RM 1U 30A 4992VA 208V Input:L6-30P, Output:(4)C19 - Refurbished
APC AP9570 Rack PDU, Basic, 1U, 30A, 208V 4992VAÂ
Model: AP9570
Input: 208V 30A
Input Connections: NEMA L6-30P
Output:Â 208V
Output Connections: (4) C19
Refurbished PDU
1 Year Replacement Warranty
$169.99
In stock
Manufacturer: APC
Model Description:Â APC Basic Rack PDU, 1U, 30A 208V, (4) IEC 320 C19
Condition: Refurbished
Part Number: AP9570
Output Voltage:Â 208V
Input Voltage:Â 208V 30A
Warranty:Â 1 Year Full Replacement Warranty
AP9570 Specifications:
Key Features:
|
Rack Height |
1U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
208V |
||
|
Nominal Input Voltage |
200V, 208V, 230V |
||
|
Input Connections |
NEMA L6-30P |
Output:
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
24 |
Input:
|
Input frequency |
50/60 Hz |
|
Acceptable Input Voltage |
200 - 240VAC |
|
Number of Power Cords |
1 |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Maximum Line Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
1.73 inches (44mm, 4.4cm) |
|
Maximum Width |
17.6 inches (447mm, 44.7cm) |
|
Maximum Depth |
2.52 inches (64mm, 6.4cm) |
|
Net Weight |
6.02 lbs. (2.73kg) |
|
Shipping Weight |
8.51 lbs. (3.86kg) |
|
Shipping Height |
2.76 inches (70mm, 7.0cm) |
|
Shipping Width |
18.27 inches (464mm, 46.4cm) |
|
Shipping Depth |
9.02 inches (229mm, 22.9cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 113°F (-0 - 45°C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3048 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
