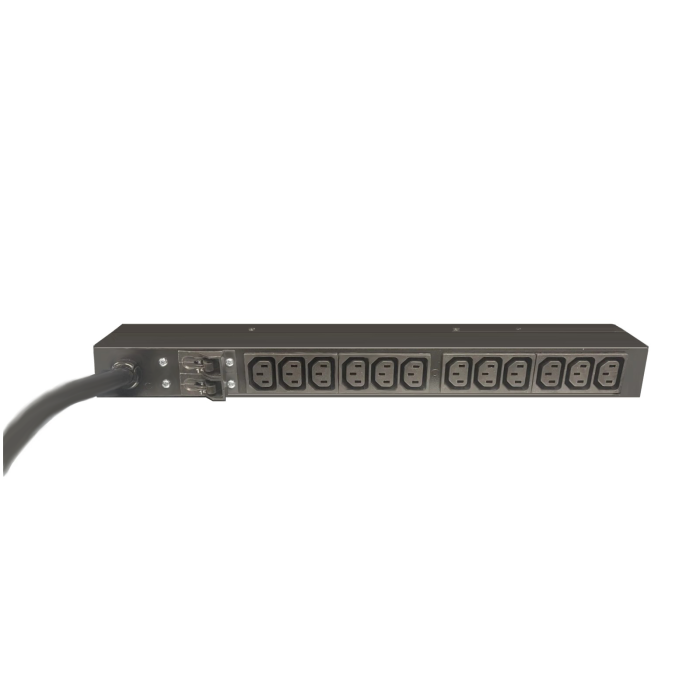

APC AP9571 Rack PDU, Basic, Rack-Mount 1U, 30A, 208V, L6-30P, (12)C13 - Refurbished
APC AP9571 Rack PDU, Basic, 1U, 30A, 208V, L6-30P
Model: AP9571
Input: 208V
Input Connections: L6-30P
Cord Length: 12.01ft (3.7 meters)
Output: 208V
Output Connections: (12) C13
Refurbished PDU
1 Year Replacement Warranty
$159.99
In stock
Manufacturer: APC
Model Description: APC Basic Rack PDU, 1U, 30A 208V, (12) C13
Condition: Refurbished
Part Number: AP9571
Output Voltage: 208V
Input Voltage: 208V 30A
Warranty: 1 Year Full Replacement Warranty
AP9571 Specifications:
Key Features:
|
Rack Height |
1U | ||
|
Output Connections |
|
||
|
Nominal Output Voltage |
208V |
||
|
Nominal Input Voltage |
208V |
||
|
Input Connections |
NEMA L6-30P |
||
|
Cord Length |
12.01ft (3.7 meters) |
Output:
|
Always on Outlets |
12 |
|
Overload Protection |
Yes |
|
Maximum Total Current Draw |
24 |
Input:
|
Input frequency |
50/60 Hz |
|
Acceptable Input Voltage |
200 - 240VAC |
|
Number of Power Cords |
1 |
|
Input Power |
4992 Watts |
|
Load Capacity |
4992VA |
|
Maximum Input Current |
30A |
|
Maximum Line Current |
30A |
|
Regulatory Derated Input Current (North America) |
24A |
Physical:
|
Maximum Height |
1.69 inches (43mm, 4.3cm) |
|
Maximum Width |
17.52 inches (445mm, 44.5cm) |
|
Maximum Depth |
2.52 inches (64mm, 6.4cm) |
|
Net Weight |
5.62 lbs. (2.55kg) |
|
Shipping Weight |
8.02 lbs. (3.64kg) |
|
Shipping Height |
5.98 inches (152mm, 15.2cm) |
|
Shipping Width |
19.13 inches (486mm, 48.6cm) |
|
Shipping Depth |
6.97 inches (177mm, 17.7cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
5 - 113°F (-15 - 45°C) |
|
Operating Relative Humidity |
5 - 95% |
|
Operating Elevation |
0 - 15000ft (0 - 4572 meters) |
|
Storage Temperature |
-25 - 65°C |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Elevation |
0 - 50000ft (0 - 15240 meters) |
