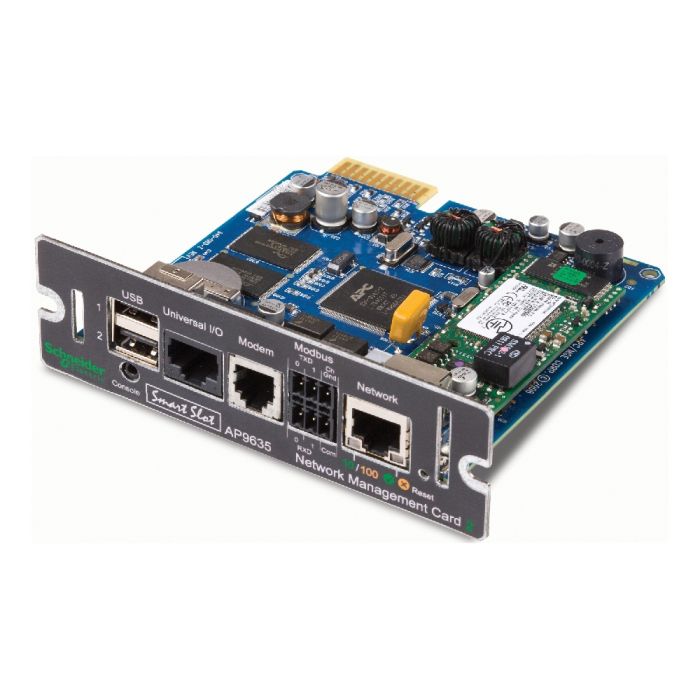

APC AP9635 UPS NETWORK MANAGEMENT CARD 2 - Refurbished

APC AP9635 Nework Management Card 2 with Environmental Monitoring, Out of Band Access, Modbud
Model: AP9635
Compatible with: SU, SUA, SMT, SMX UPS models
Refurbished
1 Year Warranty included

In stock

Model: AP9635
Model Description: UPS Network Management Card 2 with Environmental Monitoring, Out of Band Access and Modbus
Manufacturer: APC
Condition: Refurbished
Warranty: 1 year replacement warranty
Includes: AP9630 Management Card. No other accessories included.

The AP9635 Network Management Card encompasses all the features of the AP9630/AP9631 Network Management Cards, along with the following enhancements:

  • USB Ports: Includes two USB ports for upgrading the NMC and UPS firmware using a USB flash drive.
  • Universal Input/Output Port: This port supports connections to:
    • Temperature sensors (AP9335T) or temperature/humidity sensors (AP9335TH).
    • Relay input/output connectors for two input contacts and one output relay, using the optional AP9810 Dry Contact I/O Accessory.
  • Out of Band Management: Provides dial-in access via modem to the Management Card’s Console Interface.
  • Modbus Support: Adds Modbus RTU support via the serial RS485 port, in addition to Modbus TCP/IP




APC AP9635 Network Management Card WEB/SNMP User's Manual


APC AP9635 Features and Benefits:

Communications:
Protocols:
HTTP,HTTPS,IPv4,IPv6,NTP,SMTP,SNMP v1,SNMP v3,SSH V1,SSH V2,SSL,TCP/IP,Telnet
IPv6 Support  Capable of operating on a network using IPv6 protocol
Device Encryption Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
Localization User interface available in major local languages
Command line interface Offers Telnet or SSH for remote management access
Manageability

Notification Be notified of problems to ensure crucial situations are dealt with in a timely manner
Scheduling Customize shut down and reboot of connected equipment and UPSs
Run command file Run command file on shutdown sequence as well as start-up sequence
Data logging Identify problematic trends before they escalate or export the data log for analysis
Event logging Pinpoint the timing and sequence of events leading up to an incident with the event log
Integrates with InfraStruXure Central An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Enterprise management system compatible Make device information available to your preferred enterprise management system by forwarding SNMP traps (events)
Total Cost of Ownership
Browser Accessible View the user interface with a browser. Provides quick access from anywhere on a secure network
Flash upgradeable firmware Install maintenance releases of firmware remotely using FTP
Availability
Reboot equipment remotely Saves dispatching technicians to remote locations
Protection
Password Security User-selectable password protection prevents unauthorized access
Three-tier user access Control user access on three levels including read only, device and administrator
Radius support Use an existing radius server to securely authenticate, authorize, and account for your APC device
PowerChute Network Shutdown Reliable network-based shutdown of multiple servers
Compatible with Smart-Slot enabled UPSs Compatible with all APC SmartSlot UPSs, including Smart-UPS and Symmetra units
