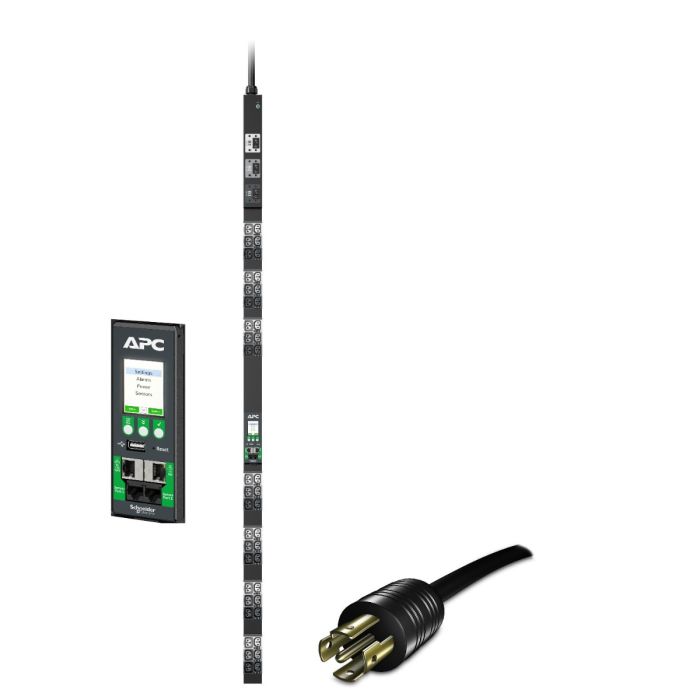

APC APDU10351ME Rack Metered PDU 8600W 30A 208V Out:(21)C13/C15, (21)C19/C21 Refurbished
APC NetShelter Advanced Metered Rack PDU 8600W 30A 208V 3-Phase w/ 42 Outlets
Model: APDU10351ME
Input: 208V 3-Phase
Input Connection: NEMA L21-30P - 30A
Output Voltage: 208V
Output Connections: (21) IEC C13/C15, (21) IEC C19/C21
Advanced Metered PDU with Network Management
10/100/1000 Ethernet Monitoring Support
Refurbished PDU
1 Year Replacement Warranty
$1,299.99
In stock
Manufacturer:Â APC
Model: APDU10351ME
Description model: APC NetShelter Advanced Metered Rack PDU, 0U, 30A, 208V 3-Phase, 8.6kW
Input: NEMA L21-30P - 30A 208V
Output: (21) IEC C13/C15, (21) IEC C19/C21
Condition: Refurbished PDU
Warranty: 1 Year Full Replacement Warranty, additional warranty available
Description: APC APDU10351ME NetShelter Advanced Metered Rack PDU, 0U vertical rackmount, 8.6kW, 30A, 208V 3-Phase. Input connection: NEMA L21-30P. Output connections: (21) IEC C13/C15 and (21) IEC C19/C21 outlets. Provides real-time load monitoring and advanced network management through integrated Gigabit Ethernet with Web, SNMP and remote monitoring support. Designed for high-density data center and enterprise rack environments with space-saving ZeroU installation. Refurbished PDU. 1 Year Full Replacement Warranty Included.
Â
Â
 APC NetShelter Advanced Metered Rack PDU, 0U, 30A, 208V 3-Phase - User ManualÂ
Â
Â
APDU10351ME - APC NetShelter Advanced Metered Rack PDU Specifications:Â
Â
|
Key Features: |
 |
|
Rack Height |
Toolless 0U Vertical Mount |
|
PDU Type |
Advanced Metered Rack PDU |
|
Form Factor |
Vertical Rackmount (0U) |
|
Phase |
3-Phase |
|
Load Capacity |
8600VA / 8.6kW |
|
Nominal Input Voltage |
208V 3-Phase |
|
Nominal Output Voltage |
208V |
|
Input Connection |
NEMA L21-30P |
|
Cord Length |
5.9 ft (1.8 m) |
|
Outlet Switching |
Yes (per outlet / managed) |
|
Remote Monitoring |
Yes |
|
Communication Support |
Gigabit Ethernet, SNMP, Redfish, Web UI, CLI, SSH |
|
Metering |
Real-time power and load monitoring |
|
Communication Support |
SNMP, Redfish, Web UI, CLI |
|
 |
 |
|
 |
 |
|
Output: |
 |
|
Output Voltage |
208V (3-Phase) |
|
Total Capacity |
8600VA / 8.6kW |
|
Maximum Current |
30A |
|
Output Connections |
(21) IEC C13/C15 + (21) IEC C19/C21 |
|
Total Outlets |
42 |
|
Outlet Control |
Individual remote switching (ON/OFF) |
|
Outlet Reboot |
Remote power cycling supported |
|
Load Monitoring |
Real-time current and load monitoring |
|
Overload Protection |
Yes |
|
Phase Distribution |
3-Phase load balancing support |
|
 |
 |
|
 |
 |
|
Input: |
 |
|
Input Voltage |
208V 3-Phase |
|
Input Voltage Range |
200–240V AC |
|
Input Connection |
NEMA L21-30P |
|
Input Current (Max) |
30A |
|
Rated Input Current |
24A (North America derated) |
|
Frequency |
50/60 Hz |
|
Power Capacity |
8600VA / 8.6kW |
|
Power Cord |
1 pre-installed |
|
Phase Type |
3-Phase power distribution |
|
Input Protection |
Internal overload protection via PDU system limits |
|
Efficiency Handling |
Optimized for balanced 3-phase rack loads |
|
 |
 |
|
 |
 |
|
Physical: |
 |
|
Height |
72.01 in (1829 mm) |
|
Width |
2.2 in (56 mm) |
|
Depth |
2.01 in (51 mm) |
|
Net Weight |
18.03 lb (8.18 kg) |
|
Color |
Black |
|
Mounting |
Vertical 0U Rack (Toolless) |
|
Units per Pallet |
48 |
|
 |
 |
|
 |
 |
|
Communications & Management: |
 |
|
Network Interface |
Built-in Gigabit Ethernet (10/100/1000BASE-T) |
|
Management Access |
Web UI, SNMP, SSH, CLI |
|
Supported Protocols |
HTTP, HTTPS, SNMP, SSH, Telnet, Redfish |
|
Remote Monitoring |
Full real-time rack power monitoring |
|
Outlet Control |
Individual outlet switching and reboot control |
|
Power Management |
Load monitoring, threshold alerts, and energy tracking |
|
Event Notifications |
Email alerts and SNMP traps |
|
Data Logging |
Power usage, load events, and alarm history |
|
Security |
Password protection, HTTPS/SSH encryption |
|
User Access |
Multi-user role-based access control |
|
Firmware Updates |
Remote firmware upgrade via network |
|
Integration |
Compatible with APC enterprise management platforms |
|
Environmental Support |
Compatible with APC temperature/humidity sensors |
|
Local Indicators |
LED status for network and load condition |
|
Serial Configuration |
Supported for initial setup and local configuration |
|
Management Protocol Support |
Enterprise data center integration support |
|
Power Monitoring |
Real-time monitoring of current, load status, and alarms |
|
Remote Reboot Capability |
Supported for individual connected devices |
|
 |
 |
|
 |
 |
|
Environmental: |
 |
|
Operating Temperature |
-5°C to 60°C (23°F to 140°F) |
|
Storage Temperature |
-25°C to 65°C (-13°F to 149°F) |
|
Operating Humidity |
5% to 95% |
|
Storage Humidity |
5% to 95% |
|
Operating Elevation |
0 – 10,000 ft |
|
Storage Elevation |
0 – 50,000 ft |
|
Protection Rating |
IP44 |
