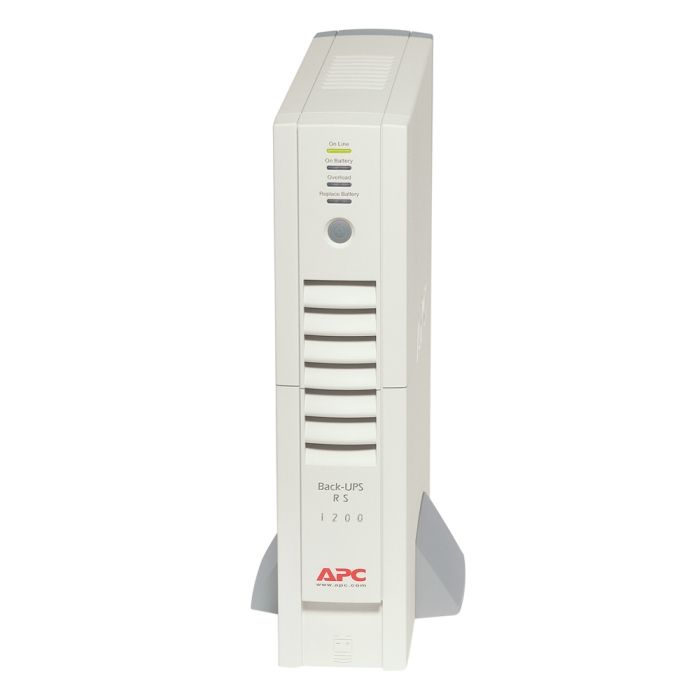

APC Back-UPS 1200VA 780W Tower 120V BR1200 - Refurbished
APC Back-UPS 1200VA 780W
Model: BR1200
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup), (2) NEMA 5-15R (Surge Protection)
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$149.99
Out of stock
Manufacturer: APC
Model: APC Back-UPS 1200VA 780W Tower 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: BR1200
Maximum output: 780W / 1200VA
Typical backup time at half load: 17.4 minutes (390 Watts)
Typical backup time at full load: 6.2 minutes (780 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS 1200VA 780W Tower BR1200 Manual
BR1200 - APC Back-UPS 1200VA 780W Tower Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Rated Power in W |
780W |
||||
|
Rated Power in VA |
1200VA |
||||
|
Output Connections |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
1.83 m |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Beige |
|
Height |
37.1 cm |
|
Width |
8.6 cm |
|
Depth |
33.3 cm |
|
Net Weight |
10 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Network Frequency |
47 - 63 Hz |
|
Input Voltage Limits |
78 - 152V adjustable |
Output:
|
Maximum configurable power in W |
780W |
|
UPS Type |
Line Interactive |
|
Maximum Output Current |
12A |
|
Maximum Configurable Power in VA |
1200VA |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Ambient air Temperature for Operation |
0 - 40°C
|
|
Relative Humidity |
0 - 95% |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
-5 - 45°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Altitude |
0.00 - 15240.00 m |
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
180 Btu/h |
Batteries & Runtime:
|
Number of Battery Filled Slots |
1
|
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
15 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Charger Power |
14 W rated |
|
Battery Power in VAH |
216 VAh Runtime |
|
Battery Life |
4 - 6 year(s) |
|
Replacement Battery |
RBC33 |
|
Extended Runtime |
0 |
Communications & Management:
|
Control Panel |
LED status display with on line: on battery: replace battery and overload indicators
|
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
420 J
|
|
Noise Suppression |
Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449 |
