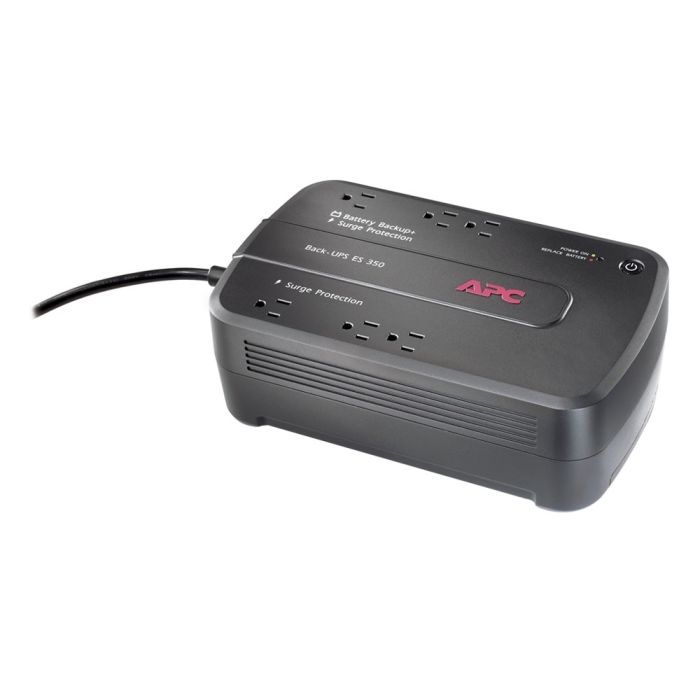

APC Back-UPS 350VA 200W 120V Output: (6) NEMA 5-15R, BE350G - Refurbished
APC Back-UPS 350VA 200W BE350G
Model: BE350G
Input: NEMA 5-15P (120V - 15A)
Output: (3) NEMA 5-15R (Surge), (3) NEMA 5-15R (Battery & Surge)
Standby UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$79.99
Back Order
Manufacturer: APC
Model: APC Back-UPS 350VA 200W 120V
Condition: New batteries, refurbished UPS
Part Number: BE350G
Maximum output: 200W / 350VA
Typical backup time at half load: 5.6 minutes (100 Watts)
Typical backup time at full load: 24 seconds (200 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS 350VA 200W 120V BE350G - User Manual
Â
Â
BE350G - APC Back-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
200W |
||||
|
Rated Power in VA |
350VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
5 ft (1.52 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Charcoal |
|
Height |
3.46 in (8.8 cm) |
|
Width |
6.30 in (16 cm) |
|
Depth |
11.34 in (28.8 cm) |
|
Net Weight |
9.04 lb(US) (4.1 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-Mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
88 - 139 V |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
200W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Topology |
Standby |
|
Waveform Type |
Stepped Approximation to a Sinewave |
|
Maximum Configurable Power in VA |
350VA |
|
Transfer Time |
8ms typical : 12ms maximum |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Operating altitude |
0 - 10000 ft |
|
Relative Humidity |
5 - 95 % |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
5 - 95% |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
45 dBA |
|
Heat Dissipation |
14 Btu/h |
Batteries & Runtime:
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
6 W rated |
|
Battery Power in VAH |
31 VAh runtime |
|
Battery Life |
3-5 years |
|
Replacement Battery |
RBC35 |
Communications & Management:
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
|
Control Panel |
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault |
Surge Protection and Filtering:
|
Surge Energy Rating |
365 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee |
