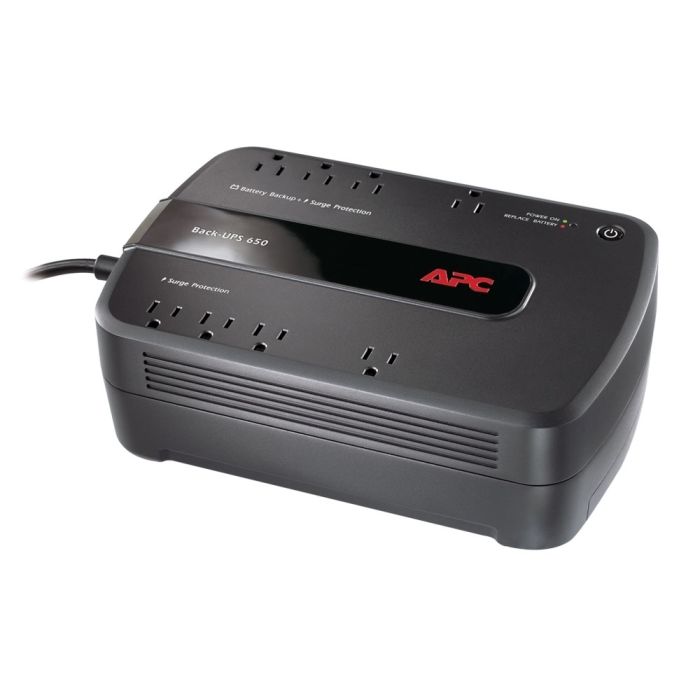

APC Back-UPS 650VA 390W 120V 15A Output: (8) NEMA 5-15R, BE650G1 - Refurbished
APC Back-UPS 650VA 390W
Model: BE650G1
Input: NEMA 5-15P (120V - 15A)
Output: (4) NEMA 5-15R (Surge Protection), (4) NEMA 5-15R (Battery Backup)
Standby UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$149.99
Back Order
Manufacturer: APC
Model: APC Back-UPS 650VA 390W 120V
Condition: New Batteries, Refurbished UPS
Part Number: BE650G1
Maximum output: 390W / 650VA
Typical backup time at half load: 13.1 minutes (195 Watts)
Typical backup time at full load: 3.8 minutes (390 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS 650VA 390W 120V BE650G1 - User Manual
BE650G1 - APC Back-UPS 650VA Specifications
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated power in W |
390W |
||||
|
Rated Power in VA |
650VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
5 ft (1.52 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Max runtime |
62 min |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.46 in (8.8 cm) |
|
Width |
7.09 in (18 cm) |
|
Depth |
11.89 in (30.2 cm) |
|
Net Weight |
13.67 lb(US) (6.2 kg) |
|
Mounting Location |
No Preference |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not Rack-Mountable |
|
USB Compatible |
Yes |
Input:
|
Network Frequency |
60 Hz +/- 3 Hz |
|
Input Voltage Limits |
90Â - 140V |
|
Maximum Input Current |
12A |
Output:
|
Maximum Configurable Power in W |
390W |
|
Output Frequency |
60 Hz +/- 3 Hz sync to mains |
|
UPS Type |
Standby |
|
Wave Type |
Stepped Approximation to a Sinewave |
|
Maximum Output Current |
12A |
|
Maximum Configurable Power in VA |
650VA |
|
Transfer Time |
8 ms typical : 12 ms maximum |
Conformance:
|
Product Certifications |
California Energy Commission (CEC) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
5Â - 95 % |
|
Operating Altitude |
0...10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
5Â - 95 % |
|
Storage Altitude |
0 - 50000 ft (0.00…15240.00 m) |
|
Acoustic Level |
45 dBA |
Batteries & Runtime:
|
Battery Recharge Time |
24h
|
|
Number of Battery Replacement Quantity |
1 |
|
Battery Voltage |
12V |
|
Battery Capacity |
9.0 Ah |
|
Battery Charger Power |
3 W rated |
|
Battery Power in VAH |
79 VAh runtime |
|
Battery Life |
2Â - 5 year(s) |
|
Replacement Battery |
RBC17 |
|
Extended Runtime |
0 |
Communications & Management:
|
Control Panel |
LED status display with on line : on battery : replace battery and building wiring fault |
Surge Protection and Filtering:
|
Surge Energy Rating |
340 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
Let Through Voltage Rating |
330 V |
