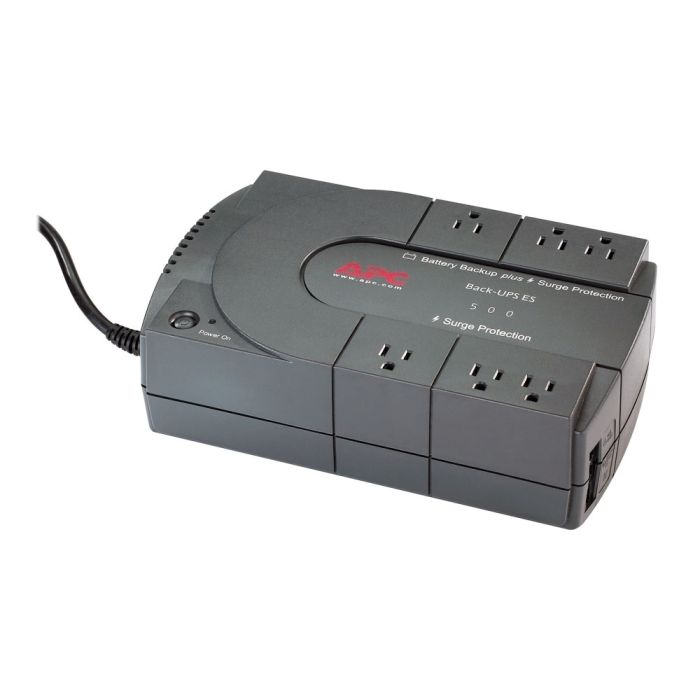

APC Back-UPS ES 500VA 300W 120V BE500U - Refurbished
APC Back-UPS ES 500VA 300W
Model: BE500U
Input: NEMA 5-15P (120V - 15A)
Output: (3) NEMA 5-15R (Surge Protection), (3) NEMA 5-15R (Battery Backup)
Standby UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$35.99
Out of stock
Manufacturer: APC
Model: APC Back-UPS ES 500VA 300W 120V
Condition: New batteries, refurbished UPS
Part Number: BE500U
Maximum output: 300W / 500VA
Typical backup time at half load: 14.4 minutes (150 Watts)
Typical backup time at full load: 4.4 minutes (300 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS ES 500VA 300WÂ BE500U Manual
BE500U - APC Back-UPS ES Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
rated power in W |
300W |
||||
|
Rated Power in VA |
500VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of power module |
200 |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.31 in (8.4 cm) |
|
Width |
10.91 in (27.7 cm) |
|
Depth |
6.89 in (17.5 cm) |
|
Net Weight |
13.23 lb(US) (6 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Efficiency at full load |
88 - 139 V |
Output:
|
Max Configurable Power (Watts) |
300W |
|
Topology |
Standby |
|
Maximum Output Current |
12 A |
|
Maximum Configurable Power in VA |
500VA |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0 - 95 % |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Altitude |
0 - 10000 ft (0.00 - 3048.00 m) |
|
Acoustic Level |
40 dBA
|
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
24 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
3 W rated |
|
Battery power in VAH |
84 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC2 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
LED Status display with On Line : On Battery |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
365 J
|
|
Data Line Protection |
RJ11 modem/fax/DSL protection (two wire single line)
|
