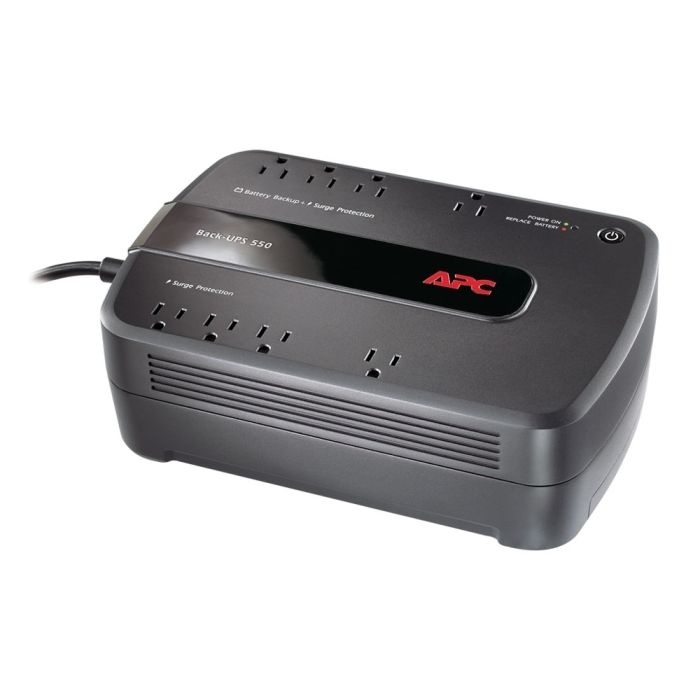

APC Back-UPS ES 550VA 330W 120V Output: (8) NEMA 5-15R, BE550G-CN - Refurbished
APC Back-UPS ES 550VA 330W
Model: BE550G-CN
Input: NEMA 5-15P (120V - 15A)
Output: (4) NEMA 5-15R (Battery & Surge), (4) NEMA 5-15R (Surge)
Standby UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$109.99
In stock
Manufacturer: APC
Model: APC Back-UPS ES 550VA 330W 120V
Condition: New batteries, refurbished UPS
Part Number: BE550G-CN
Maximum output: 330W / 550VA
Typical backup time at half load: 13.5 minutes (165 Watts)
Typical backup time at full load: 3.3 minutes (330 Watts)
Warranty: 1 year full replacement warranty
Â
APC Back-UPS ES 550VA 330W BE550G-CN - User Manual
Â
Â
BE550G - APC Back-UPS ES Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in W |
330W |
||||
|
Rated Power in VA |
550VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
5 ft (1.52 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.46 in (8.8 cm) |
|
Width |
7.09 in (18 cm) |
|
Depth |
11.89 in (30.2 cm) |
|
Net Weight |
12.13 lb(US) (5.5 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Efficiency at full load |
88 - 139 V |
Output:
|
Max Configurable Power (Watts) |
330W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Topology |
Standby |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum Configurable Power in VA |
550VA |
|
Transfer Time |
8ms typical : 12ms maximum |
Conformance:
|
Product Certifications |
California (CEC) Battery Charger |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
5 - 95 % |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Relative Humidity |
5 - 95 % |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
45 dBA
|
|
Heat Dissipation |
16 Btu/h
|
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
24 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
3 W rated |
|
Battery power in VAH |
82 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC110 |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
340 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
|
|
Let Through Voltage Rating |
330 V
|
