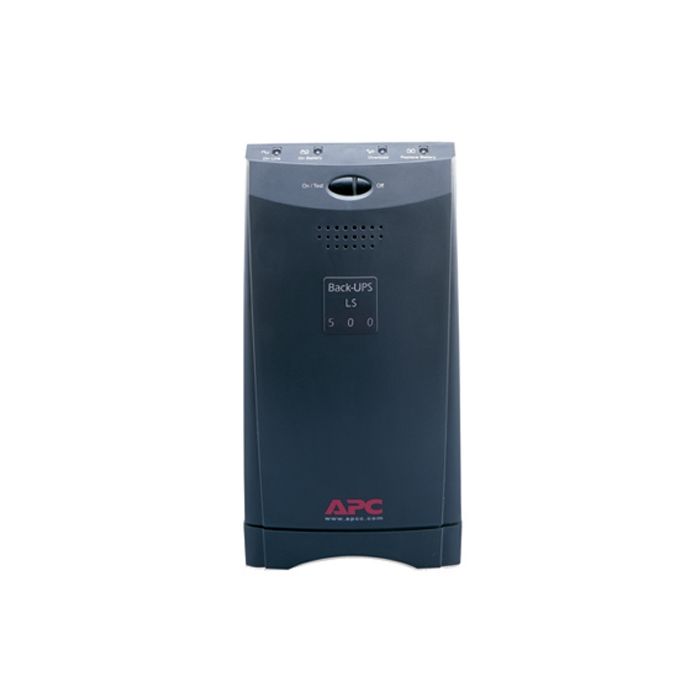

Main image Click to view image in fullscreen APC Back UPS LS 500 BP500UC

APC Back UPS LS 500 BP500UC

APC Back-UPS LS 500VA (BP500UC)
315 Watts / 500 VA
Output: (4) NEMA 5-15R (Battery Backup), (3) NEMA 5-15R (Surge Protection)
Refurbished with New Batteries
1 Year Replacement Warranty

Out of stock

Manufacturer: APC
Model Description:APC Back-UPS LS 500
Condition: New & Fresh Stock
Part Number: BP500UC
Maximum output:315 Watts / 500 VA
Battery Protected Outlets: 4
Surge Protected Outlets: 3
Typical backup timeat half load:14.6 minutes (157.5 Watts)
Typical backup time at full load: 3.9 minutes (315 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 1 Year Full Replacement Warranty, additional warranty available

APC Back UPS LS 500 BP500UC User's Manual

BP500UC Specifications:

Output:

Output power capacity

315 Watts / 500 VA

Max Configurable Power

315 Watts / 500 VA

Nominal output voltage

120V

Waveform type

Stepped Approximation to Sinewave

Output Connections

(4) NEMA 5-15R (Battery Backup)
(3) NEMA 5-15R (Surge Protection)

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 5 Hz Auto Sensing

Input Connection Type

NEMA 5-15P

Cord Length

6 feet (1.83 meters)

Input voltage range for main operations

93 - 130 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	7 hours
Replacement Battery	RBC2
RBC Quantity	1
Typical backup time at half load	14.6 minutes (157.5 Watts)
Typical backup time at full load	3.9 minutes (315 Watts)

Communications and Management:

Interface Port(s)	USB
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge:

Surge energy rating	420 Joules
Filtering	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection	RJ-11 Modem/Fax/DSL protection (four wire dual line)

Physical:

Maximum height	9.40 inches (239 mm)
Maximum width	5.00 inches (127 mm)
Maximum depth	7.90 inches (201 mm)
Net weight	15.80 lbs. (7.18 kg)
Shipping Weight	18.30 lbs. (8.32 kg)
