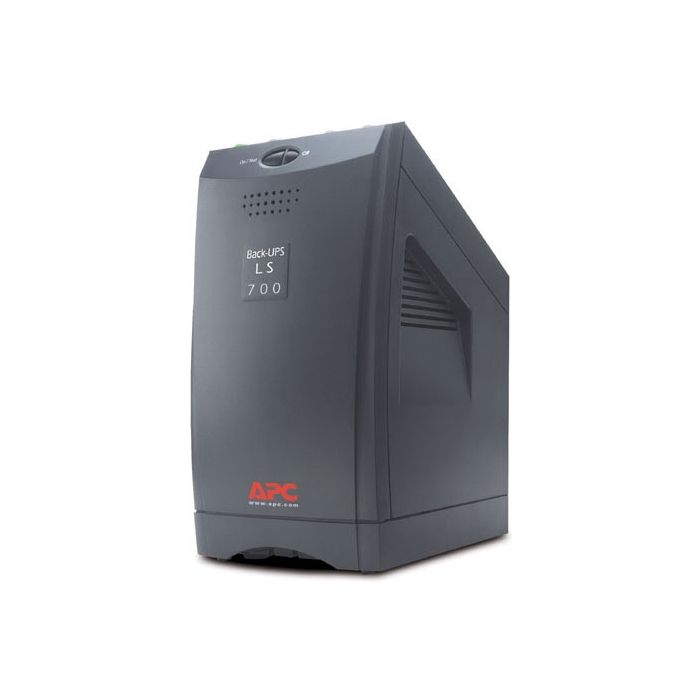

Main image Click to view image in fullscreen APC Back UPS LS 700 BP700UC

APC Back UPS LS 700 BP700UC

APC Back-UPS LS 700VA (BP700UC)
410 Watts / 700 VA
Output: (4) NEMA 5-15R (Battery Backup), (3) NEMA 5-15R (Surge Protection)
Refurbished with New Batteries
1 Year Replacement Warranty

Out of stock

Manufacturer: APC
Model Description:APC Back-UPS LS 700
Condition: New & Fresh Stock
Part Number: BP700UC
Maximum output: 410 Watts / 700 VA
Battery Protected Outlets: 4
Surge Protected Outlets: 3
Typical backup timeat half load:13.8 minutes (205 Watts)
Typical backup time at full load: 4.5 minutes (410 Watts)
Output Waveform: Stepped approximation to Sinewave
Warranty: 1 Year Full Replacement Warranty, additional warranty available

APC Back UPS LS 700 BP700UC User's Manual

BP700UC Specifications:

Output:

Output power capacity

410 Watts / 700 VA

Max Configurable Power

410 Watts / 700 VA

Nominal output voltage

120V

Waveform type

Stepped Approximation to Sinewave

Output Connections

(4) NEMA 5-15R (Battery Backup)
(3) NEMA 5-15R (Surge Protection)

Input:

Nominal input voltage

120V

Input frequency

50/60 Hz +/- 3 Hz Auto Sensing

Input Connection Type

NEMA 5-15P

Cord Length

6 feet (1.83 meters)

Input voltage range for main operations

82 - 144 V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time	10 hours
Replacement Battery	RBC17
RBC Quantity	1
Typical backup time at half load	13.8 minutes (205 Watts)
Typical backup time at full load	4.5 minutes (410 Watts)

Communications and Management:

Interface Port(s)	USB
Control panel	LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge:

Surge energy rating	510 Joules
Filtering	Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection	RJ-11 Modem/Fax/DSL protection (four wire dual line)

Physical:

Maximum height	9.40 inches (239 mm)
Maximum width	5.00 inches (127 mm)
Maximum depth	7.90 inches (201 mm)
Net weight	17.00 lbs. (7.74 kg)
Shipping Weight	19.00 lbs. (8.64 kg)
