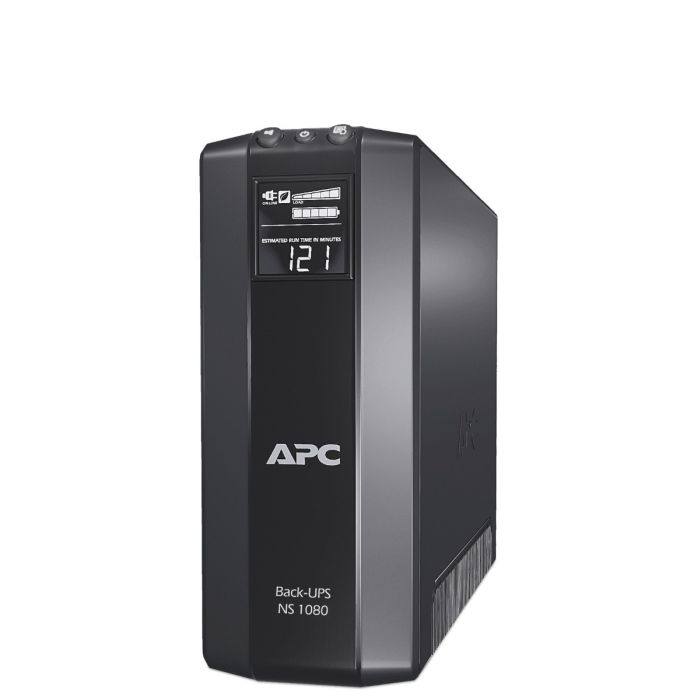

APC Back-UPS NS 1080VA 650W 120V 15A Output: (8)5-15R, BN1080G - Refurbished
APC Back-UPS NS 1080VA 650W
Model: BN1080G
Input:Â NEMA 5-15P (120V - 15A)
Output: (4) NEMA 5-15R (Surge Protection), (4) NEMA 5-15R (Battery Backup)
Line Interactive UPS - Stepped Approximation to a sine wave
New batteries, Refurbished UPS
1 Year Warranty Included
$169.99
In stock
Manufacturer: APC
Model:Â APC Power Saving Back-UPS NS 1080VA 650WÂ Tower, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BN1080G
Maximum output: 650WÂ /Â 1080VA
Typical backup time at half load: 13 minutes (325 Watts)
Typical backup time at full load: 3 minutes (650 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS NS 1080VA 650W Tower 120V BN1080G Manual
BN1080G - APC Back-UPS NS 1080VA Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Rated Power in W |
650W |
||||
|
Rated Power in VA |
1080VA |
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
9.84 in (25 cm) |
|
Width |
3.94 in (10 cm) |
|
Depth |
15.04 in (38.2 cm) |
|
Net Weight |
23.63 lb(US) (10.72 kg) |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not Rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Frequency |
60 Hz +/- 3 Hz |
|
Efficiency at full load |
88 - 139 V |
|
Maximum Input Current per Phase |
12A |
|
Switching Current Capacity |
15A |
Output:
|
Max Configurable Power (Watts) |
650W |
|
Output Frequency (sync to mains) |
60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Line Interactive |
|
Waveform Type |
Stepped approximation to a sinewave |
|
Maximum Configurable Power in VA |
1080VA |
|
Transfer Time |
8ms typical : 12ms maximum |
Conformance:
|
Product Certifications |
California (CEC) Battery Charger |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0Â - 95% |
|
Operating Altitude |
0 - 9842 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% |
|
Storage Altitude |
0 - 49212 ft (0.00 - 14999.82 m) |
|
Acoustic Level |
45 dBA |
Batteries & Runtime:
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
16 h |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
10 W rated |
|
Battery Power in VAH |
157 VAh runtime |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC123 |
|
Battery Graph Comments |
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load. |
|
Extendable Run Time |
0 |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
354 J
|
|
Filtering |
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in |
|
Data Line Protection |
Coaxial cable for CATV/SATV/modem/audio-video |
|
Let Through Voltage Rating |
300V |
