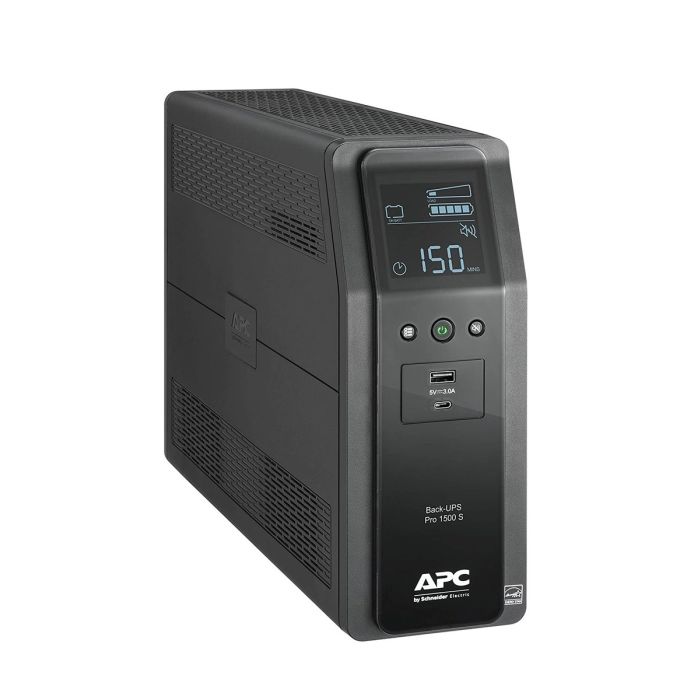

APC Back-UPS Pro BR 1500VA 900W 120V Output: (10)5-15R, BR1500MS2 - Refurbished

APC Back-UPS Pro BR 1500VA 900W LCD Tower 120V
Model: BR1500MS2
Input: NEMA 5-15P (120V - 12A)
Output: (4) NEMA 5-15R Surge Only, (6) NEMA 5-15R Battery Backup + Surge
Line-Interactive UPS - Sine Wave Output
Automatic Voltage Regulation (AVR)
Multifunction LCD Status & Control Display
USB Type-A + USB Type-C Charging Ports
New Batteries, Refurbished UPS
1 Year Warranty Included

In stock

Manufacturer: APC
Model: APC Back-UPS Pro 1500VA 900W Compact Tower, AVR, LCD, 120V
Condition: New Batteries, Refurbished UPS
Part Number: BR1500MS2
Maximum Output: 900W / 1500VA
Typical Backup Time at Half Load: 14.5 Minutes (450W)
Typical Backup Time at Full Load: 4.1 Minutes (900W)
Input: NEMA 5-15P, 120V
Output: (6) NEMA 5-15R Battery Backup + Surge, (4) NEMA 5-15R Surge Only
Topology: Line-Interactive
Output Waveform: Sine Wave
Form Factor: Compact Tower
USB Connectivity: USB Port
USB Charging: USB Type-A + USB Type-C
Display: Multifunction LCD Status and Control Console
AVR: Automatic Voltage Regulation
Warranty: 1 Year Full Replacement Warranty




APC Back-UPS Pro 1500VA 900W Tower 120V BR1500MS2 - User Manual




BR1500MS2 - APC BACK-UPS PRO 1500VA Specifications:


Main
Manufacturer APC
Model BR1500MS2
Product Family APC Back-UPS Pro
Product Type Uninterruptible Power Supply (UPS)
Product Description Back-UPS Pro 1500VA / 900W, Tower, 120V, 10 NEMA 5-15R Outlets, AVR, USB Type-A + Type-C, LCD
Rated Power 1500VA / 900W
Topology Line-Interactive
Output Waveform Sine Wave
Main Input Voltage 120V AC, Single-Phase
Form Factor Compact Tower
Automatic Voltage Regulation Yes – AVR
LCD Display Yes – Multifunction LCD
User-Replaceable Battery Yes

Input
Nominal Input Voltage 120V AC
Input Phase Single-Phase

Input Connections

NEMA 5-15P

Plug Standard NEMA 5-15P
Input Frequency 60Hz ±3Hz
Input Voltage Range 88–147V
Maximum Input Current 12A
Switching Current Capacity 15A
Number of Input Cables 1
Input Cord Length 6 ft (1.8 m)

Output
Nominal Output Voltage 120V AC
Output Phase Single-Phase
Maximum Output Power 900W
Maximum Output Capacity 1500VA
Maximum Configurable Power 900W / 1500VA
Total AC Outlets 10

Battery Backup + Surge Outlets

(6) NEMA 5-15R (Battery Backup)

Surge-Only Outlets

(4) NEMA 5-15R (Surge Protection)

Total NEMA 5-15R Outlets (10)
Output Frequency 60Hz ±3Hz, Synchronized to Mains
Output Waveform Sine Wave
UPS Topology Line-Interactive
Typical Transfer Time 8 ms
Maximum Transfer Time 10 ms

Voltage Regulation
Automatic Voltage Regulation (AVR) Yes
AVR Function Regulates utility voltage without unnecessary battery operation
Input Voltage Operating Range 88–147V
Battery Backup During Power Failure Yes
Sine Wave Battery Output Yes

Batteries & Runtime
Battery Type Lead-Acid Battery
Battery Installation Internal, Included
Battery Voltage 24V
Included Battery Modules 1
Empty Battery Slots 0
Replacement Battery APCRBC163
RBC Quantity 1
Typical Backup Time at Half Load 14.5 Minutes (450W)
Typical Backup Time at Full Load 4.1 Minutes (900W)
Typical Recharge Time 16 Hours
Battery Design Life 3–5 Years
Battery Charging Power 16W Rated
Extendable Runtime No
External Battery Pack Support No
User-Replaceable Battery Yes

Communications & Management
Control Panel Multifunction LCD Status and Control Console
LCD Interface Yes
UPS Connectivity USB Port
USB Compatible Yes
Local UPS Monitoring Yes
Computer Communication USB
Network Management Card No
SmartSlot No
Built-In Ethernet No
SNMP Network Management No

USB Charging & Connectivity
USB Charging Yes
USB Charging Types USB Type-A + USB Type-C
USB Type-A Yes
USB Type-C Yes
USB Communication Port Yes

User Interface, Alerts & Controls
Display Type LCD
Control Panel Multifunction LCD Status and Control Console
UPS Status Monitoring Yes
Battery Status Monitoring Yes
Load Status Monitoring Yes
On-Battery Alarm Yes
Low-Battery Alarm Yes – Distinctive Low-Battery Alarm
Overload Alarm Yes – Continuous Tone
Audible Alarms Yes

Surge Protection & Filtering
Surge Energy Rating 1080 Joules
Noise Filtering Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through 5%
Clamping Response Time Instantaneous
Data Line Protection Coaxial Cable for CATV / SATV / Modem / Audio-Video
Surge-Only Outlets (4) NEMA 5-15R
Battery + Surge Outlets (6) NEMA 5-15R

Physical
Form Factor Compact Tower
Mounting Mode Tower
Rack Mountable No
Two-Post Mountable No
Mounting Preference No Preference
Color Black Aluminium
Height 10.2 in (260 mm)
Width 3.9 in (100 mm)
Depth 14.5 in (368 mm)
Net Weight 27.6 lb (12.5 kg)
Power Cord Length 6 ft (1.8 m)

Environmental
Operating Temperature 32–104°F (0–40°C)
Operating Relative Humidity 0–95% Non-Condensing
Operating Altitude 0–3,000 ft
Storage Temperature 5–104°F (-15–40°C)
Storage Relative Humidity 0–95% Non-Condensing
Storage Altitude 0–5,000 ft (0–1,524 m)
Acoustic Level 45 dBA

General
Product Range Back-UPS Pro
Redundant No
Power Module Filled Slots 0
Power Module Free Slots 0

Conformance
ENERGY STAR ENERGY STAR V2.0 (USA)
NOM Certified
TUV TUV C-US Certified

Packaging
Package Quantity 1
Package Height 14.12 in (35.87 cm)
Package Width 19.0 in (48.2 cm)
Package Length 8.8 in (22.3 cm)
Package Weight 31.3 lb (14.2 kg)

Condition & Warranty
Condition New Batteries, Refurbished UPS
Warranty 1 Year Full Replacement Warranty
