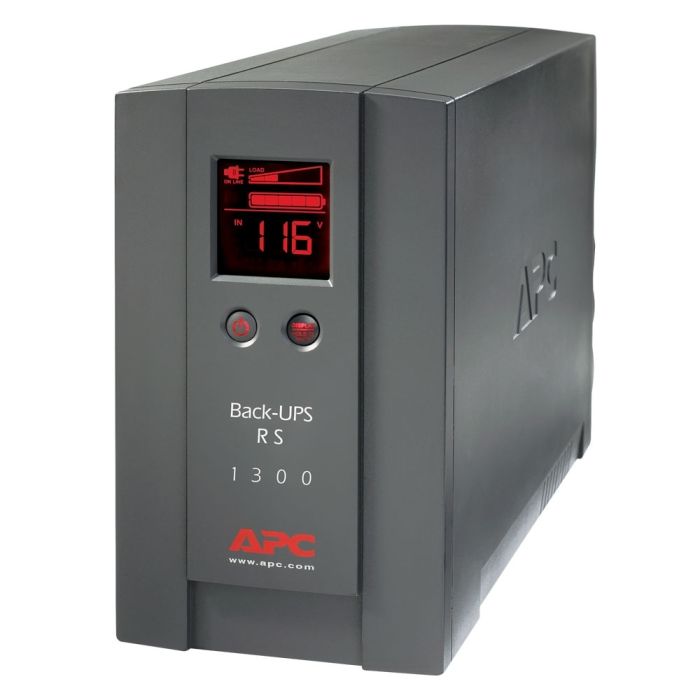

APC Back-UPS RS 1300VA 780W LCD 120V BR1300LCD - Refurbished
APC Back-UPS RS 1300VA 780W
Model: BR1300LCD
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery & Surge), (2) NEMA 5-15R (Surge)
Line Interactive UPS - Stepped Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$149.99
Back Order
Manufacturer: APC
Model: APC Back-UPS RS 1300VA 780W 120V
Condition: New batteries, refurbished UPS
Part Number: BR1300LCD
Maximum output: 780W / 1300VA
Typical backup time at half load: 18.4 minutes (390 Watts)
Typical backup time at full load: 6.4 minutes (780 Watts)
Warranty: 1 year full replacement warranty
APC Back-UPS RS 1300VA 780W BR1300LCD Manual
BR1300LCD - APC Back-UPS RS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Rated Power in W |
780W |
||||
|
Rated Power in VA |
1300VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Charcoal |
|
Height |
22.2 cm |
|
Width |
13.3 cm |
|
Depth |
35.6 cm |
|
Net Weight |
13.5 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
Two post mountable |
0 |
|
USB Compatible |
No |
Input:
|
Network Frequency |
60 Hz +/- 3 Hz |
|
Input Voltage Limits |
88 - 139V |
|
Maximum Input Current |
12 A |
|
Switching Current Capacity |
15 A |
Output:
|
Maximum Configurable Power in W |
780W |
|
Output Frequency |
60 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Line interactive |
|
Wave Type |
Stepped approximation to a sinewave |
|
Maximum Output Current |
12 A |
|
Maximum Configurable Power in VA |
1300VA |
|
Transfer Time |
6 ms typical : 10 ms maximum |
Conformance:
|
Product Certifications |
NOM |
Environmental:
|
Ambient Air Temperature for Operation |
0 - 40 °C |
|
Relative Humidity |
0 - 95 % |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
-15 - 45 °C |
|
Storage Relative Humidity |
0 - 95 % |
|
Storage Altitude |
0.00 - 15240.00 m |
|
Acoustic Level |
45 dBA
|
Batteries & Runtime:
|
Battery Recharge Time |
16 h |
|
Number of battery replacement quantity |
1 |
|
Battery Charger Power |
12 W rated |
|
Battery Power in VAH |
197 VAh runtime |
|
Battery Life |
4 - 6 year(s) |
|
Replacement Battery |
APCRBC109 |
|
Extended Runtime |
0 |
Communications & Management:
|
Control Panel |
Multifunction LCD status and control console |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering:
|
Surge Energy Rating |
340 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
Let Through Voltage Rating |
300V
|
