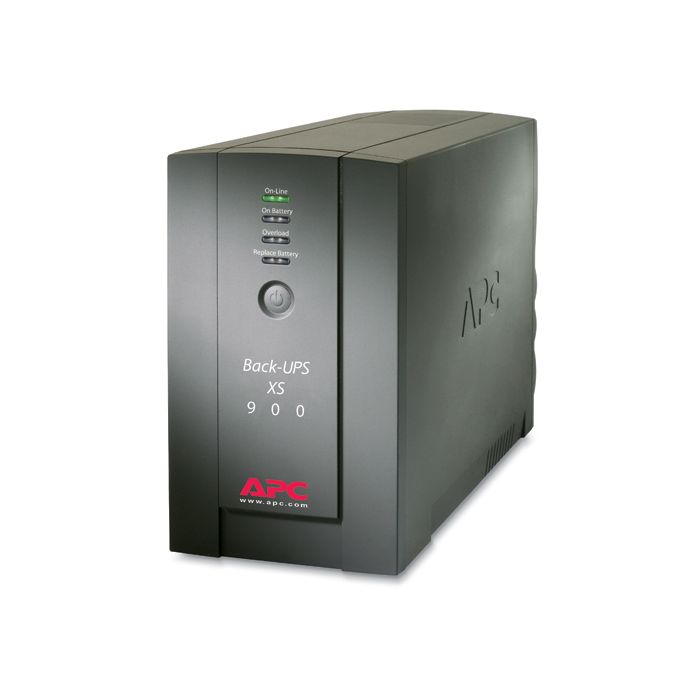

Main image Click to view image in fullscreen APC Back-UPS XS 900VA BX900R

APC Back-UPS XS 900VA BX900R

APC Back-UPS XS 900VA (BX900R)
540W / 900VA
Output: (2) NEMA 5-15R Surge, (6) NEMA 5-15R Battery
Refurbished with New Batteries
1 Year Replacement Warranty

Out of stock

Manufacturer: APC
Model: APC Back-UPS XS 900VA BX900R
Condition: Refurbished with New Batteries
Part Number: BX900R
Warranty: 1 Year Full Replacement Warranty, additional warranty available

The APC Back UPS XS 900VA BX900R is fully refurbished and comes with fresh new batteries. The APC Back-UPS XS 900VA is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.

BX900R Specifications

Output:

Output Power Capacity

540 Watts / 900 VA

Max Configurable Power

540 Watts / 900 VA

Nominal Output Voltage

120V

Topology

Standby

Waveform Type

Stepped approximation to a sinewave

Output Connections

(6) NEMA 5-15R (Battery Backup)
(2) NEMA 5-15R (Surge Protection)

Input:

Nominal Input Voltage

120V

Input Frequency

60 Hz +/- 3 Hz

Input Connections

NEMA 5-15P

Cord Length

6 feet (1.83 meters)

Input voltage range for main operations

88 - 139V

Batteries and Runtime:

Battery Type

Maintenance-free sealed

Lead-Acid battery with suspended

electrolyte : leakproof

Typical recharge time

18 hour(s)

Replacement Battery

RBC5

Communications and Management:

Control panel

LED status display with On Line :

On Battery : Replace Battery

and Overload indicators

Audible Alarm

Alarm when on battery :

distinctive low battery alarm :

overload continuous tone alarm

Surge Protection and Filtering:

Surge energy rating

459 Joules

Data Line Protection

RJ-45 Modem/Fax protection

(two wire single line),

Co-axial Video / Cable protection

Physical:

Maximum Height	8.75 inches (222 mm)
Maximum Width	5.25 inches (133 mm)
Maximum Depth	14.00inches (356 mm)
Net Weight	27.50 lbs. (12.50 kg)

Environmental:

Operating Environment	32 - 104 °F (0 - 40 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	23 - 113 °F (-5 - 45 °C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit	45.00 dBA
