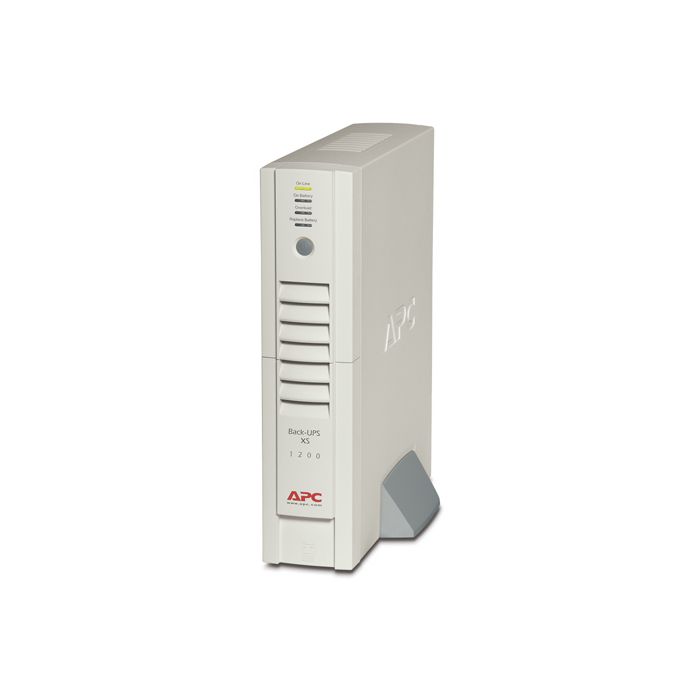

APC Back-UPS XS 1200VA 120V BX1200-CN
APC Back-UPS XS 1200VA 120V (BX1200-CN)
780W / 1200VA
Output: (2) NEMA 5-15R Surge, (6) NEMA 5-15R Battery
Refurbished with New Batteries
1 Year Replacement Warranty
$109.99
In stock
Manufacturer: APC
Model: APC Back-UPS XS 1200VA 120V BX1200-CN
Condition: Refurbished with New Batteries
Part Number: BX1200-CN
Warranty: 1 Year Full Replacement Warranty, additional warranty available
The APC Back UPS XS 1200VA 120V BX1200-CN is fully refurbished and comes with fresh new batteries. The APC Back-UPS XS 1200VA 120V is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
BX1200-CN Specifications
Output:
|
Output Power Capacity |
780 Watts / 1200 VA |
||||
|
Max Configurable Power |
780 Watts / 1200 VA |
||||
|
Nominal Output Voltage |
120V |
||||
|
Topology |
Line Interactive |
||||
|
Output Connections |
|
Input:
|
Nominal Input Voltage |
120V |
||
|
Input Frequency |
47 - 63 Hz |
||
|
Input Connections |
|
||
|
Cord Length |
6 feet (1.83 meters) |
||
|
Input voltage range for main operations |
88 - 148V |
Batteries and Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
15 hour(s) |
|
Replacement Battery |
RBC32 |
Communications and Management:
|
Interface Port(s) |
USB |
|
Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge energy rating |
420 Joules |
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
|
Data Line Protection |
RJ-11 Modem/Fax/DSL protection (two wire single line) |
Physical:
|
Maximum Height |
14.60 inches (371 mm) |
|
Maximum Width |
3.40 inches (86 mm) |
|
Maximum Depth |
13.10 inches (333 mm) |
|
Net Weight |
22.00 lbs. (10.00 kg) |
Environmental:
|
Operating Environment |
32 - 104 °F (0 - 40 °C) |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0-10000 feet (0-3000 meters) |
|
Storage Temperature |
23 - 113 °F (-5 - 45 °C) |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0-50000 feet (0-15000 meters) |
|
Audible noise at 1 meter from surface of unit |
45.00 dBA |
