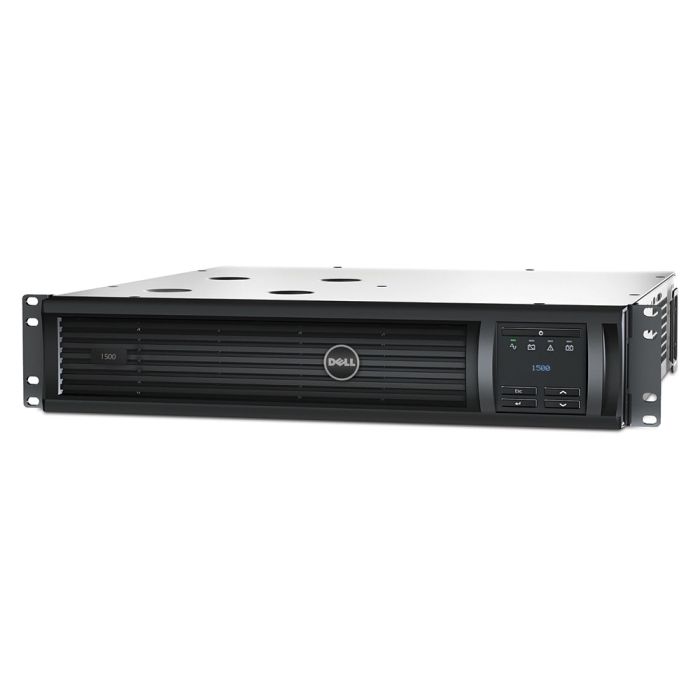

APC Dell Smart-UPS 1500VA 1000W LCD RM 2U 120V DLT1500RM2U - Refurbished
APC Dell Smart-UPS 1500VA 1000W LCD RM 2U
Model: DLT1500RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$399.99
Back Order
Manufacturer: APC
Model: APC Dell Smart-UPS 1500VA 1000W, LCD, RM, 2U, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: DLT1500RM2U
Maximum output: 1000W / 1500VA
Typical backup time at half load: 25.5 minutes (500 Watts)
Typical backup time at full load: 7.9 minutes (1000 Watts)
Warranty: 1 year full replacement warranty
APC Dell Smart-UPS 1500VA 1000W 120V DLT1500RM2U Manual
DLT1500RM2U - APC Dell Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1000W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of rack unit |
2U |
||
|
Cable Length |
2.44 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
8.9 cm |
|
Width |
43.2 cm |
|
Depth |
45.7 cm |
|
Net Weight |
28.64 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
75 - 154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1440VA |
|
Maximum Configurable Power in W |
1000W |
|
Transfer Time |
4 ms typical : 8 ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
46 dBA
|
|
Heat Dissipation |
90 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
4 - 6 years |
|
Replacement Battery |
APCRBC159 |
|
Battery Power in VAH |
432 VAh runtime |
|
Battery Charger Power |
144 W rated |
Communications & Management:
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Control Panel |
Multifunction LCD status and control console |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
Surge Protection and Filtering:
|
Surge Energy Rate |
459 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
