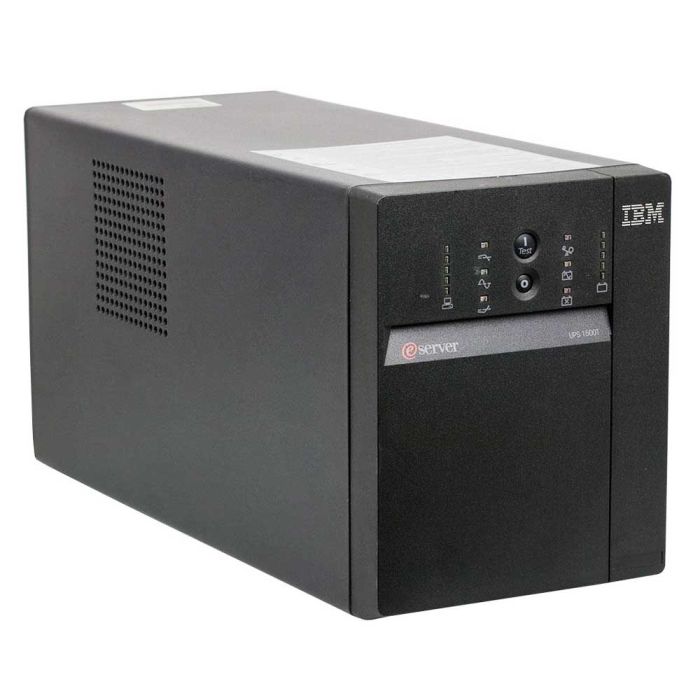

Main image Click to view image in fullscreen Refurbished APC SMART-UPS IBM 1500VA 120V 1500TLV

APC IBM Smart-UPS 1500VA 1050W 120V 1500TLV - Refurbished

APC IBM Smart-UPS 1500VA 1050W 1500TLV
Model: 1500TLV
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Out of stock

Manufacturer: APC
Model: APC IBM Smart-UPS 1500VA 1050W 120V, New Batteries, Refurbished UPS
Condition: New batteries, refurbished UPS
Part Number: 1500TLV
Maximum output: 1050W / 1500VA
Typical backup time at half load: 23.9 minutes (525 Watts)
Typical backup time at full load: 6.7 minutes (1050 Watts)
Warranty: 1 year full replacement warranty

APC IBM Smart-UPS 1500VA 1050W 1500TLV Manual

1500TLV - APC IBM Smart-UPS 1500VA 1050W Specifications:

Output:

Output Power Capacity

1050W / 1500VA

Max Configurable Power (Watts)

1050W / 1500VA

Nominal Output Voltage

120V

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47-53Hz for 50Hz nominal,
57-63Hz for 60Hz nominal

Crest Factor

up to 5 : 1

Topology

Line Interactive

Waveform Type

Sinewave

Output Connections

(8) NEMA 5-15R
(Battery Backup)

Input:

Nominal Input Voltage

120V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

NEMA 5-15P

Cord Length

6ft (1.83meters)

Input voltage range for main operations

82 - 144V

Input voltage adjustable range for mains operation

75 - 154V

Batteries and Runtime:

Battery type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement battery cartridge	RBC7
RBC™ Quantity	1

Communications and Management:

Interface Port(s)	DB-9 RS-232 , SmartSlot , USB
Available Smart Slot Interface Quantity	1
Control Panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)	Optional

Surge Protection and Filtering:

Surge energy rating	459 Joules
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical:

Maximum Height	9 inches (21.59cm)
Maximum Width	7 inches (17.02cm)
Maximum Depth	17 inches (43.94cm)
Net Weight	53 lbs. (24.09 kg)
Shipping Weight	58 lbs. (26.36 kg)
Shipping Height	15 inches (38.10cm)
