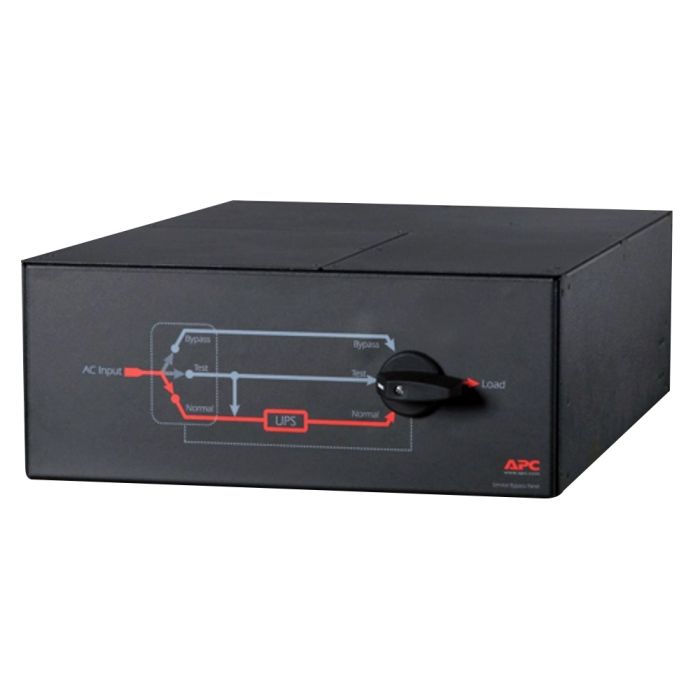

APC Service Bypass Panel 208V - 240V SBP16KP Hardwire Input / Output - Refurbished

APC Service Bypass Panel 200V/208V/240V 100A
Model: SBP16KP
Hardwire Input/Output
Compatible with Select APC Systems
1 Year Warranty

Extended Warranty

1 Year Included

2 Year + $160.00

3 Year + $280.00

Back Order

Quantity

Manufacturer: APC
Model Description: Service Bypass Panel 208V - 240V
Condition: Refurbished
Part Number: SBP16KP
Warranty: 1 Year Full Replacement Warranty

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output.

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

APC Service Bypass Panel 208V-240V SBP16KP User's Manual

Output:

Nominal Output Voltage

120V, 200V, 208V, 230V, 240V

Other Output Voltages

220, 240

Overload Protection

Yes

Maximum Total Current Draw

100

Output Connections

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(1) Hard Wire 3-wire (2PH + G) (Battery Backup)

Input:

Nominal Input Voltage	200V, 208V, 230V, 480V 3PH
Input frequency	50/60 Hz
Input Connections	Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
Acceptable Input Voltage	200-240VAC
Number of Power Cords	1
Load Power Factor Range	0 to 1
Load Capacity	20000VA
Maximum Input Current	100A
Maximum Line Current	100A

Physical:

Maximum Height	7.0 inches (178mm, 17.8cm)
Maximum Width	17.0 inches (432mm, 43.2cm)
Maximum Depth	26.0 inches (660mm, 66.0cm)
Rack Height	4U
Net Weight	47.0 lbs. (21.36 kg)
Shipping Weight	69.0 lbs. (31.36 kg)
Shipping Height	12.0 inches (305mm, 30.5cm)
Shipping Width	24.0 inches (610mm, 61.0cm)
Shipping Depth	39.0 inches (991mm, 99.1cm)
Color	Black
