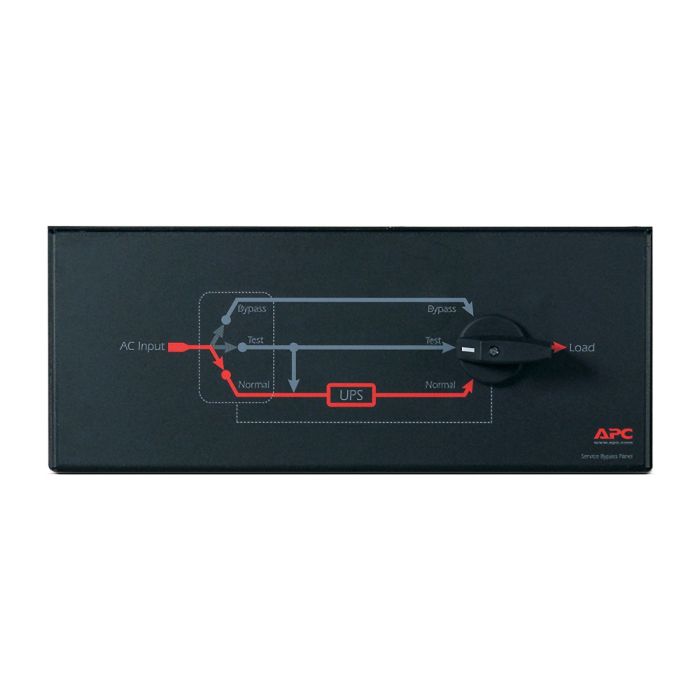

APC Service Bypass Panel 20kVA 208V/240V 100A Output: (1)L14-30R (3)L5-20R, SBP16KRMP4U-HW - Refurbished
APC 100A Maintenance Service Bypass Panel 200/208/240V RM 4U
Model: SBP16KRMP4U-HW
Input: Hardwire 100A (3-Wire 2P+E / 4-Wire 2P+N+E)
Output: (1) NEMA L14-30R, (3) NEMA L5-20R, Hardwire Output (3-Wire 2P+E / 4-Wire 2P+N+E)
Load Capacity: 20,000VA (20kVA)
Rackmount 4U Maintenance Bypass Panel
Refurbished Maintenance Bypass Panel
1 Year Full Replacement Warranty Included
$999.99
In stock
Manufacturer: APC
Model Description: APC 100A Maintenance Bypass Panel 200/208/240V Rackmount 4U
Condition: Refurbished
Part Number: SBP16KRMP4U-HW
Warranty: 1 Year Full Replacement Warranty Â
Description: The APC SBP16KRMP4U-HW is a 100A rackmount maintenance bypass panel designed for APC Smart-UPS and Symmetra systems, allowing connected equipment to remain powered during UPS maintenance or replacement without interrupting critical loads. It features 100A hardwire input and output connections, plus (1) NEMA L14-30R and (3) NEMA L5-20R convenience outlets, supports 200V, 208V, and 240V applications, and is housed in a 4U rackmount enclosure. Refurbished and backed by a 1 Year Full Replacement Warranty.
APC Service Bypass Panel 208V-240V SBP16KRMP4U-HW User's Manual
Â
Â
SBP16KRMP4U-HW - APC Maintenance Bypass Panel Specifications:Â
| Key Features | Â |
| Product Type | Maintenance Bypass Panel |
| Form Factor | Rackmount |
| Rack Height | 4U |
| Rated Capacity | 20,000VA (20kVA) |
| Maximum Current | 100A |
| Supported Voltage | 200V / 208V / 240V |
| Input Type | Hardwire |
| Output Type | Hardwire + Receptacles |
| UPS Compatibility | APC Smart-UPS SRT & Symmetra Systems |
| Maintenance Bypass | Yes |
| Service Without Downtime | Yes |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 200V / 208V / 240V |
| Input Connection | Hardwire |
| Input Current Rating | 100A |
| Input Phase | Single-Phase |
| Number of Input Connections | 1 |
| Â | Â |
| Output | Â |
| Nominal Output Voltage | 200V / 208V / 240V |
| Hardwire Output | (1) Hardwire (3-Wire 2PH + G / 4-Wire 2PH + N + G) |
| Output Receptacles | (1) NEMA L14-30R |
| Â | (3) NEMA L5-20R |
| Maximum Output Current | 100A |
| Bypass Switching | Manual Make-Before-Break (MBB) |
| Â | Â |
| Physical | Â |
| Color | Black |
| Rack Height | 4U |
| Height | 7.0 in (17.8 cm) |
| Width | 19.0 in (48.3 cm) |
| Depth | 26.0 in (66.0 cm) |
| Net Weight | 97.0 lbs (44 kg) |
| Mounting | Rack-Mounted |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 0-95% Non-Condensing |
| Storage Humidity | 0-95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft (3,000 m) |
| Storage Altitude | Up to 50,000 ft (15,240 m) |
| Â | Â |
| Conformance | Â |
| Product Certifications | UL, cUL |
| Compliance | RoHS |
| Condition | Refurbished |
| Warranty | 1 Year Full Replacement Warranty Included |
