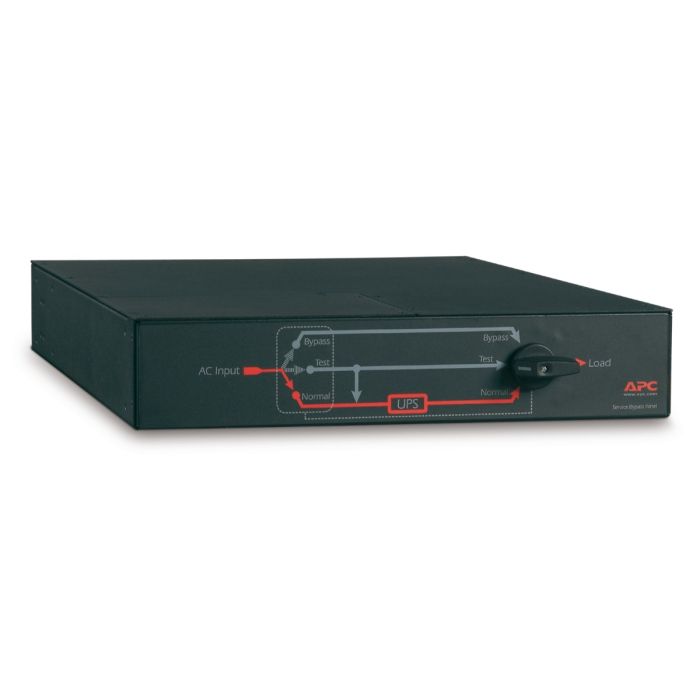

APC Service Bypass Panel 5000V 200V/208V/240V 30A RM 2U, SBP5000RMT2U - Refurbished

APC Service Bypass Panel 5000V 208V - 240V 30A
Model: SBP5000RMT2U
Bypass Input: NEMA L6-30P

UPS Input : L6-30R

Output : (2)x NEMA L6-20R, (2)x NEMA L6-30R,
Compatible with Select APC Systems
1 Year Warranty

Extended Warranty

1 Year Included

2 Year + $150.00

3 Year + $262.50

In stock

Quantity

Manufacturer: APC
Model Description: Service Bypass Panel 200V - 240V
Condition: Refurbished
Part Number: SBP5000RMT2U
Warranty: 1 Year Full Replacement Warranty

APC Service Bypass Panel- 200/208/240V; 30A; BBM; L6-30P input

Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.

APC Service Bypass Panel 208V-240V SBP5000RMT2U - User's Manual

Output:

Nominal Output Voltage

120V, 200V, 208V, 230V, 240V

Other Output Voltages

220, 240

Overload Protection

Yes

Maximum Total Current Draw

24A

Output Connections

(2) NEMA L6-20R

(2) NEMA L6-30R

Input:

Nominal Input Voltage	200V, 208V, 230V, 240V
Input frequency	50/60 Hz
Input Connections	NEMA L6-30P
UPS Input	NEMA L6-30R
Acceptable Input Voltage	200-240VAC
Number of Power Cords	1
Load capacity	5000 VA
Maximum Input Current	24A
Maximum Line Current	24A

Physical:

Maximum Height	3.50 in (8.9 cm)
Maximum Width	17.0 inches (432mm, 43.2cm)
Maximum Depth	25.98 in (66 cm)
Rack Height	2U
Net Weight	30.07 lb(US) (13.64 kg)
Color	Black

Environmental:

Ambient air temperature for operation	-4…122 °F (-20…50 °C)
Relative humidity	0…95 %
Operating altitude	0...15000 ft
Ambient air temperature for storage	-13…149 °F (-25…65 °C)
Storage Relative Humidity	0…95 %
Storage altitude	0…50000 ft (0.0000000000…15240.0000000000 m)
