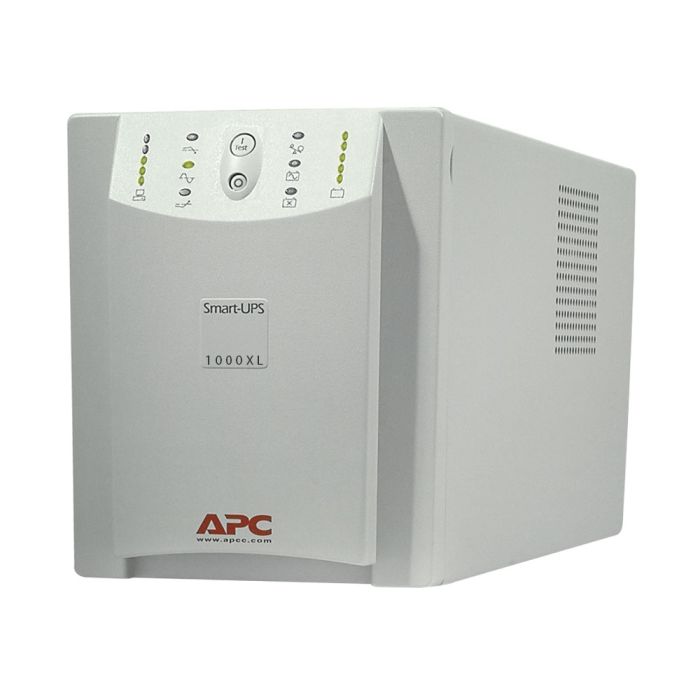

APC Smart-UPS 1000VA 670W 120V SU1000 - Refurbished
APC Smart-UPS 1000VA 670W 120V
Model: SUA3000XLT
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$189.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS 1000VA 670W 120V
Condition: New batteries, refurbished UPS
Part Number: SU1000
Maximum output: 670W / 1000VA
Typical backup time at half load: 23.7 minutes (335 Watts)
Typical backup time at full load: 8.4 minutes (670 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 670W 120V SU1000 Manual
SU1000 - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
670W |
||
|
Rated Power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
1.83 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
21.6 cm |
|
Width |
17.02 cm |
|
Depth |
43.94 cm |
|
Net Weight |
63.14 lb(US) (28.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Not rack-mountable |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Voltage Limits |
86 - 154 V adjustable |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
1000VA |
|
Maximum configurable power in W |
670W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Wave Type |
Sine wave |
|
Output Frequency |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
41 dBA
|
|
Heat Dissipation |
100 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
0 - 40 °C |
|
Ambient Air Temperature for Storage |
-15 - 45°C |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extended Runtime |
0 |
|
Number of Battery Filled Slots |
0 |
|
Number of battery free slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3- 5 years |
|
Replacement Battery |
RBC6 |
|
Battery Power in VAH |
264 VAh runtime |
|
Battery Charger Power |
88 W rated |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
320 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
