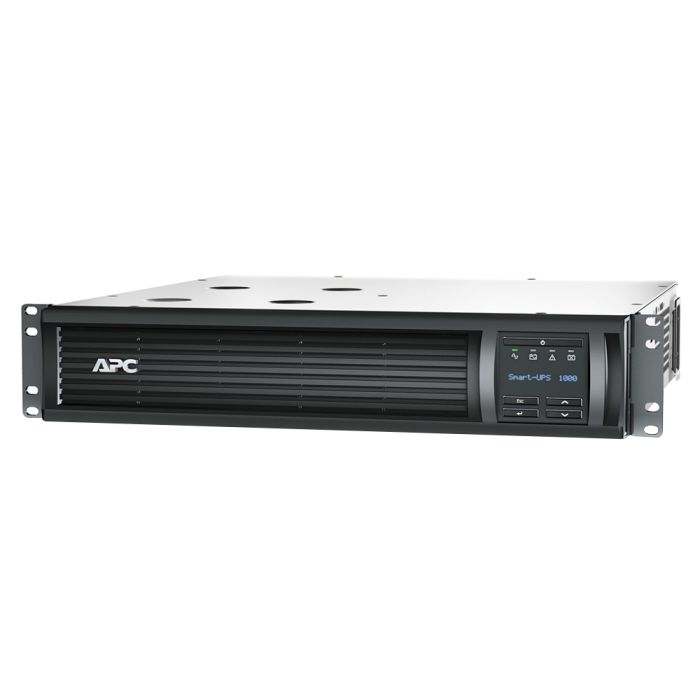

APC Smart Connect-UPS 1000VA 700W LCD RM 2U Output: (6)5-15R, SMT1000RM2UC - Refurbished

Main Input Voltage

120V

Other Input Voltage

110V
125V

Main Output Voltage

120V

Other Output Voltage

110V
125V

Rated Power in W

700W

Rated Power in VA

1000VA

Input Connection Type

Output Connection Type

Number of Rack Unit

2U

Cable Length

8 ft (2.44 m)

Number of Cables

1

Battery Type

Lead-Acid Battery

Extendable Run Time

0

Included Battery Modules

0

Battery Slots Empty

0

Typical Recharge Time

3 h

RBC Quantity

1

Battery Life

4 - 6 year(s)

Replacement Battery

APCRBC157

Battery Power in VAH

336 VAh runtime

Battery Charge Power (Watts)

112 W rated

Number of Power Module Filled Slots

0

Number of Power Module Free Slots

0

Product Web Sub-Family

Cloud-enabled monitoring

Redundant

No

Color

Black

Height

3.39 inches (86mm, 8.6cm)

Width

17.0 inches (432mm, 43.2cm)

Depth

18.78 inches (477mm, 47.7cm)

Net Weight

55.78 lbs. (25.3kg)

Mounting Location

Front

Mounting Preference

Lower

Mounting Mode

Rack-mounted

Two Post Mountable

0

USB Compatible

Yes

Efficiency at Full Load

75 - 154 V adjustable
82 - 143 V

Input Frequency

50/60 Hz +/- 3 Hz auto-sensing

Crest Factor

3 : 1

Harmonic Distortion

Less than 5%

Maximum Configurable Power in VA

1000VA

Max Configurable Power (Watts)

700W

Transfer Time

6ms typical : 10ms maximum

Topology

Line Interactive

Waveform Type

Sine Wave

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz sync to mains

Front Panel Display

Multi-function LCD status and configuration display

LCD Functions

Load status, battery status, runtime, input/output voltage, and event information

Audible Alarms

On battery, low battery, overload, and fault conditions

Alarm Configuration

User-configurable alarm delays and notifications

LED Indicators

LCD-based status indication with system alerts

Control Features

UPS configuration and status controls through front panel LCD

Transfer Time

6ms typical, 10ms maximum

Power Protection Status

Real-time monitoring of power and battery conditions

Waveform Type

Pure sine wave output

Notification System

Audible and visual system alerts

Communications & Management:

User Interface

Multi-function LCD status and control console

SmartConnect Port

Built-in cloud-enabled Ethernet monitoring

Communication Support

APC SmartConnect remote cloud monitoring

SmartSlot Expansion

1 SmartSlot available

USB Connectivity

Yes

Remote Management

Supported through APC SmartConnect portal

Network Monitoring

Real-time UPS status and event monitoring

Firmware Updates

Supported through SmartConnect platform

Alarm Notifications

Configurable alerts and event notifications

Management Features

Remote monitoring, diagnostics, and UPS status management

Product Certifications

cULus
ENERGY STAR V2.0 (USA)

Acoustic Level

Heat Dissipation

175 Btu/h

Operating Altitude

0 - 10000 ft

Ambient Air Temperature for Operation

32 - 104 °F (0 - 40 °C)

Ambient Air Temperature for Storage

5 - 113 °F (-15 - 45 °C)

Storage Altitude

0 - 50000 ft (0.00 - 15240.00 m)

Relative Humidity

0 - 95 %

Storage Relative Humidity

0 - 95 %

Surge Energy Rating

Filtering
