Description
Details
Manufacturer: APC

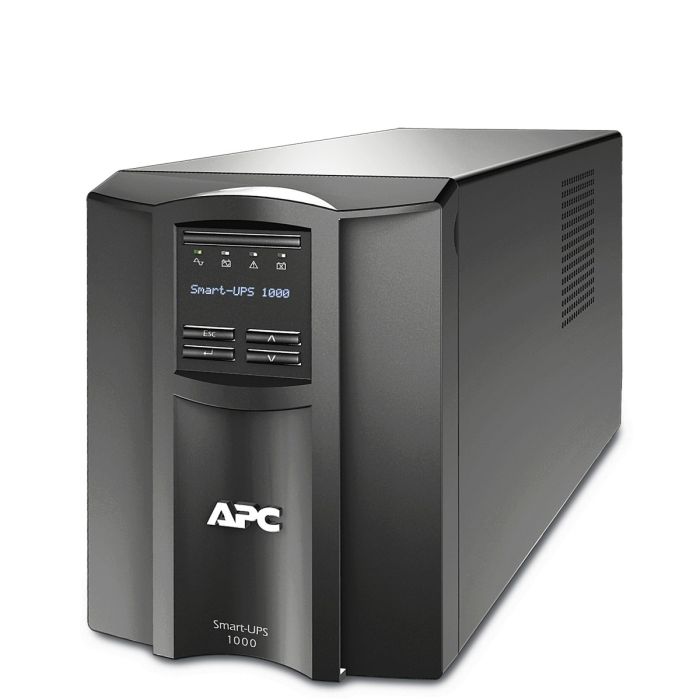

Model: APC Smart-UPS 1000VA 700W SmartConnect, LCD Tower 120V
Condition: New batteries, refurbished UPS
Part Number: SMT1000C
Maximum output: 700W / 1000VA
Typical backup time at half load: 19.3 minutes (350 Watts)
Typical backup time at full load: 5.4 minutes (700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS 1000VA 700W LCD Tower SMT1000C Manual
SMT1000C - APC Smart-UPS 1000VA 700W LCD Tower Specifications:
Main:
Main Input Voltage |
120V |
||
Other Input Voltage |
110 V |
||
Main Output Voltage |
120V |
||
Other Output Voltage |
110V |
||
Kw Rating |
700W |
||
Rated power in VA |
1000VA |
||
Input Connection Type |
|
||
Output Connection Type |
|
||
Cable Length |
6 ft (1.83 m) |
||
Number of Cables |
1 |
||
Battery Type |
Lead-Acid battery |
General:
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Product web sub-family |
Cloud-enabled monitoring |
Redundant |
No |
Physical:
Color |
Black |
Height |
8.62 in (21.9 cm) |
Width |
6.73 in (17.1 cm) |
Depth |
17.28 in (43.9 cm) |
Net Weight |
44.31 lb(US) (20.1 kg) |
Mounting Location |
Front |
Mounting Preference |
No preference |
Mounting Mode |
Not rack-mountable |
Two post mountable |
0 |
USB compatible |
Yes |
Input:
Efficiency at full load |
75-154 V adjustable |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Harmonic Distortion |
Less than 5% |
Maximum configurable power in VA |
1000VA |
Max Configurable Power (Watts) |
700W |
Transfer Time |
6ms typical : 10ms maximum |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Environmental:
Acoustic level |
41dBA |
Heat dissipation |
175 Btu/h |
Operating altitude |
0-10000ft |
Ambient Air Temperature for Operation |
32-104°F (0-40°C) |
Ambient Air Temperature for Storage |
5-113°F (-15-45 °C) |
Storage altitude |
0-50000ft (0.00-15240.00m) |
Relative Humidity |
0-95% |
Storage Relative Humidity |
0-95% |
Batteries & Runtime:
Extendable Run Time |
0
|
Included Battery Modules |
0 |
Battery Slots Empty |
0 |
Typical recharge time |
3h |
RBC Quantity |
1 |
Battery Life |
3-5 year(s) |
Replacement Battery |
RBC6 |
Battery power in VAH |
264VAh runtime |
Battery Charge Power (Watts) |
88W rated |
Communications & Management:
Control Panel |
Multi-function LCD status and control console
|
Free Slots |
1 |
Communication Port Support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
Surge Energy Rating |
680 J
|
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m |
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Tower |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 1000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
